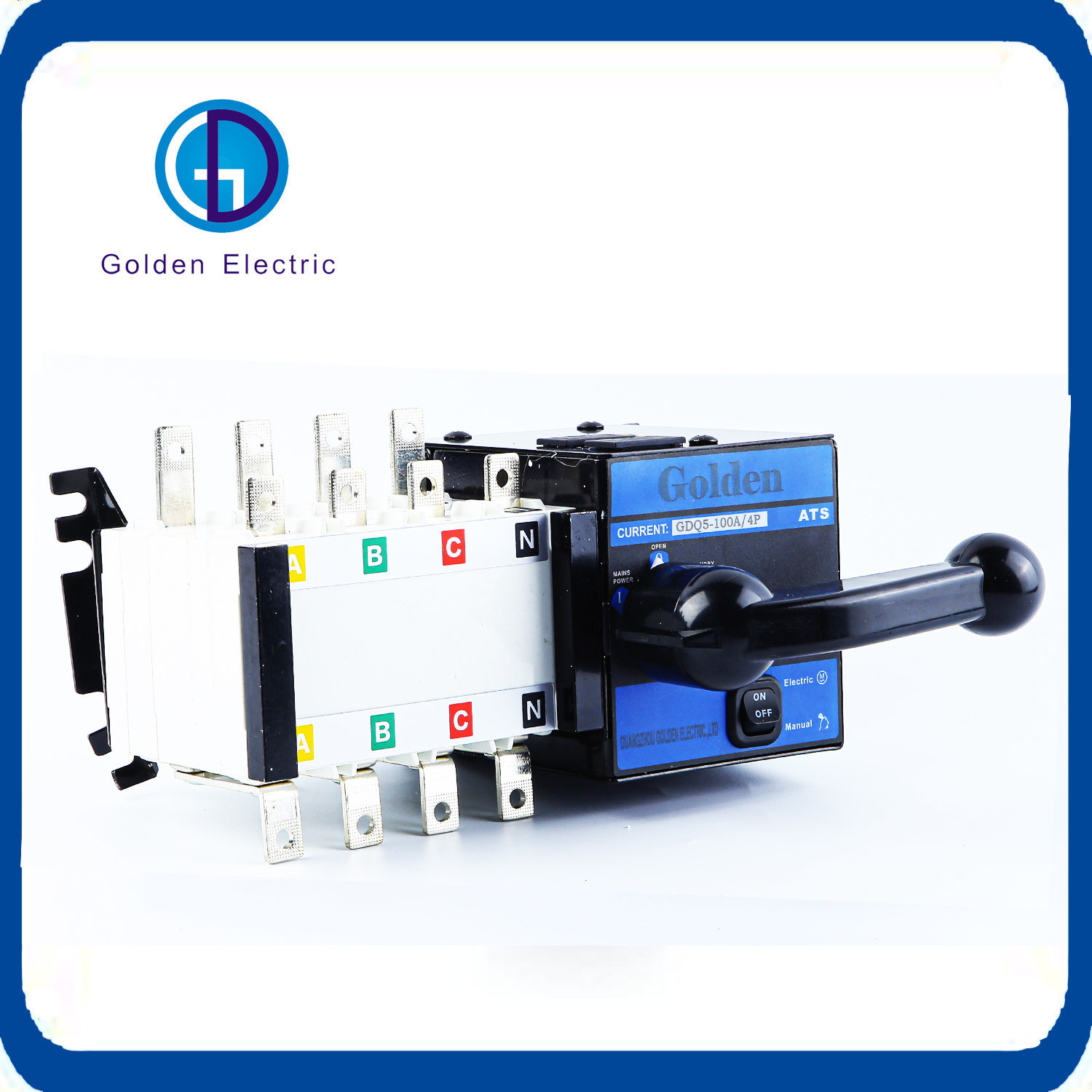

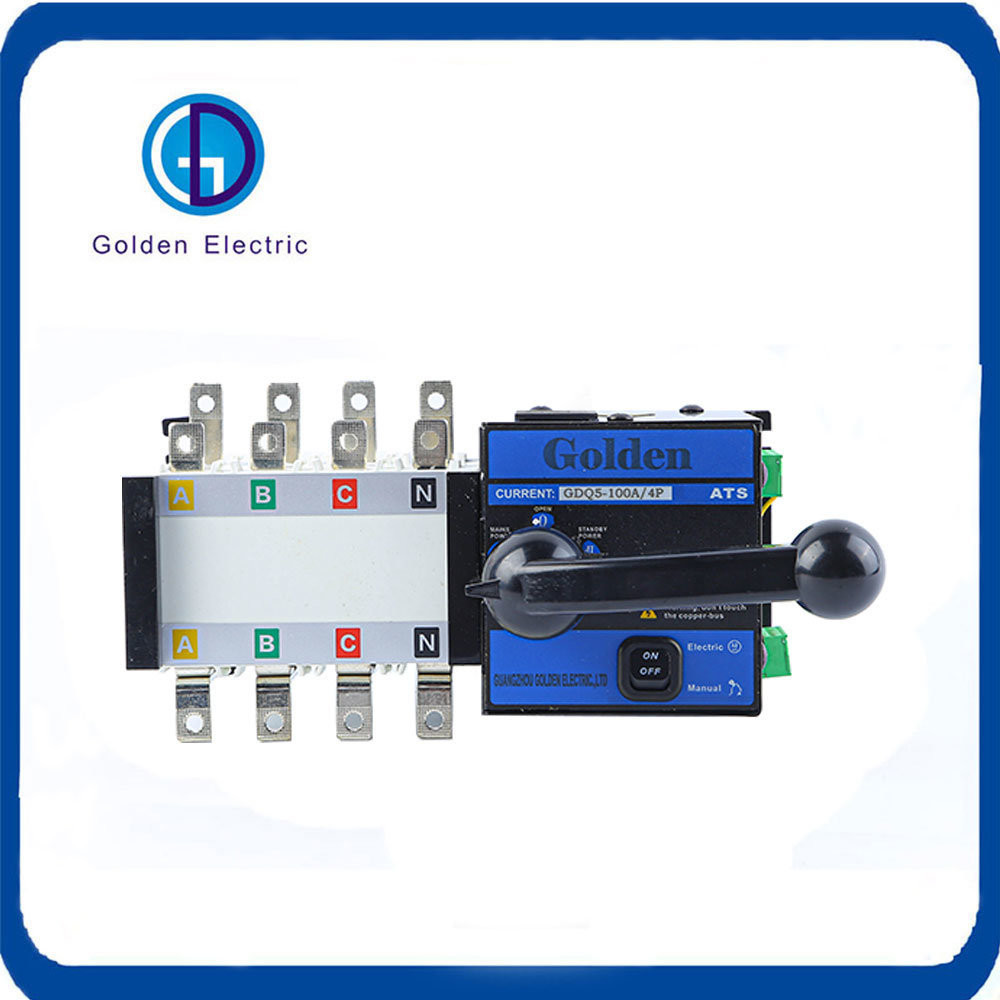

GDQ5 Dual Power Automatic Transfer Switch Series is a kind of new automatic transfer switch gathered switch and logic controller,achieve mechanic and electricity turn into a integral whole. It is suitable for using in the distribution equipment in industry and business with rated insulating voltage up to 690V, rated frequency 50Hz/60Hz, rated voltage 380V, conventional heating current up to 3200A ,supplying for switch automatically of Normal power and reserve power in power system or switch automatically and safety isolation of two sets load device etc. It can be used for hospital, shop, bank, high building, coal mine, telecommunication, iron mine, superhighway, airport, industrial flowing water line and installation etc.important situation where disallow power supply failure.
The switch can achieve full-automatic, compulsory "0", remote control, urgent manual-operation;while have lack phase examination and protection, under/over voltage examination and protection, frequency examination and protection and delay regulation, electric mechanism interlock etc.
| Item |
Specification |
PCS/CTN |
Item Size(CM) |
Carton Size(CM) |
K.W.(KG) |
N.W.(KG) |
| GDQ5-100-4P |
16-100A |
6 |
25*15*14 |
38*30*36 |
25 |
24 |
| GDQ5-160-4P |
125-160A |
4 |
45*36.5*48 |
45*36.5*48 |
25.2 |
24.2 |
| GDQ5-250-4P |
180-250A |
2 |
46.3*44.2*29.5 |
46.3*44.2*29.5 |
19.25 |
18.25 |
| GDQ5-400-4P |
315-400A |
1 |
50.5*30.5*33 |
50.5*30.5*33 |
17.85 |
16.85 |
| GDQ5-630-4P |
500-630A |
1 |
50.5*30.5*33 |
50.5*30.5*33 |
18.75 |
17.75 |
| GDQ5-1000-4P |
800-1000A |
1 |
71*40*37 |
71*40*37 |
46.5 |
44.5 |
| GDQ5-1250-4P |
1250A |
1 |
71*40*37 |
71*40*37 |
50 |
48 |
| GDQ5-1600-4P |
1600A |
1 |
71*40*37 |
71*40*37 |
55 |
53 |
| GDQ5-2000-4P |
2000A |
1 |
71*50*60 |
71*50*60 |
91 |
89 |
| GDQ5-2500-4P |
2500A |
1 |
71*50*60 |
71*50*60 |
101 |
99 |
| GDQ5-3200-4P |
3200A |
1 |
71*50*60 |
71*50*60 |
111 |
102 |
| Frame Class |
100 |
250 |
630 |
1600 |
3200 |
| Rate current In(A) |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
225 |
250 |
315 |
350 |
400 |
500 |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
2500 |
3200 |
| Rated insulation voltage(Ui) |
690V |
800V |
Rated concussion withstand
voltage(Uimp) |
8KV |
| Rated working voltage(Ue) |
AC440V |
Rated short-circuit
connection capacity |
8KA |
17KA |
26KA |
67.5KA |
Rated short-time
withstand current(lcw) |
5kA/30ms |
10kA/60ms |
12.6kA/60ms |
32kA/60ms |
| Transfer time I-II or II-I |
2.5s |
1.2s |
1.8s |
2.4s |
| Using category |
AC-33iB |
| Control voltage |
AC220V |
| Rated frequency |
Start |
20W |
325W |
355W |
440W |
600W |
| Normal |
62W |
74W |
98W |
120W |
| Weight(kg) 4Pole |
4.2 |
6.3 |
10 |
18 |
19 |
46.5 |
50 |
55 |
91 |
101 |
111 |
1)Q:How can i trust your company?
A:Golden electric is The top 10 ATS manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4) Q: Your address ?
A: Locates in Guangzhou province, China,welcome to visit us
5) Q:What's the automatic transfer switch(ATS) guarantee?
A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6) Q:What's about MOQ? Delivery time ?
A: 1pcs for ATS. Normally less than 100PCS with stock, quick support.
7) Q: What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
