Product Description
Dual Power Automatic Transfer Switch Series is a kind of new automatic transfer switch gathered switch and logic controller,achieve mechanic and electricity turn into a integral whole. It is suitable for using in the distribution equipment in industry and business with rated insulating voltage up to 690V, rated frequency 50Hz/60Hz, rated voltage 380V, conventional heating current up to 3200A ,supplying for switch automatically of Normal power and reserve power in power system or switch automatically and safety isolation of two sets load device etc. It can be used for hospital, shop, bank, high building, coal mine, telecommunication, iron mine, superhighway, airport, industrial flowing water line and installation etc.important situation where disallow power supply failure.
The switch can achieve full-automatic, compulsory "0", remote control, urgent manual-operation;while have lack phase examination and protection, under/over voltage examination and protection, frequency examination and protection and delay regulation, electric mechanism interlock etc.

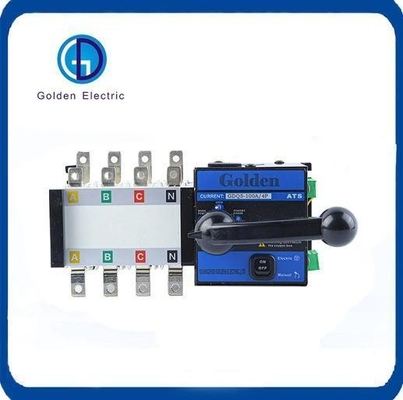

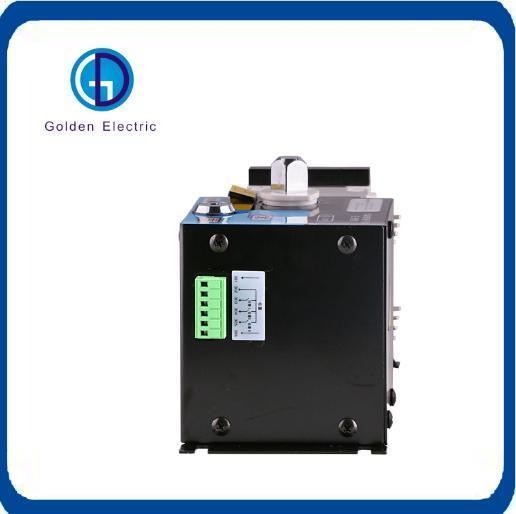

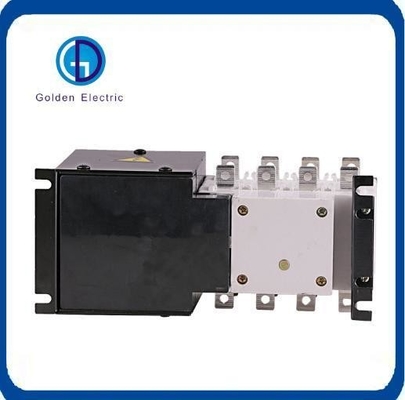

Detailed Photos
Product Parameters
| Item |
Specification |
PCS/CTN |
Item Size(CM) |
Carton Size(CM) |
K.W.(KG) |
N.W.(KG) |
| GDQ5-100-4P |
16-100A |
6 |
25*15*14 |
38*30*36 |
25 |
24 |
| GDQ5-160-4P |
125-160A |
4 |
45*36.5*48 |
45*36.5*48 |
25.2 |
24.2 |
| GDQ5-250-4P |
180-250A |
2 |
46.3*44.2*29.5 |
46.3*44.2*29.5 |
19.25 |
18.25 |
| GDQ5-400-4P |
315-400A |
1 |
50.5*30.5*33 |
50.5*30.5*33 |
17.85 |
16.85 |
| GDQ5-630-4P |
500-630A |
1 |
50.5*30.5*33 |
50.5*30.5*33 |
18.75 |
17.75 |
| GDQ5-1000-4P |
800-1000A |
1 |
71*40*37 |
71*40*37 |
46.5 |
44.5 |
| GDQ5-1250-4P |
1250A |
1 |
71*40*37 |
71*40*37 |
50 |
48 |
| GDQ5-1600-4P |
1600A |
1 |
71*40*37 |
71*40*37 |
55 |
53 |
| GDQ5-2000-4P |
2000A |
1 |
71*50*60 |
71*50*60 |
91 |
89 |
| GDQ5-2500-4P |
2500A |
1 |
71*50*60 |
71*50*60 |
101 |
99 |
| GDQ5-3200-4P |
3200A |
1 |
71*50*60 |
71*50*60 |
111 |
102 |
| Model Name |
GDQ5 |
|
| Frame |
100A |
160A |
250A |
400A |
630A |
| Rated current |
1A~100A |
125A~160A |
200A~250A |
300~400A |
500~630A |
| Rated Impulse withstand voltage |
500V |
500V |
500V |
500V |
500V |
| Operation Voltage |
187~257V normally 220V/230V 50/60HZ |
| Changeover time |
I-O-II(S) |
0.5 |
1 |
1.1 |
1.2 |
1.2 |
| I-O or II-O(S) |
0.3 |
0.6 |
0.7 |
0.8 |
0.8 |
| Model Name |
GDQ5 |
|
| Frame |
1000A |
1250A |
1600A |
2000A |
2500A |
3200A |
| Rated current |
800~1000A |
1250A |
1600A |
2000A |
2500A |
3200A |
| Rated Impulse withstand voltage |
1000V |
1000V |
1000V |
1000V |
1000V |
1000V |
| Operation Voltage |
187~257V normally 220V/230V 50/60HZ |
|
| Changeover time |
I-O-II(S) |
1.2 |
1.2 |
1.2 |
2.4 |
2.4 |
2.4 |
| I-O or II-O(S) |
0.8 |
0.8 |
0.8 |
|
|
|
| 1, Double complex contact, horizontal and vertical type frame basically, it have come to "Zero" arc(no arc chute); |
2, Reliable machine interlock and elecric interlock, the executive union parts adopt independency overload disconnect switch,
it makes more reliable and safety. |
| 3, "zero" techinique, can force to set"zero" under emergency situation(break off two ways power supply at the same time).Meet the requirement of the fire protection linkage. |
4, Operate overload disconnect switch change over adopt singless electromotor drive, switch over smooth and reliable, no noise,
little wallop |
| 5, Operate machine drive motor use only under the executive overload disconnect switch change over instanecus current across, outstanding energy saying. |
6, Perform overload disconnect switch with mechanism interlock device. It ensure the common use, standby power working
reliable and not interference. |
| 7, Distinct on and off position indicator, padlock function et.c safe realize the isolator between electric power and overload |
| 8, High security, high automatization, high retiablility, use life more than 8000times |
Provide you with many options
