Product Description
GDQ3 series automatic transfer switch is designed and developed by our company according to universal customers' requirements. This switch uses DZ47 miniature circuit breaker (improved type) as the actuating element, is equipped with the new type control mechanism. With the smallest volume among the similar products, it also has the functions like the fire control and power generation, and, it is specially used in the important power supply locations where the power failure is not allowed.Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection,hospital,bank,building, etc, where doesn't allow power off.

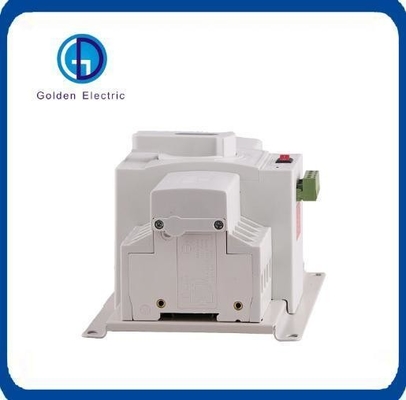

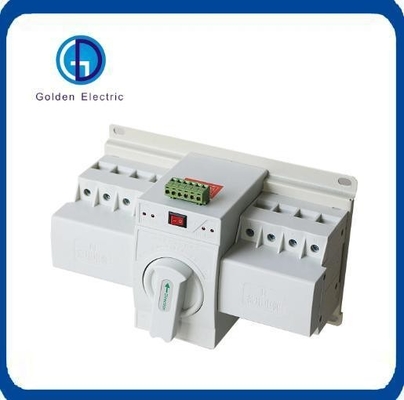

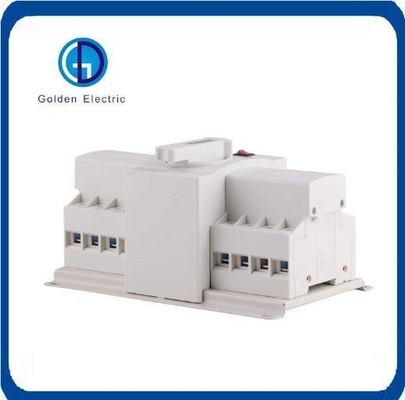

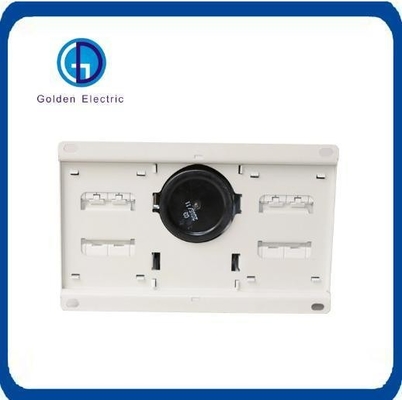

Detailed Photos
Product Parameters
| Model |
GDQ3 |
| Product Name |
Dual Power Automatic Transfer Switch |
| Pole |
2p/3p/4p |
| Rated Current |
63A |
| Rated Voltage |
230V |
| Frequency |
50Hz |
| Current(optional) |
1A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Using the categories |
AC-33A |
| Suitable for |
shift of two-way power, transfer of load equipments and safe isolation |
| Level |
CB |
| Standard |
GB/T14048.11 |
| Model |
Carton size(m) |
Each Carton GW(kg) |
Each Carton NW(kg) |
Each Carton (PCS) |
| L |
W |
H |
| GDQ3 ATS 4P/220V |
0.49 |
0.31 |
0.28 |
17.53 |
16.00 |
8 |
| GDQ3 ATS 3P/220V |
0.49 |
0.31 |
0.28 |
16.00 |
15.20 |
8 |
| GDQ3 ATS 2P/220V |
0.4 |
0.300 |
0.260 |
14.50 |
13.50 |
8 |
Provide you with many options
Company Profile
- Golden Electric Co.,Ltd ,was foundad in 2017, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , circuit breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Solar product etc.
- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.
- Golden is always striving hard to provide the best services and competitive price to all customers.
FAQ
1) Q:How can i trust your company?
A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
A: Golden electric is factory for Junction Box,Isolator Switch,Automatic transfer switch,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3) Q: After Sales Service?
A: We will provide the best After-sales Service
4) Q: What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order.
5) Q: Your address ?
A: Locates in Guangzhou province, China,welcome to visit us
Any more query please contact with us, thank you!
