Name: Easy To Install 2 Pins Solar Cable Connectors For 1000VDC 30A Solar Panel Mounting
Brand: Guangzhou Golden Electric Co., Ltd.
SKU: PV004-P
Price: 749.20 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Solar Panel Connector

Rated Voltage: 1000V

Rated Current: 30A

Shape: Round

Protection Degree: IP67

Connector Type: Adaptor

Warranty: 2 Years

Contact Resistance: Below 5m

Name: Solar Cable Connector

Transport Package: Standard Export Carton

Specification: 2.5/4/6 14/12/10AWG

Trademark: Golden Or Netural, Or Customer Brand

Origin: China

HS Code: 8537209000

Supply Ability: 20000PCS/Month

Gender: Male And Female

Pin: 2 Pins

Application: Solar PV System

Certification: YUV, MSDS, CE, ISO 9001, RoHS

Terminal Material: Copper

Interface Type: DC/DC

Customization: Available | Customized Request

Highlight:

Easy To Install Solar Cable Connectors

2 Pins Solar Cable Connectors

1000VDC MC4 Branch Connector

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Model Number: PV004-P

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

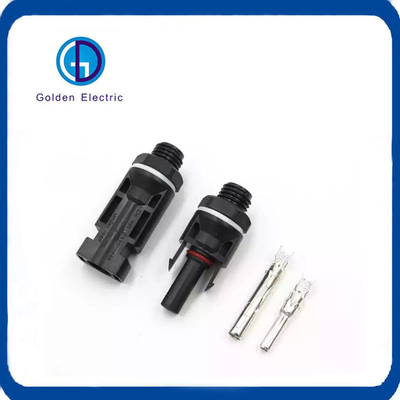

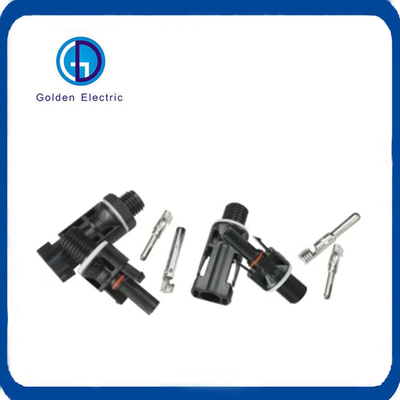

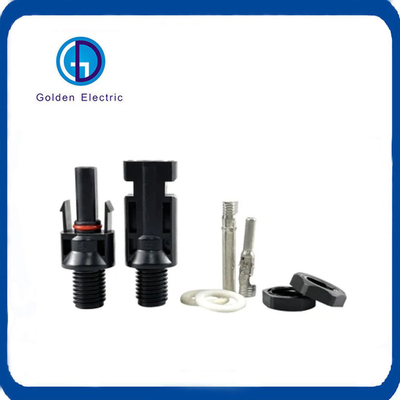

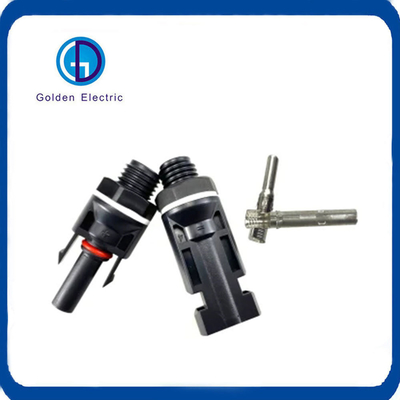

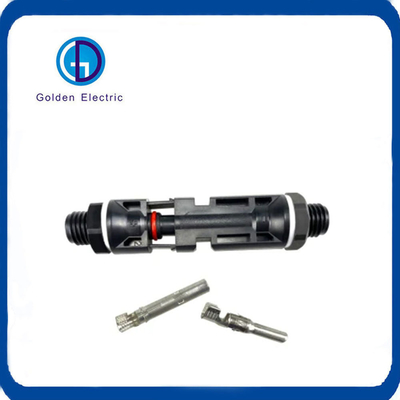

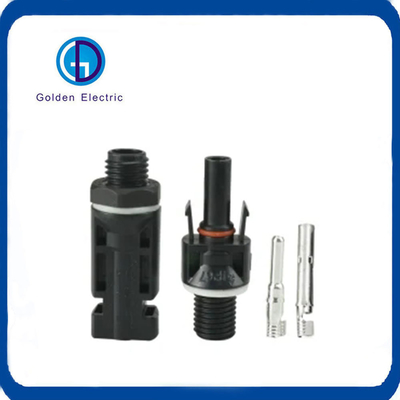

Easy To Install 2 Pins Solar Cable Connectors For 1000VDC 30A Solar Panel Mounting

Product Description

Solar Panel Cable Connectors with Assembly Tool,10 Pairs Copper Solar Wire Adapter Male/Female Waterproof Connector for Connecting Solar Panels 1000V 30A.

Possess excellent resistance to high temperature, fire protection, anti-aging and anti-UV properties, to meet the outdoor longterm use under harsh environmental conditions require.

Excellent sealing performance, waterproof and dustproof rating up to IP67.
Male and female head swap with a self-locking, electrical connections fully reliable, open and close freely.
Has broad applicability, can be inserted with the MC4 and match each other completely.

High Quality Raw Material PPO,PC

Approved by TUV and CE certification, high heat resistance, wear resistance, pollution resistance, strong toughness.

Tinned Plated Copper Inner Core

Open core,wear resistance, corrosion resistance, prevent rust.

High Strength Waterproof Ring

Dustproof, Waterproof, Protection degree IP67

Stable Self - Locking Structure

The joint adopts compression and fastening mode, the male and female head has self-locking structure to open and close freely .

Insulation Waterproof

Built-in high quality lock head, delicate, firm, sealed, insulating, to guide and prevent electric shock.

Technical Data
Type	PV004-P
Rated Voltage	1000VDC
Rated Current	30A
Standard	IEC 62852
Protection Degree	IP67
Contact Resistance	≤0.5mΩ
Pollution Degree	2
Ambient Temperature	-40~+85ºC
Insulation Material	PPO
Flame Class	UL94-V0

1000VDC 30A Solar Panel Mounting Connector DC Solar PV Cable Connector for 2.5/4/6mm2 PV Cable

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Wind Turbine, Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

1)Q:How can i trust your company?
    A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the MC4 connector guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for MC4 Connector.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
