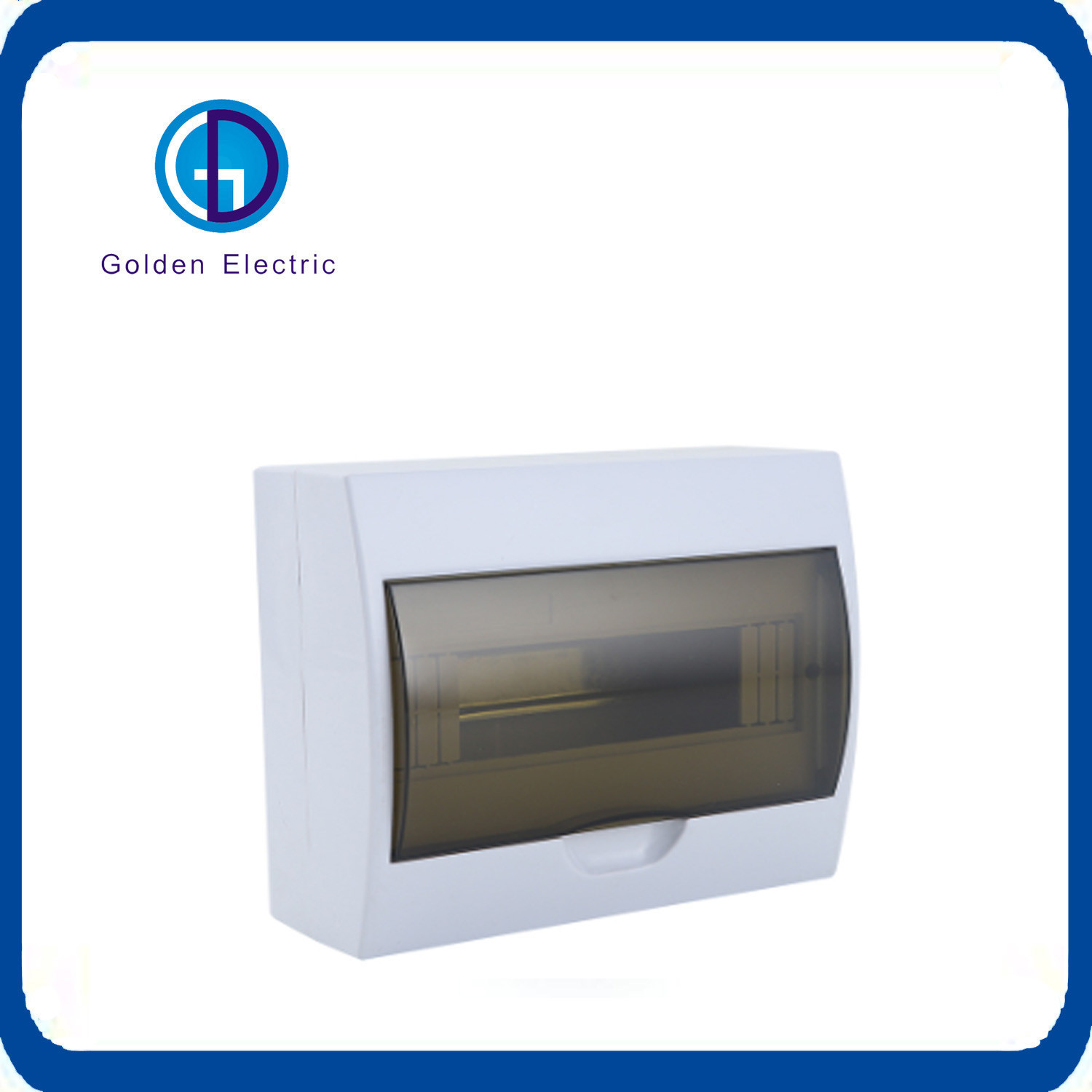

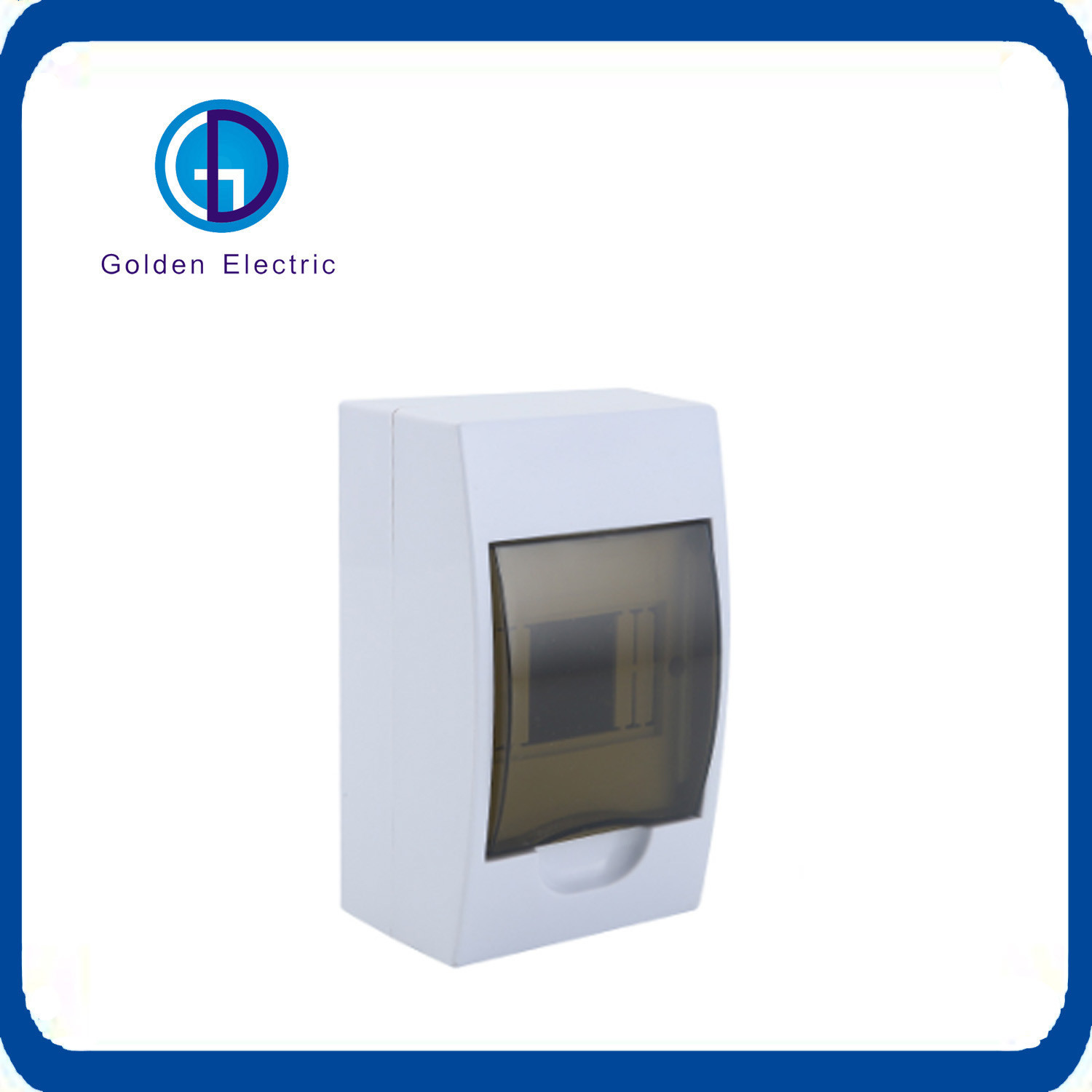

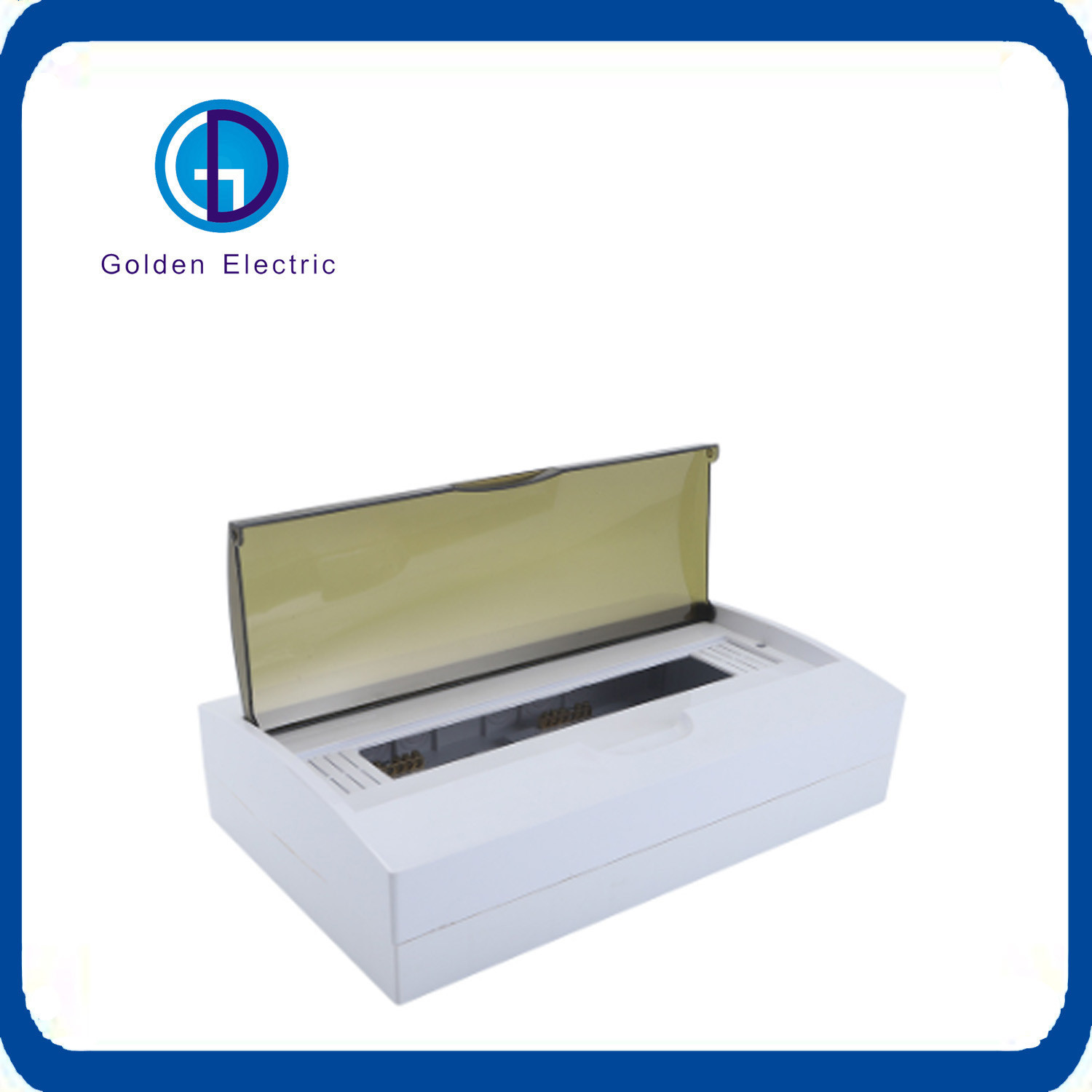

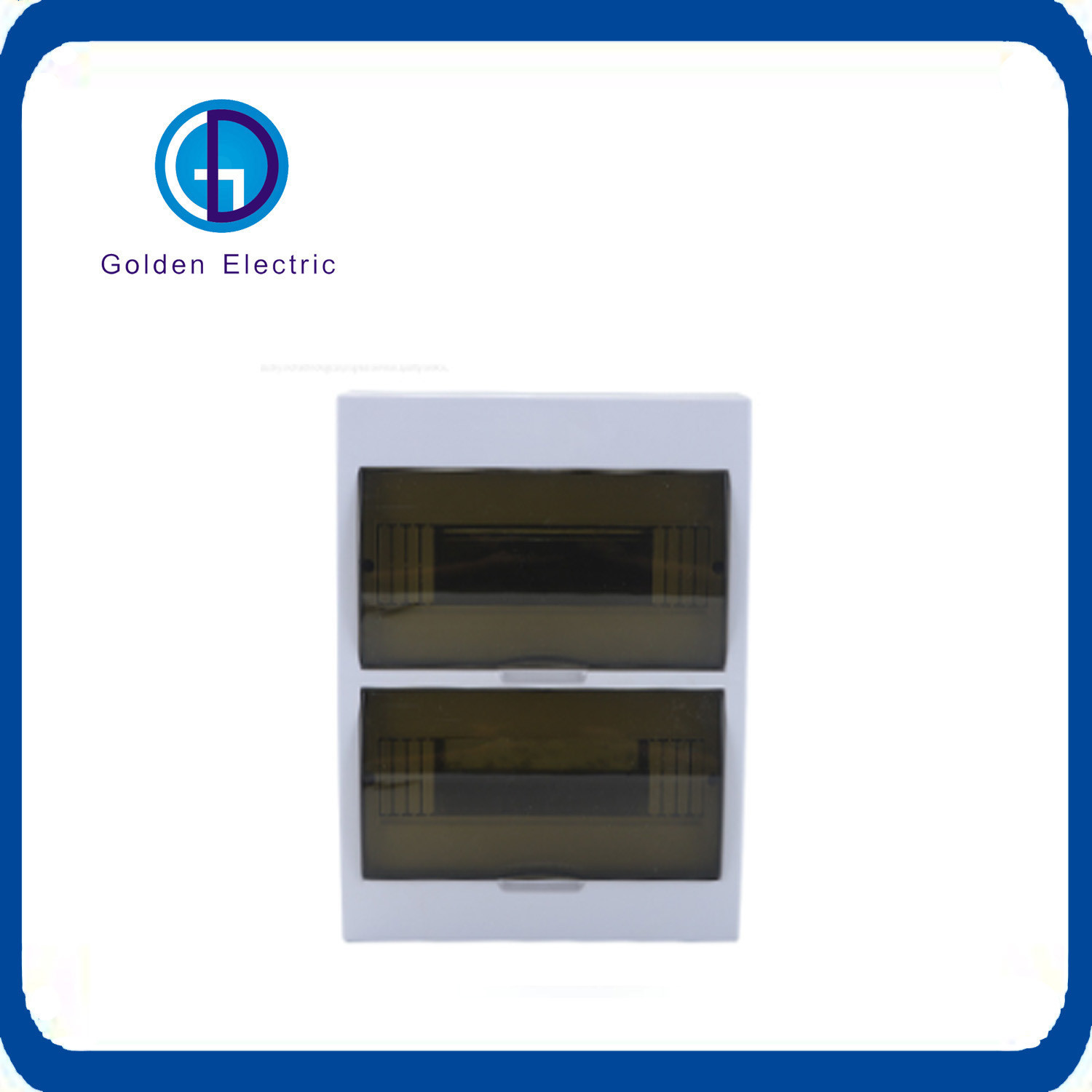

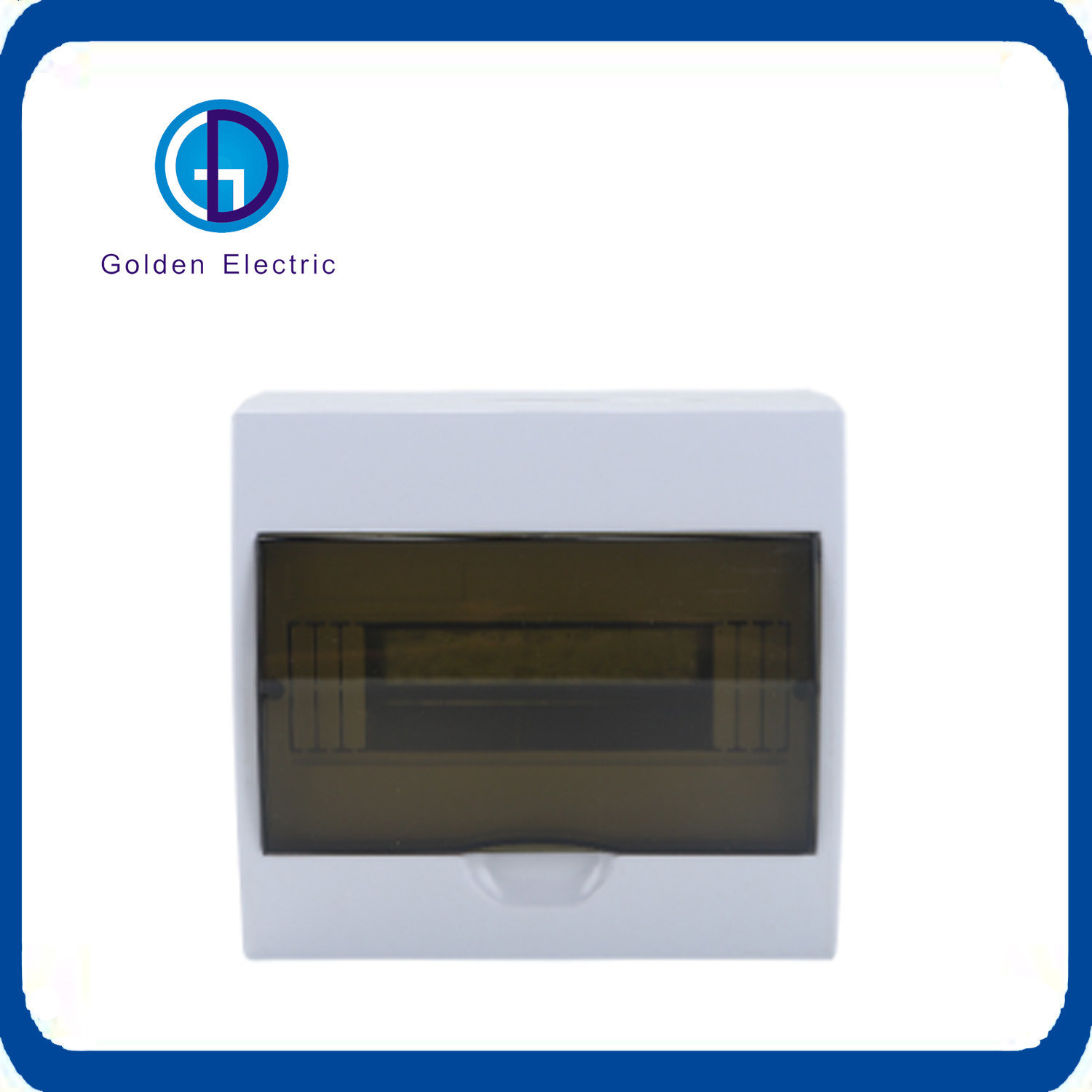

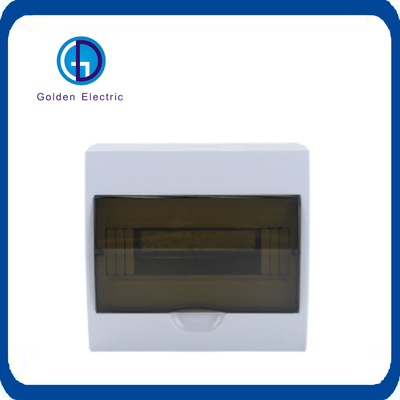

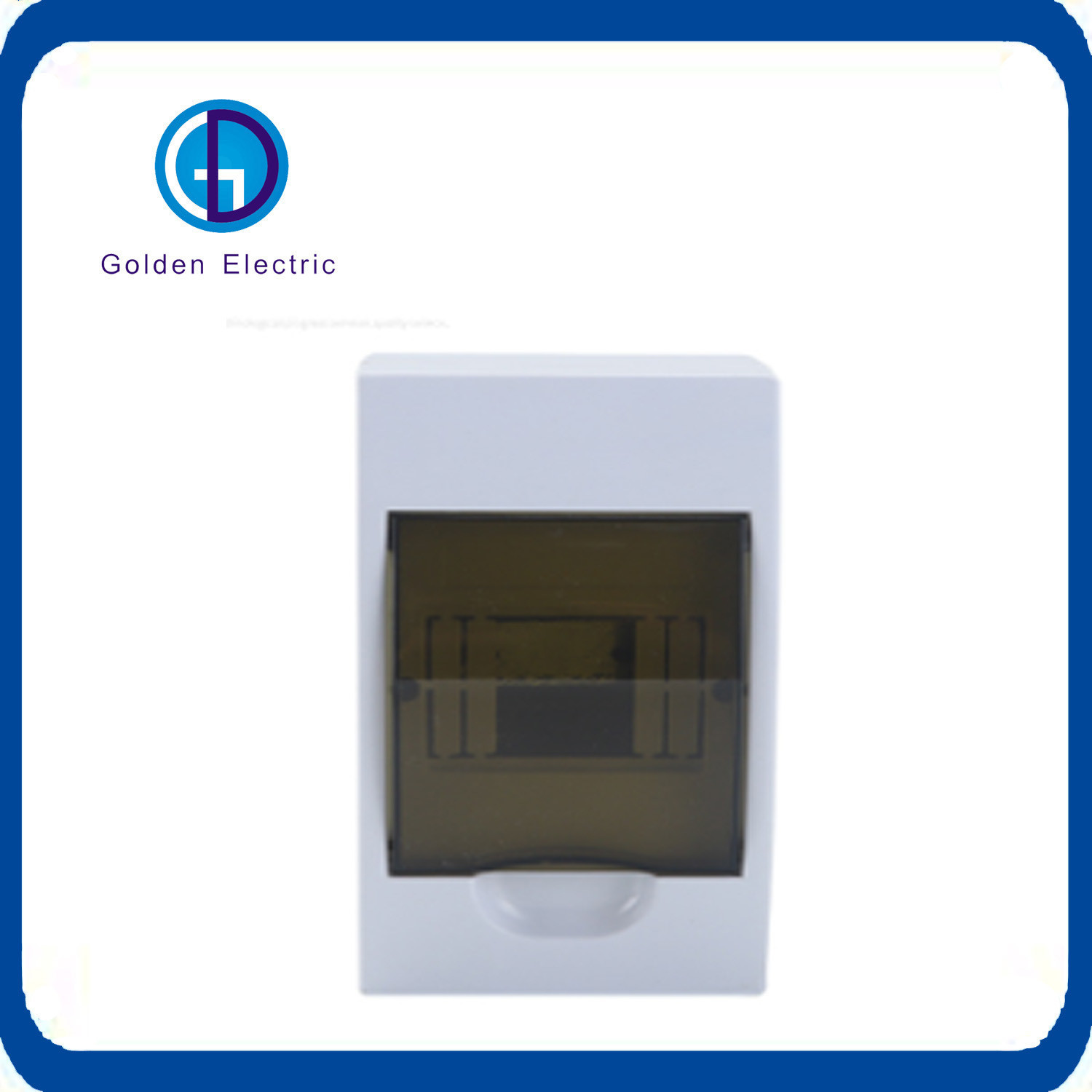

Txm Series 63A IP40 Plastic Distribution Box for Circuit Breaker Protection Structure

1
MOQ
Txm Series 63A IP40 Plastic Distribution Box for Circuit Breaker Protection Structure
Features Gallery Product Description Request A Quote
Features
Specifications
Application Range: Home Use And Outdoor Use
Shell Material: PC And ABS Fireproof
Shell Protection Grade: IP65
Brand: Industrial
Installation Method: Surface-Mounted Hanging
Color: Grey
Thickness: 1.5mm
OEM: Available
Surface Treatment: Powder Coating
Quality: High Standard
Surface Finish: Power Painting
Factory Line: 10 Line Produce
Customization Logo: Silkscreen
Short-Circuit Making Current: 10ka
Rated Current: 63A
Sample: Available
Fire Resistence: 650 °c/30s
Mounting Type: Surface
Storage Temperature: -40~+75°c
Transport Package: Standard Export Carton
Specification: 4p/6p/9p/12p/28p/24p
Trademark: Golden Or Netural Or Customer Brand
Origin: China
HS Code: 8537109090
Supply Ability: 50000PCS /Week
Type: Power
Structure: Protection
Certification: ISO9001:2000, VDE, CCC
Form: All- Packaged Type
Operation Voltage: Low Voltage
Size: 4p/6p/9p/12p/28p/24p
Samples: US$ 5/Piece 1 Piece(Min.Order) | Request Samp
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description



Txm Series Surface Mounting IP40 Circuit Breaker Distribution Board Plastic Distribution Box Factory
Specifications and features of distribution box:
1.Flush and Surface type
2.ABS plastic body with PC cover
3.VO flame retardant UV
4.IP40
5.Plastic Base,Iron Base available
6.easy for installation
7.Range: 2. 4. 6. 8. 10. 12. 15. 18. 20. 24. 36 ways

Application:

Widely used in low voltage distribution networks for power supplying of consumers and commercial buildings,ect
Txm Series Surface Mounting IP40 Circuit Breaker Distribution Board Plastic Distribution Box Factory

Product Parameters

Txm Series Surface Mounting IP40 Circuit Breaker Distribution Board Plastic Distribution Box Factory
Txm Series Surface Mounting IP40 Circuit Breaker Distribution Board Plastic Distribution Box Factory

Surface Mounting Plastic Base Size:
Model Dimensions
 L(mm)  W(mm)  H(mm)
 TXM-2MAP  94  146  85
 TXM-4MAP 112 200 94
 TXM-6MAP 146  200 94
 TXM-8MAP 184 200  94
 TXM-10MAP 222 200  94
 TXM-12MAP 256  200  94
 TXM-15MAP  312  200 94
 TXM-18MAP  363 220 94
 TXM-24MAP  270 325 94
 TXM-36MAP 270  458  94

Surface Mounting Iron Base Size:
Model Dimensions
 L(mm)  W(mm)  H(mm)
 TXM-4MAI  136  222  110
 TXM-6MAI  170  222  110
 TXM-8MAI  205  222  110
 TXM-12MAI  285  222  110
 TXM-15MAI  334  222  110
 TXM-18MAI  400  255  110
 TXM-24MAI  300  355  110
 TXM-36MAI  481  300  110
If you need more size please contact us!
Plastic Base And Iron Base Dimensions:
Txm Series Surface Mounting IP40 Circuit Breaker Distribution Board Plastic Distribution Box FactoryOther series of distribution boxes
Txm Series Surface Mounting IP40 Circuit Breaker Distribution Board Plastic Distribution Box Factory

Packaging & Shipping

Packing:Standard export carton packing

Shipping:1. By Air or by Sea for batch goods,Airport/ Port receiving
2. Customers specifying freight forwarders or negotiable shipping methods!
Txm Series Surface Mounting IP40 Circuit Breaker Distribution Board Plastic Distribution Box Factory

Company Profile

  - Golden Electric Co.,Ltd ,was foundad in 2017, we are professional for make AC and DC electric items such as isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Solar product and so on.

   - Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

    - Golden is always striving hard to provide the best services and competitive price to all customer.

MAIN PRODUCT
Txm Series Surface Mounting IP40 Circuit Breaker Distribution Board Plastic Distribution Box FactoryIf you are interested in our products , please feel free to contact with us ,
we will try our best to meet your demand.

FAQ

Q1: Are you a trading company or manufacturer?
A: We are a professinal manufacturer with low price,high quality and short delivery time and provide 7x24 service.

Q2: How about the samples?
A: Sample order is available for quality check and market test.

Q3: Is it all right to make customer's own brand name or any other customized service?
A: Sure, with your authorization of brand. We accept OEM and ODM service.

Q4: How do you control the quality?
A: We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory. If need, we can take pictures and video for you to check.
