Home /Products/Power Distribution Box/VDE Certification Surface/Flush Mounted Metal MCB Distribution Box Customized Request

VDE Certification Surface/Flush Mounted Metal MCB Distribution Box Customized Request

1
MOQ
VDE Certification Surface/Flush Mounted Metal MCB Distribution Box Customized Request
Features Gallery Product Description Request A Quote
Features
Specifications
Application Range: Power Plants
Shell Material: Steel Plate
Shell Protection Grade: IP30
Brand: Golden Electric /OEM
Structure Type: Surface / Flush
Rated Voltage: 220V-330V
Application: Low Voltage Power Distribution System
Rated Current: 100A
Installation: Wall-Mount
Transparent Cover Material: ABS
Raw-Material: ABS + Cold-Pressed Steel Plate
Transport Package: Standard Export Carton
Specification: 6/8/10/12/15/18/20/24/30/36/40ways
Trademark: Golden Or Netural, Or Customer Brand
Origin: China
HS Code: 853890000
Supply Ability: 20000PCS/Month
Type: Power
Structure: Fixed Board
Certification: ISO9001:2000, VDE, CCC
Form: All- Packaged Type
Operation Voltage: Low Voltage
Size: 1 Uint
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description


PZ30 modular terminal combination electrical appliance is a device for installing terminal electrical appliances. Its main features are the modularization of electrical dimensions, installation rails, artistic appearance and safe use; it has been widely used at home and abroad.

PZ30 terminal combination electric appliance is suitable for the terminal circuit of single-phase three-wire or three-phase five-wire with voltage of 220V or 330V and total load current not more than 100A. It is used to control electrical equipment and protect overload, short circuit, overvoltage and leakage. A complete set of functions. It can be widely used in high-rise buildings, residences, stations, ports, airports, hospitals, theaters, large commercial outlets and industrial and mining enterprises.



Product Features



The main structural components of PZ30 terminal combination electrical appliances are transparent cover, upper cover, box body, installation track, track height adjustment screw, conductive bar, wire protection cover and electrical switch elements. The built-in electrical switch elements can be combined arbitrarily according to the needs, and the height of the installation track can be adjusted, especially for the concealed type, which is more convenient. Quick and easy disassembly, safe and reliable use.



Product Parameters

Specification Dimension Box Dimension
H W D H'' W''
6ways 230 220 90 200 190
8ways 230 255 90 200 225
10ways 290 290 90 260 260
12ways 290 330 90 260 300
15ways 290 380 90 260 350
18ways 290 435 90 260 405
20ways 290 470 90 260 440
24ways 490 330 90 460 300
30ways 490 380 90 460 350
36ways 490 435 90 460 405
40ways 490 470 90 460 440

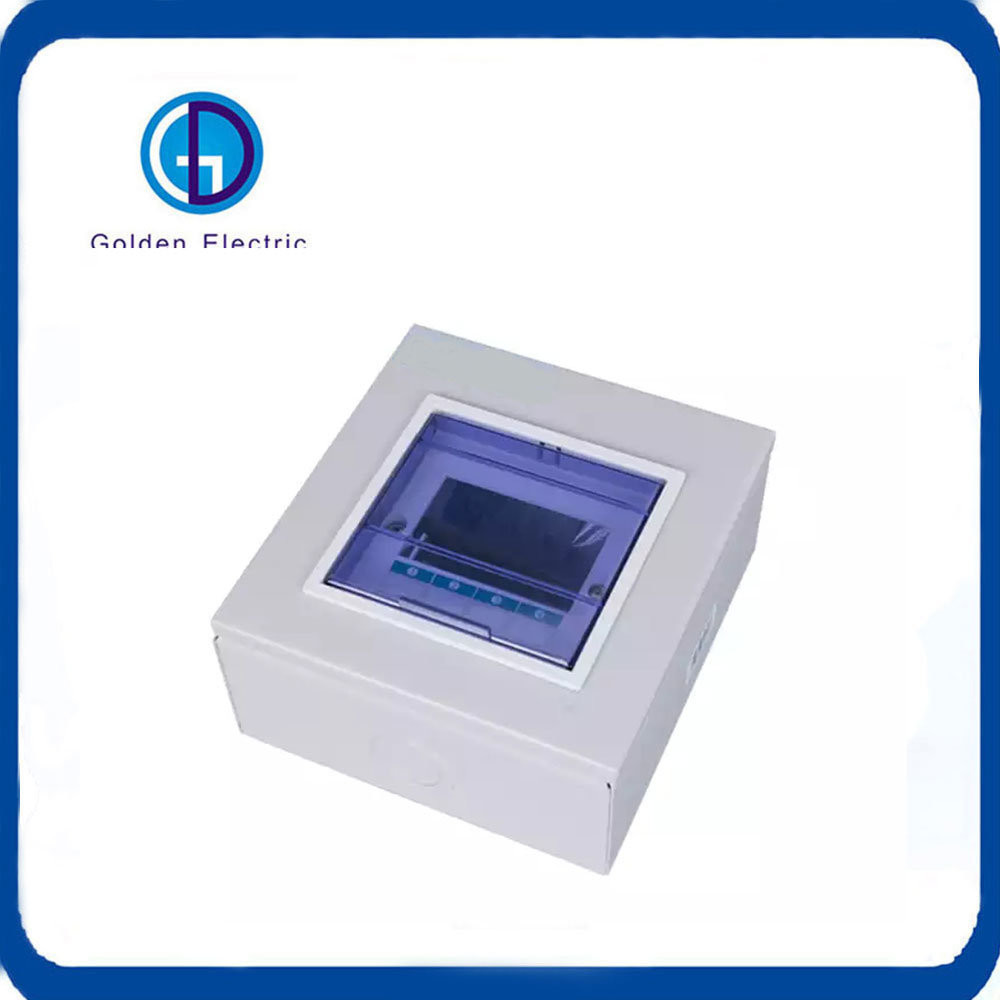

Detailed Photos



Surface/Flush Mounted Metal MCB Distribution Box 380V Low Voltage Distribution Enclousre Circuit Breaker Lighting Distribution Board

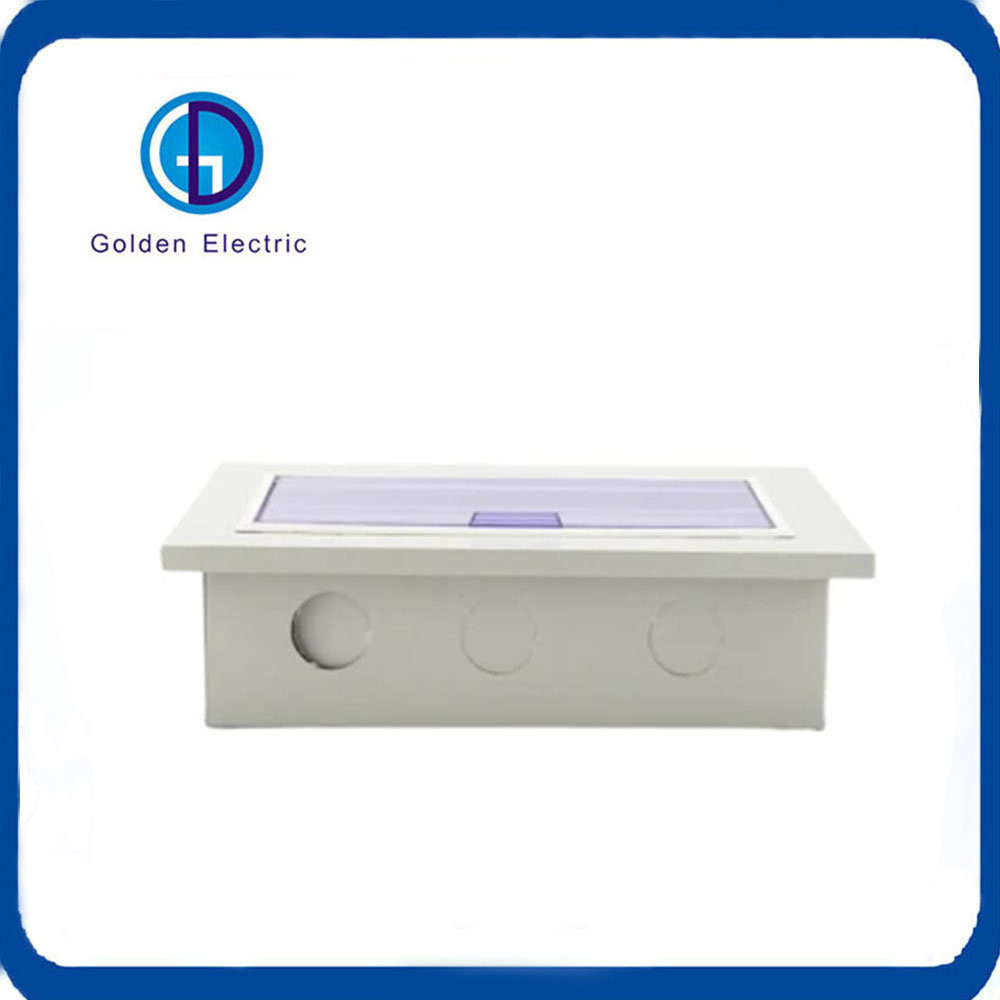

Wiring knockout

External power cord, insulated to prevent electric shock.

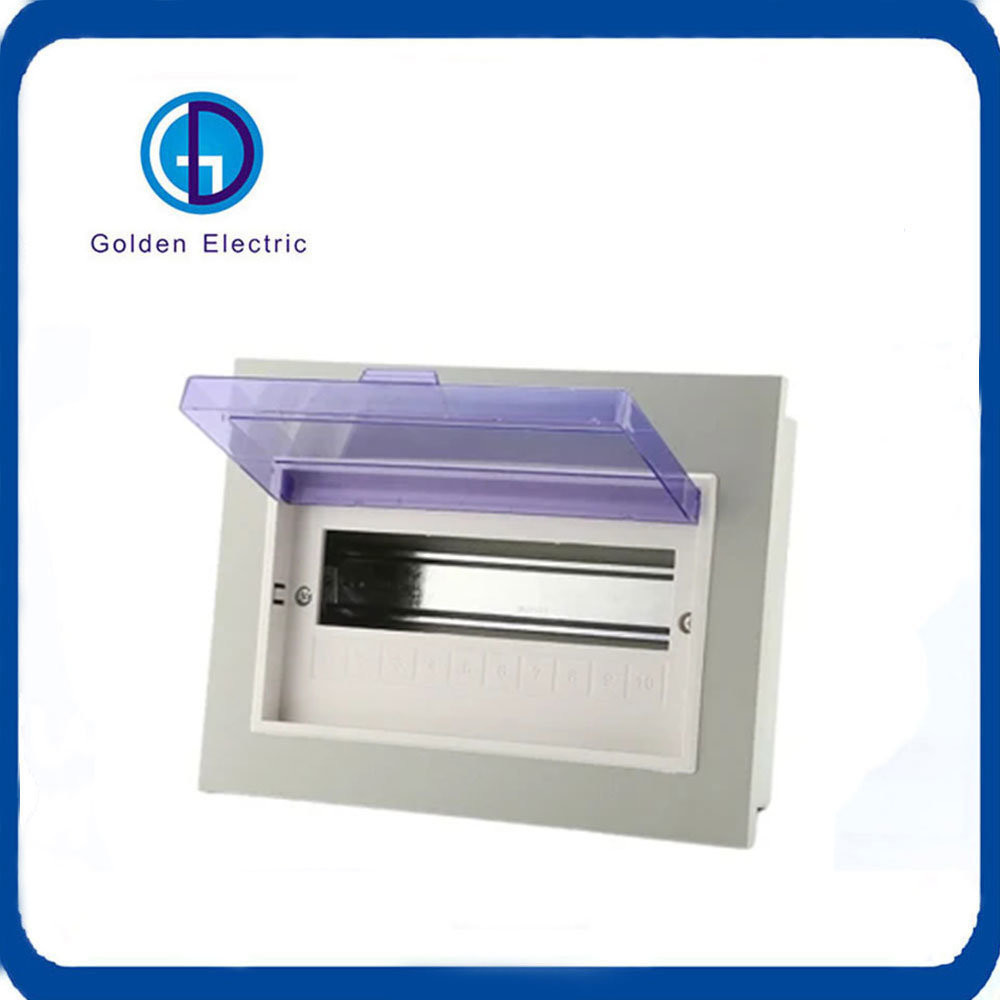

Rail bracket

The edge of the rail frame does not hurt the hand.

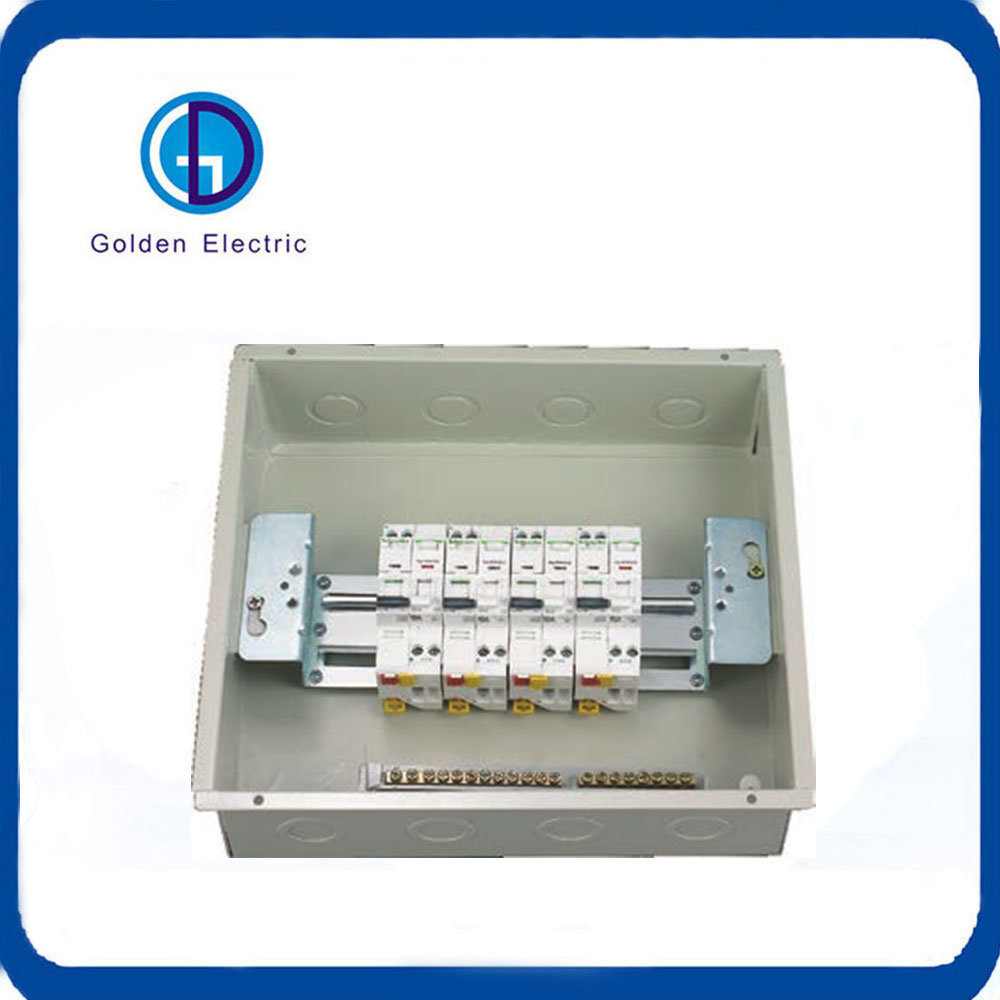

Surface/Flush Mounted Metal MCB Distribution Box 380V Low Voltage Distribution Enclousre Circuit Breaker Lighting Distribution Board

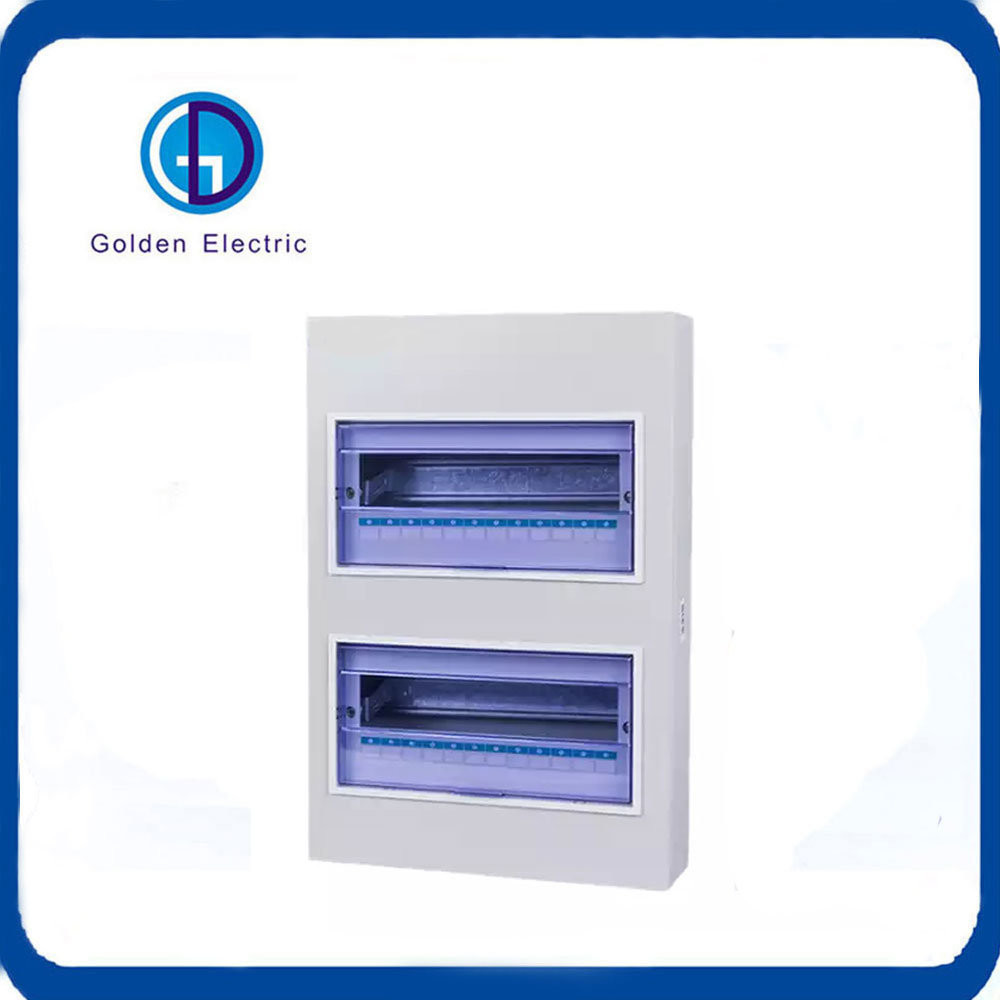

Surface/Flush Mounted Metal MCB Distribution Box 380V Low Voltage Distribution Enclousre Circuit Breaker Lighting Distribution Board

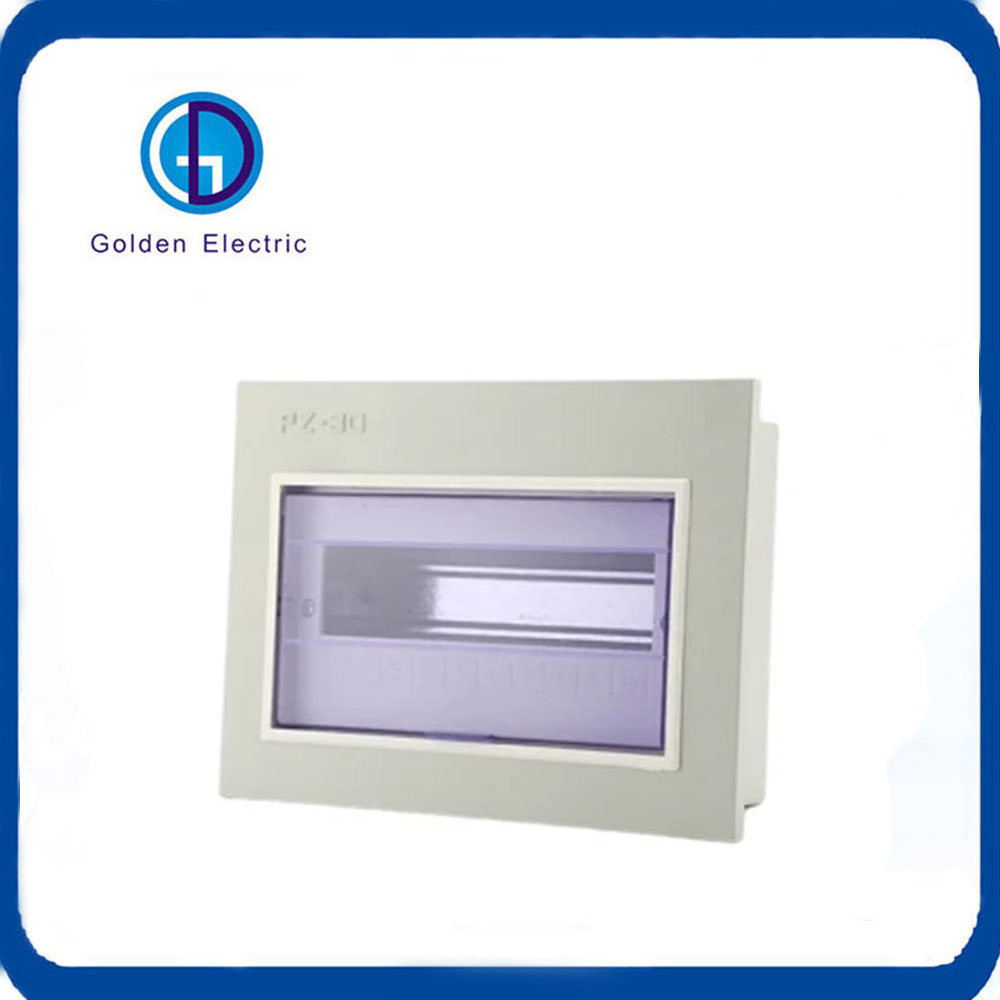

IP30 protection class

Reduce dust accumulation and prevent foreign objects from entering.







Recommand Product

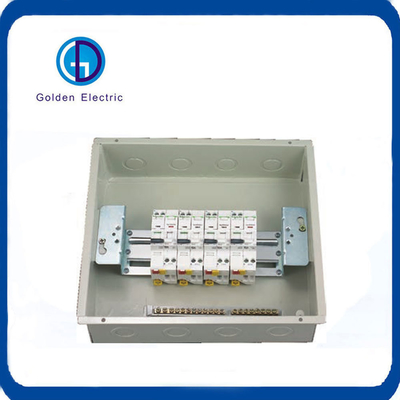

Surface/Flush Mounted Metal MCB Distribution Box 380V Low Voltage Distribution Enclousre Circuit Breaker Lighting Distribution Board
Surface/Flush Mounted Metal MCB Distribution Box 380V Low Voltage Distribution Enclousre Circuit Breaker Lighting Distribution Board
Surface/Flush Mounted Metal MCB Distribution Box 380V Low Voltage Distribution Enclousre Circuit Breaker Lighting Distribution Board
Surface/Flush Mounted Metal MCB Distribution Box 380V Low Voltage Distribution Enclousre Circuit Breaker Lighting Distribution Board
Surface/Flush Mounted Metal MCB Distribution Box 380V Low Voltage Distribution Enclousre Circuit Breaker Lighting Distribution Board
Surface/Flush Mounted Metal MCB Distribution Box 380V Low Voltage Distribution Enclousre Circuit Breaker Lighting Distribution Board
Surface/Flush Mounted Metal MCB Distribution Box 380V Low Voltage Distribution Enclousre Circuit Breaker Lighting Distribution Board
Surface/Flush Mounted Metal MCB Distribution Box 380V Low Voltage Distribution Enclousre Circuit Breaker Lighting Distribution Board
Surface/Flush Mounted Metal MCB Distribution Box 380V Low Voltage Distribution Enclousre Circuit Breaker Lighting Distribution Board





Company Profile



- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Wind Turbine, Solar product, busbar clamp and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.



FAQ


1)Q:How can i trust your company?
    A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Circuit Breaker,Automatic transfer switch,Surge protector device,distribution box Enclosure, inverter, DC fuse, busbar clamp etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the Metal Distribution Box guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for Metal Distribution Box.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
