Features

Specifications

Application Range: Power Plants

Shell Material: Steel Plate

Shell Protection Grade: IP30

Brand: Golden Electric /OEM

Structure Type: Surface / Flush

Rated Voltage: 220V-330V

Application: Low Voltage Power Distribution System

Rated Current: 100A

Installation: Wall-Mount

Transparent Cover Material: ABS

Raw-Material: ABS + Cold-Pressed Steel Plate

Transport Package: Standard Export Carton

Specification: 6/8/10/12/15/18/20/24/30/36/40ways

Trademark: Golden Or Netural, Or Customer Brand

Origin: China

HS Code: 853890000

Supply Ability: 20000PCS/Month

Type: Power

Structure: Fixed Board

Certification: ISO9001:2000, VDE, CCC

Form: All- Packaged Type

Operation Voltage: Low Voltage

Size: 1 Uint

Customization: Available | Customized Request

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

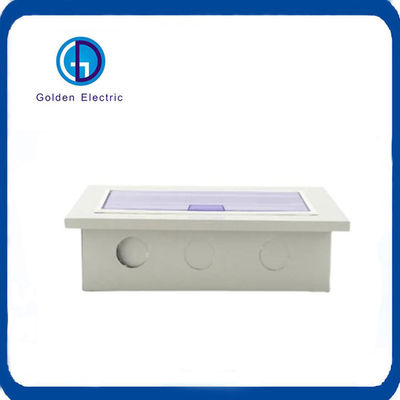

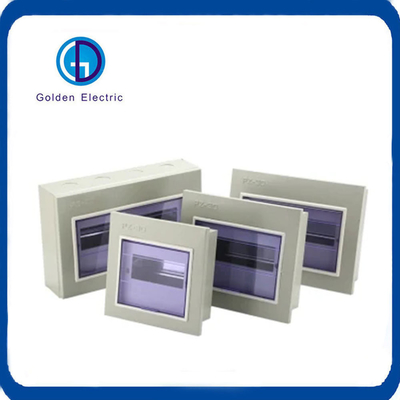

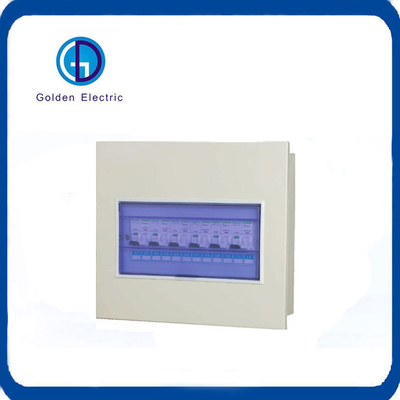

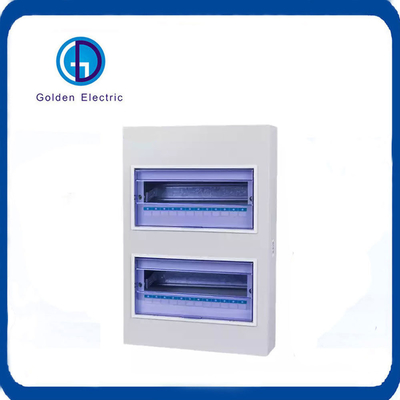

CCC Certified Wall-Mounted Metal MCB Power Distribution Box for 6/8/10ways Capacity

Product Description

PZ30 modular terminal combination electrical appliance is a device for installing terminal electrical appliances. Its main features are the modularization of electrical dimensions, installation rails, artistic appearance and safe use; it has been widely used at home and abroad.

PZ30 terminal combination electric appliance is suitable for the terminal circuit of single-phase three-wire or three-phase five-wire with voltage of 220V or 330V and total load current not more than 100A. It is used to control electrical equipment and protect overload, short circuit, overvoltage and leakage. A complete set of functions. It can be widely used in high-rise buildings, residences, stations, ports, airports, hospitals, theaters, large commercial outlets and industrial and mining enterprises.

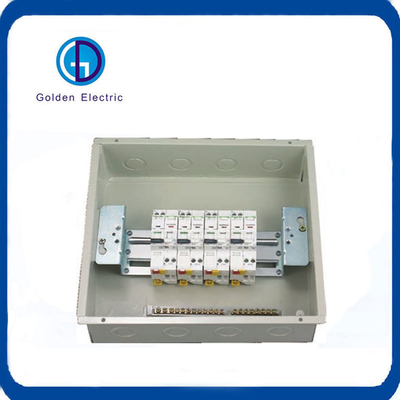

The main structural components of PZ30 terminal combination electrical appliances are transparent cover, upper cover, box body, installation track, track height adjustment screw, conductive bar, wire protection cover and electrical switch elements. The built-in electrical switch elements can be combined arbitrarily according to the needs, and the height of the installation track can be adjusted, especially for the concealed type, which is more convenient. Quick and easy disassembly, safe and reliable use.

Specification	Dimension			Box Dimension
Specification	H	W	D	H''	W''
6ways	230	220	90	200	190
8ways	230	255	90	200	225
10ways	290	290	90	260	260
12ways	290	330	90	260	300
15ways	290	380	90	260	350
18ways	290	435	90	260	405
20ways	290	470	90	260	440
24ways	490	330	90	460	300
30ways	490	380	90	460	350
36ways	490	435	90	460	405
40ways	490	470	90	460	440

Wiring knockout

External power cord, insulated to prevent electric shock.

Rail bracket

The edge of the rail frame does not hurt the hand.

IP30 protection class

Reduce dust accumulation and prevent foreign objects from entering.

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Wind Turbine, Solar product, busbar clamp and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

1)Q:How can i trust your company?
    A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Circuit Breaker,Automatic transfer switch,Surge protector device,distribution box Enclosure, inverter, DC fuse, busbar clamp etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the Metal Distribution Box guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for Metal Distribution Box.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
