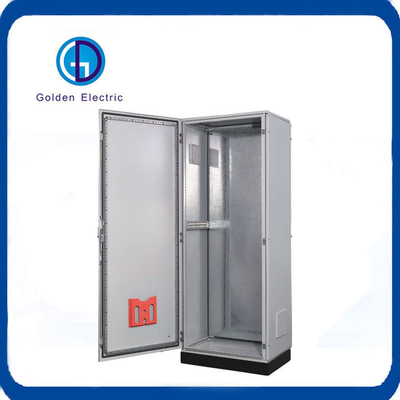

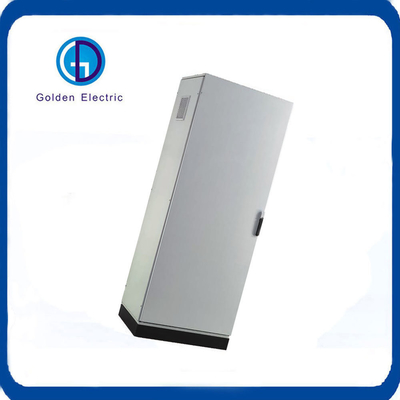

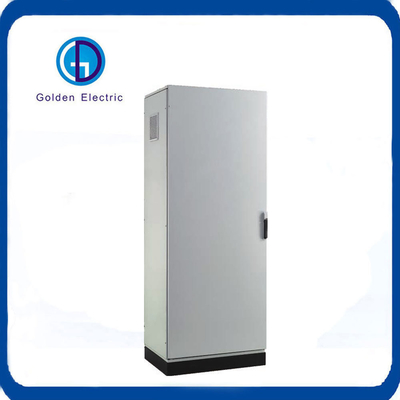

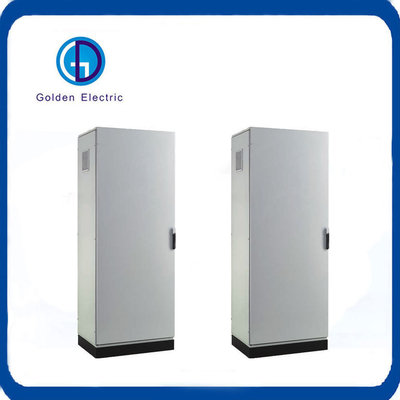

1800mm*800mm*600mm IP65 Folded Steel Floor Stand Power Distribution Box for Electrical Power Boards Ral7035 Color

1. The frame of the box is made of nine-fold profiles, and the high-quality special tee is welded into a whole. The structure is firm and reliable, and the appearance is beautiful.
2. The mounting plate can be moved back and forth in units of 25mm to adjust the depth.
3. There are round holes and square holes every 25mm on the 10-fold profile (for use with the mounting beam), which makes the internal installation and fixation of the instrument very convenient and fast.

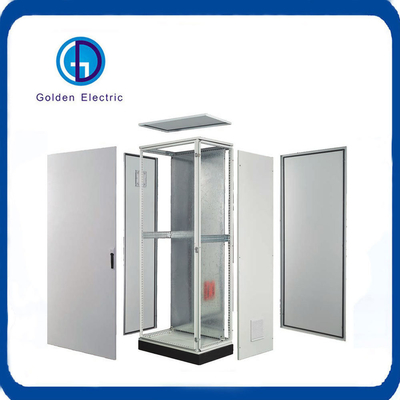

4. The top cover, side panel, rear panel and bottom panel are all fixed with screws, which is easy to fold and assemble, and the installation work in the cabinet is more convenient.
5. The upper and lower wiring holes are equipped with grouping cover plates, and the front and rear doors and side doors are easy to disassemble and assemble, which is convenient for work.
6. The three cover plates for the cable entry holes on the bottom plate can be replaced with each other and move freely, which is convenient for introducing cables and opening the holes for cable entry.
7. The material is cold-rolled steel plate, and the surface treatment: degreasing, phosphating, electrophoretic primer, outdoor waterproof plastic powder.
8. Replaceable accessories for international quality cabinets.
9. Main body color: RAL7035, installation plate: orange or galvanized.
10. Various specifications and sizes can be customized according to customer requirements.


Active rail

The mounting plate can be freely adjusted back and forth according to user needs, which is convenient for users to install.

Active cover

The three cover plates for the cable entry holes on the bottom plate can be replaced with each other and move freely, which is convenient for introducing cables and opening the holes for cable entry.

Pouring sealing strip

The sealing strip is cast and formed at one time, and it is self-skinning. It has the advantages of rainproof, fireproof, high temperature resistance, high strength and beautiful appearance.
