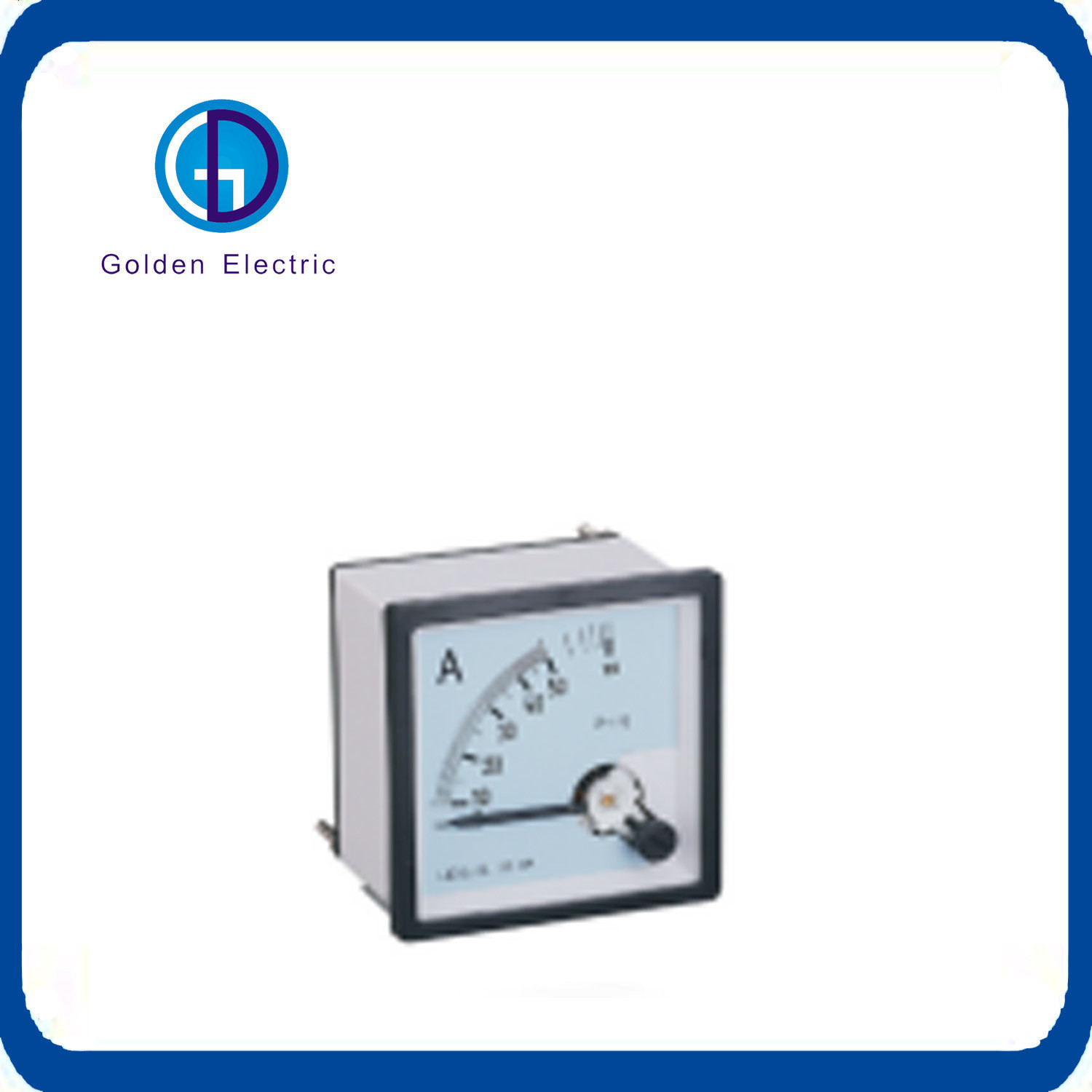

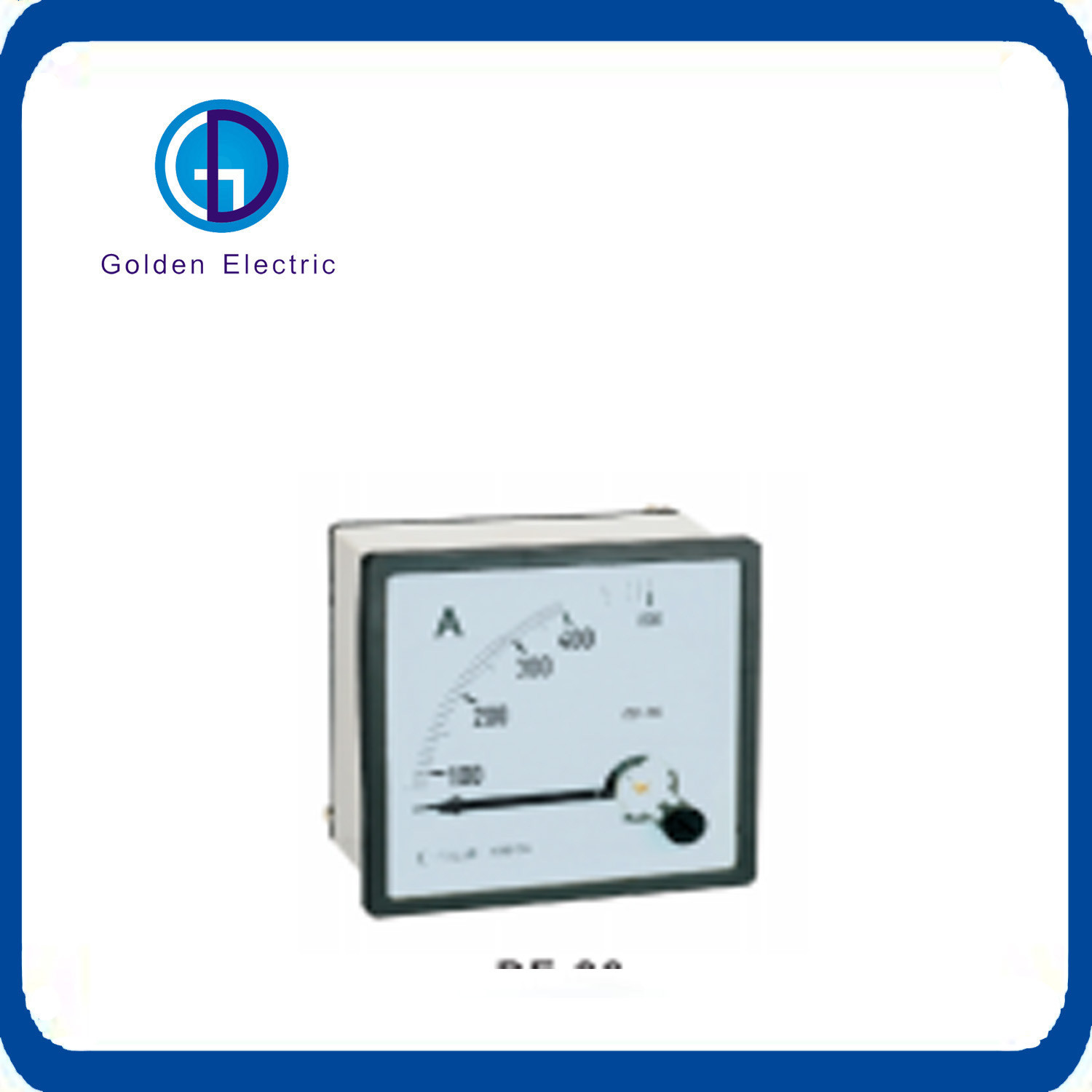

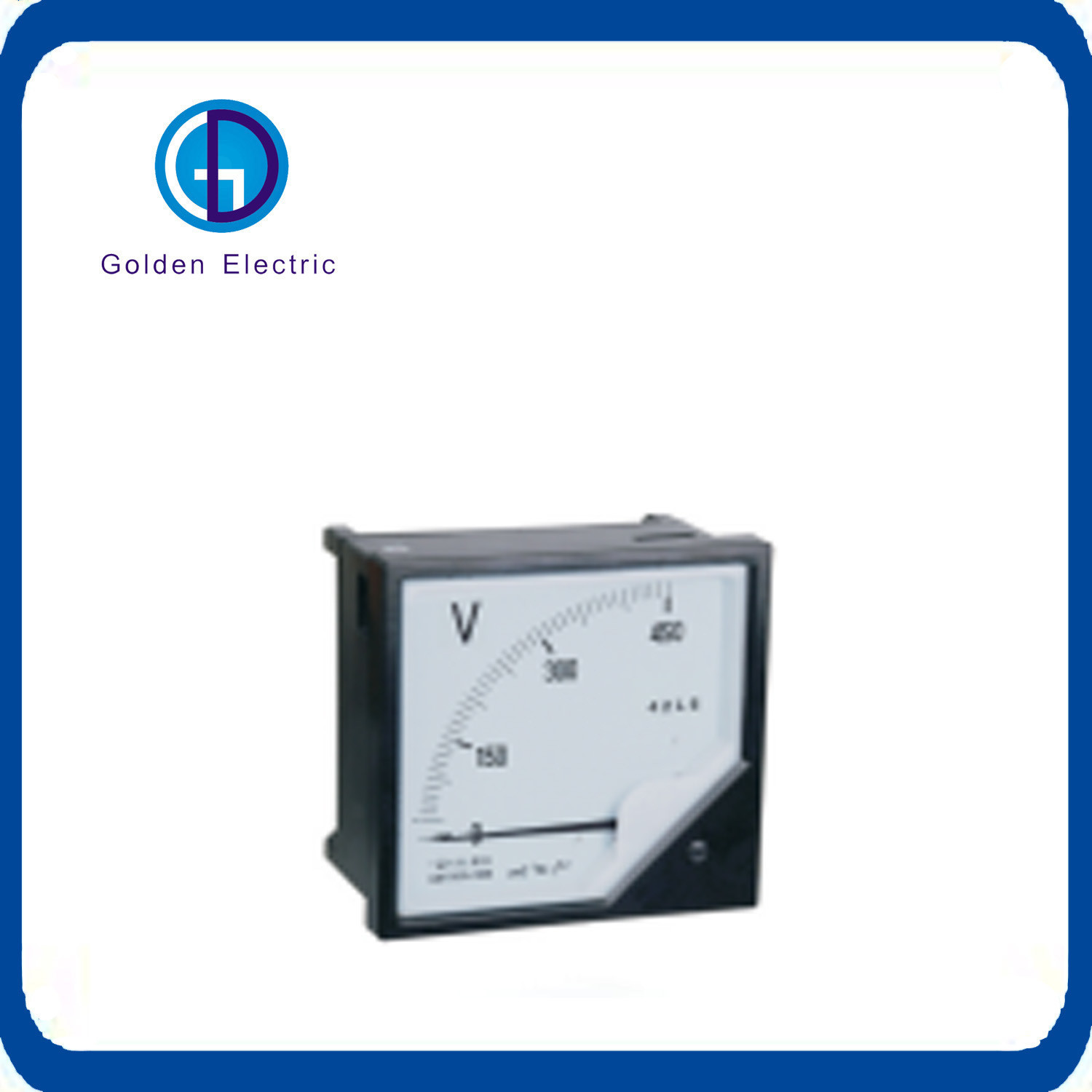

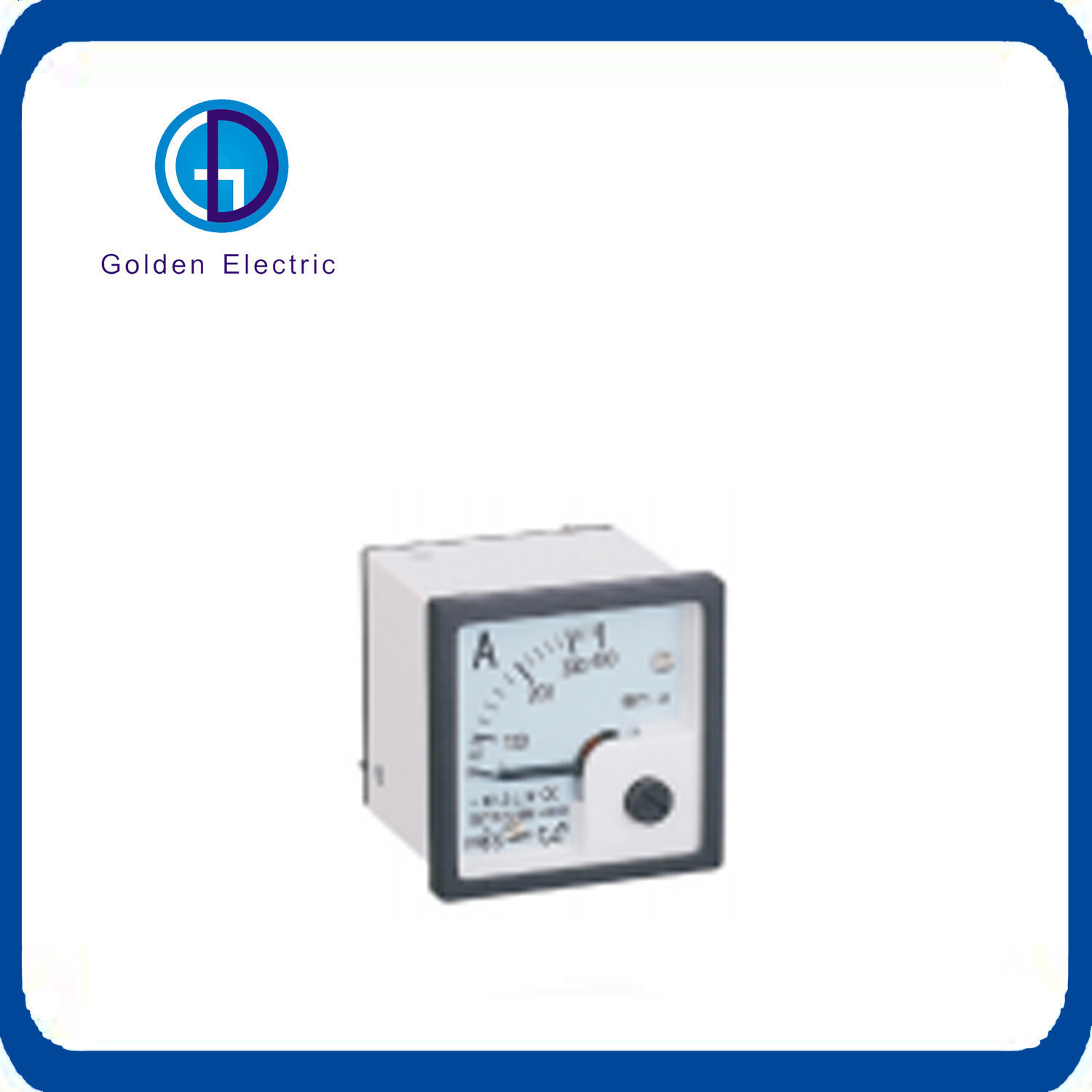

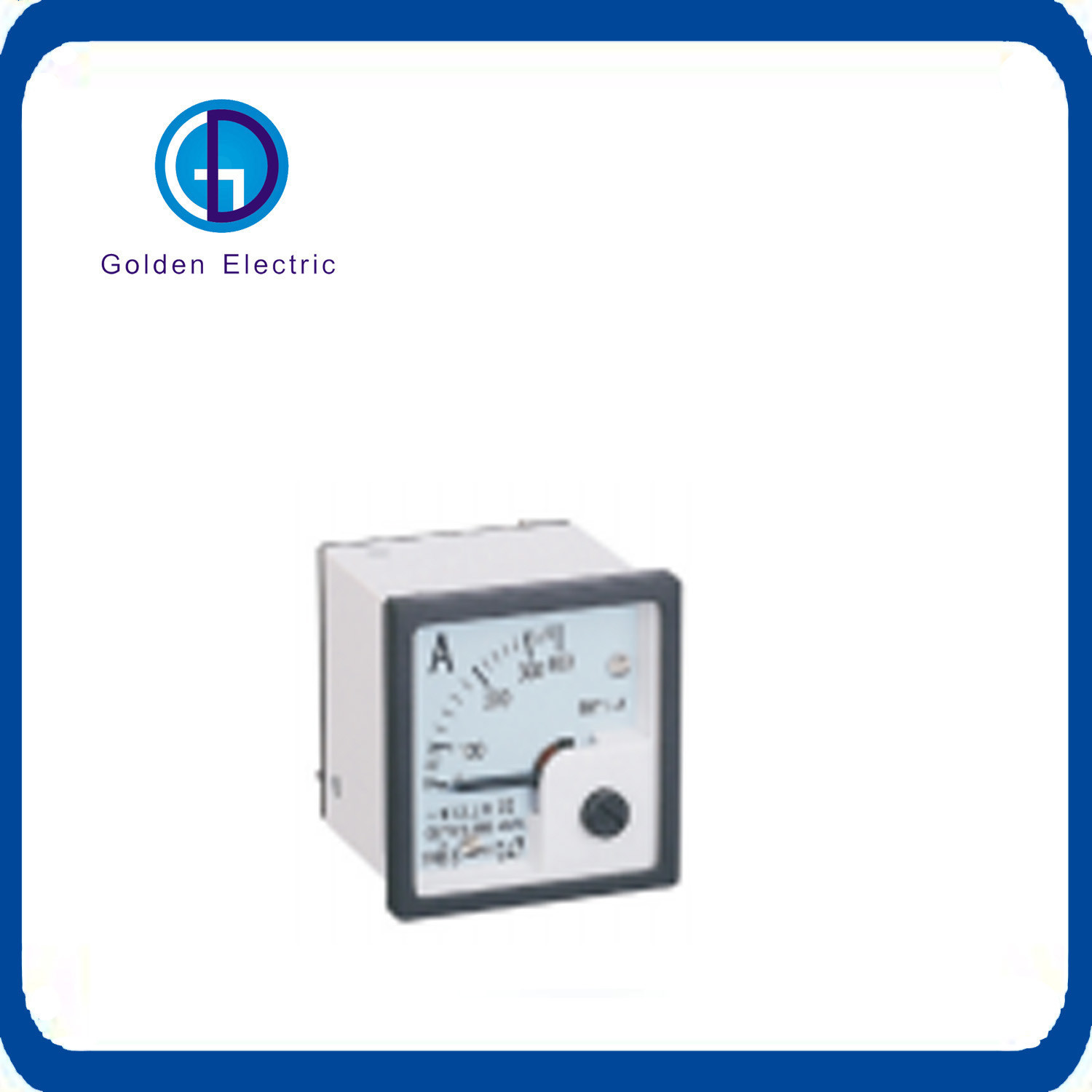

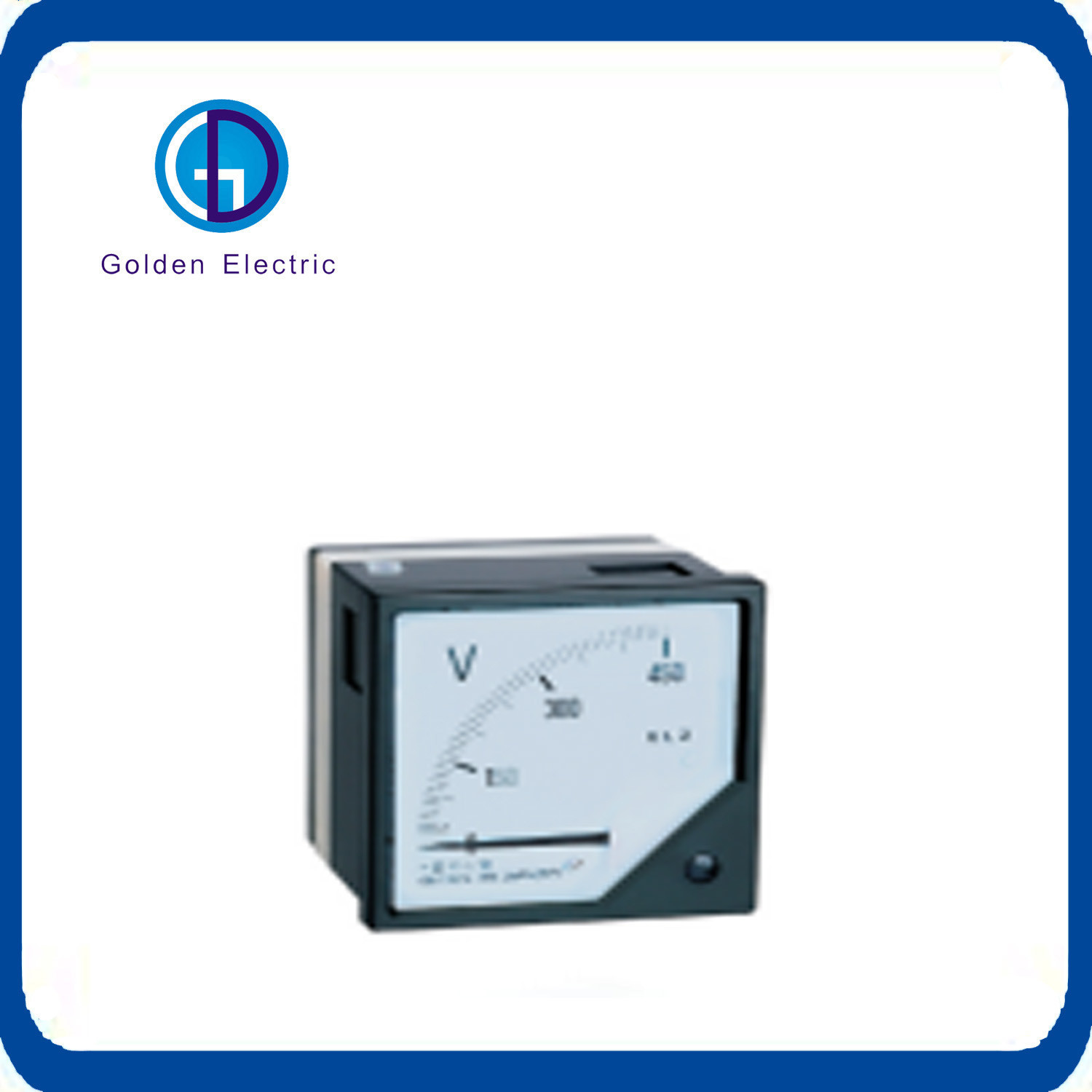

Panel Meter Voltmeter Ammeter
| Infuence of vibretion and shock | Ordinary type |
| Installation position | Vertical installation,allowing the tilt ±5°.Unless other wise stipulated . |
| Storage temperature | -40ºC~70ºC |
| Damping time | 4s Less than |
| Working environment | The reference temperature is 23C+2ºC the relative humidity is 40~85%.The limit
temperature is-20ºC~55C. no more than 95% RH and free of wet and gas corruption |
| Insulation strength | Can withstand the pressure test with Sine wave Ac 2kV in frequency 50Hz for 1min |
| Insulation resistance | 20M More than |
Application
It can be used as signal indication, warning signal, accident signal and other signals in the line of electric power, telecommunication, machine tool, ship, textile,printing and mining machinery.
| Product Name | Specificatios | Measurementrange | Accuracy |
| DC current meter | DE96-A | 50uA-20A
(input directiy)20A-10KA/60mV/75mV | 1.5 CLass
(DE48 2.5 Class) |
| DE72-A |
| DE48-A |
| DC voltage meter | DE96-V | 5V-750V(input directly)450V-450KV/1mA/5mA(external device) |
| DE72-V |
| DE48-V |
| AC current meter | DE96-A | 500mA-100A
(input directly) De48 500mA-30A
(input directly)5A-10kA/5A
(external device) | Under 30A 1.5 class
Iess than 30A is Class 1.5 30A
De48 is 2.5 Class |
| DE72-A |
| DE48-A |
| AC voltage meter | DE96-V | 15V-600V(input directly)380V-450KV/100V
(external device) | 1.5 CLass
(DE48 2.5 Class) |
| DE72-V |
| DE48-V |
| Frequency meter | DE96-Hz | 45-55Hz,45-60Hz,55-65Hz Rated voltage:100V 220V 380V | 1.0 Class |
| DE72-Hz |
| Active/reactive power meter | DE96W/var | 100V,220V,380V-380KV/100V5A,.5A-10KA/5A
(external device) | 2.5 Class |
| DE72W/var |
Three-phase
power factor meter | DE96 COS$ | 0.5C-1-0.5L
100V5A,380V5A | 2.5 Class |
| DE72 COS |
| Product Name | Specificatios | Measurementrange | Accuracy |
| DC current meter | 42C3-A | 50uA-20A
(input directiy)20A-10KA/60mV/75mV | 1.5 CLass
(DE48 2.5 Class) |
| 6C2-A |
| 99T1-A |
| DC voltage meter | 42C3-V | 5V-750V(input directly)450V-450KV/1mA/5mA(external device) |
| 6C2-V |
| 99T1-V |
| AC current meter | 42L6-A | 500mA-100A
(input directly) De48 500mA-30A
(input directly)5A-10kA/5A
(external device) | Under 30A 1.5 class
Iess than 30A is Class 1.5 30A
De48 is 2.5 Class |
| 6L2-A |
| 99T1-A |
| AC voltage meter | 42L6-V | 15V-600V(input directly)380V-450KV/100V
(external device) | 1.5 CLass
(DE48 2.5 Class) |
| 6L2-V |
| 99T1-V |
| Frequency meter | 42L6-Hz | 45-55Hz,45-60Hz,55-65Hz Rated voltage:100V 220V 380V | 1.0 Class |
| 6L2-Hz |
| Active/reactive power meter | 42L6 W/var | 100V,220V,380V-380KV/100V5A,.5A-10KA/5A
(external device) | 2.5 Class |
| 6L2 W/var |
Three-phase
power factor meter | 42L6 COS∮ | 0.5C-1-0.5L
100V5A,380V5A | 2.5 Class |
| 6L2 COS∮ |
