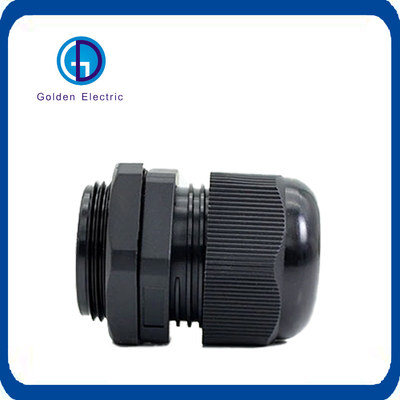

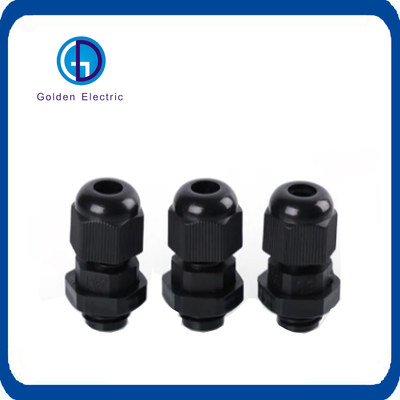

Customized IP68 Waterproof Nylon Cable Gland with Metallic Color and CE Metric Thread

1
MOQ
Customized IP68 Waterproof Nylon Cable Gland with Metallic Color and CE Metric Thread
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: E-12 SERIES
Clamping Insert: Nylon PA
Working Temperature: -40~100
Advantages: Fast Delivery
Size: M10-M100
Key Words: Brass Cable Gland
Function: Cable Protection
Hot Searching: Atex Cable Gland
Samples: Provide Sample
Feature: Seal Part Hold Cable Firmly
MOQ: 100PCS
Work Temperature: 40~+100
Cable Gland: Waterproof
Thread Length: Standard & Customization
Other Size: Customization
Transport Package: Standard Export Carton
Specification: Metric / PG / G / NPT
Trademark: Golden Electric
Origin: China
HS Code: 33039649
Supply Ability: 50000PCS/Month
Certification: CCC, RoHS, ISO, CE
Surface Treatment: Electroplating
Color: Metallic Color
IP Rating: IP68
Material: Brass Nickel Plated
Type: Straight Head
Samples: US$ 5/Piece 1 Piece(Min.Order) | Request Samp
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Model Number: M10-M100
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description
What is the Special of Waterproof Cale Gland?

1.WIRE PROTECTION
Provides strain relief to cables and wires passing through plates or connecting to electrical equipment.
2.EASY INSTALLATION
 Simply pass your cable through the gland and tighten the cap.
3.PROFESSIONAL LOOK
Black nylon cable glands are used by professionals everywhere.
4.VERSATILE
Used on all types of electrical, industrial, and automotive equipment and machinery
5.WATERPROOF
 IP68 rating allows for underwater use. Resistant to salt water, weak acid, alcohol, oil, grease and common solvents.
Customized Hot Selling IP68 Waterproof Nylon Cable Gland with CE Metric Thread

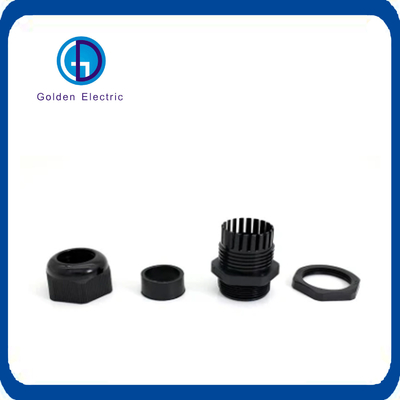

Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).


Product Certification: CE certification, ROHS certification and ISO9001.

Protection Degree:  IP68- 10 BAR




Working temperature:   -40ºCto 100ºCin static state, or instantaneous heat resistance up to 120ºC; -20ºCto 80ºCin dynamic state, or instantaneous heat resistance up to 100ºC.

Characteristics:The claws and seals of excellent design,sealing nut hace a "click" sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.

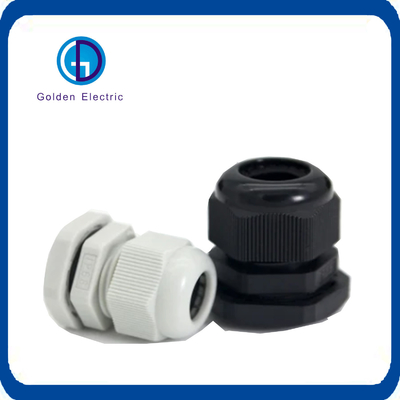

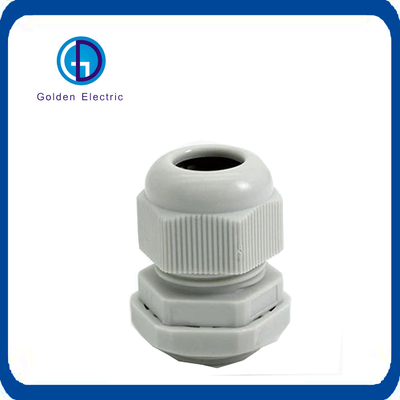

Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.

Customized Hot Selling IP68 Waterproof Nylon Cable Gland with CE Metric Thread

Customized Hot Selling IP68 Waterproof Nylon Cable Gland with CE Metric Thread

Function:
1. Can be used in liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.

2.Use to positively bond the conduit to a box or enclosure.

Product parameters:

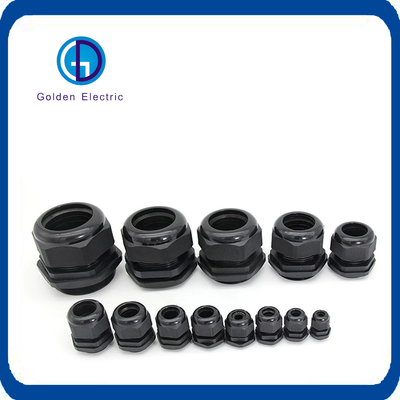

United Structure Nylon Cable Gland-- Metric thread
Product Code Thread  AG Cable range(mm) Thread O.D. C1(mm) Thread length GL(mm) Spanner Size (mm)
JX-NLM8-UN M8*1.25 2-4.8 8 7.5 43447
JX-NLM10-UN M10*1.5 3-6 10 8 15/13
JX-NLM12A-UN M12*1.5 3-6.5 12 8.5 18/15
JX-NLM12B-UN 3-6.5 12 15 18/15
JX-NLM12C-UN 3-5.5 12 8.5 18/19
JX-NLM12D-UN 4-8 12 8.5 18/19
JX-NLM12E-UN 3-5.5 12 15 18/19
JX-NLM12F-UN 4-8 12 15 18/19
JX-NLM16A-UN M16*1.5 4-8 16 10 22/19
JX-NLM16B-UN 4-8 16 15 22/19
JX-NLM16C-UN 3-7 16 10 22/22
JX-NLM16D-UN 5-10 16 10 22/22
JX-NLM16E-UN 3-7 16 15 22/22
JX-NLM16F-UN 5-10 16 15 22/22
JX-NLM18A-UN M18*1.5 3-7 18 10 24/22
JX-NLM18B-UN 5-10 18 10 24/22
JX-NLM18C-UN 3-7 18 15 24/22
JX-NLM18D-UN 5-10 18 15 24/22
JX-NLM20A-UN M20*1.5 6-12.5 20 10 27/24
JX-NLM20B-UN 5-11 20 11 27/27
JX-NLM20C-UN 8.5-14 20 11 27/27
JX-NLM20D-UN 5-11 20 15 27/27
JX-NLM20E-UN 8.5-14 20 15 27/27
JX-NLM22A-UN M22*1.5 5-11 22 11 27/27
JX-NLM22B-UN 8.5-14 22 11 27/27
JX-NLM24A-UN M24*1.5 5-11 24 11 27/27
JX-NLM24B-UN 8.5-14 24 11 27/27
JX-NLM25A-UN M25*1.5 8.5-14 25 11.6 33/27
JX-NLM25B-UN 7-13 25 11.6 33/33
JX-NLM25C-UN 12.5-18 25 11.6 33/33
JX-NLM25D-UN 7-13 25 15 33/33
JX-NLM25E-UN 12.5-18 25 15 33/33
JX-NLM32A-UN M32*1.5 11-17.5 32 15 36/42
JX-NLM32B-UN 14-22 32 15 41/42
JX-NLM32C-UN 17-25 32 15 41/42
JX-NLM36A-UN M36*1.5 14-22 36 12 45/42
JX-NLM36B-UN 17-25 36 12 45/42
JX-NLM40A-UN M40*1.5 18-25 40 15 50/52
JX-NLM40B-UN 23-32 40 15 50/52
JX-NLM50A-UN M50*1.5 25-32 50 15 62/62
JX-NLM50B-UN 30-41 50 15 62/62
JX-NLM63A-UN M63*1.5 29-38 63 18 75/65
JX-NLM63B-UN 35-46 63 18 75/65
Customization is acceptable.Welcome to inquire.
The Drawing of Nylon Cable Gland:
Customized Hot Selling IP68 Waterproof Nylon Cable Gland with CE Metric Thread
Field of Application

       Cable glands are mechanical cable entry devices. They are used  throughout a number of industries in conjunction with cable and wiring used in  elelctrical instrumentation and automation systems.

       Cable gland may be used on all types of electrical power, control,  instrumentation, data and telecommunications cables. They are used as a  sealing and termination device to ensure that the charachteristcs of the  enclosure which the cable enters can be maintained adequately.


About US

    - Golden Electric Co.,Ltd ,was foundad in 2017, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Solar product and so on.

  - Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

   - Golden is always striving hard to provide the best services and competitive price to all customers.

Packing&Delivery

Packaging Details:

Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other
packing can be supplied according customers request.
Delivery Detail:
Shipped in 7 days after payment
Customized Hot Selling IP68 Waterproof Nylon Cable Gland with CE Metric ThreadCustomized Hot Selling IP68 Waterproof Nylon Cable Gland with CE Metric Thread
Related Products
Customized Hot Selling IP68 Waterproof Nylon Cable Gland with CE Metric Thread

RFQ
Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered a patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What are your terms of delivery?
A: EXW, FOB.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.


Our commitent

  • BETTER PRICE than other sellers for you because of Factory Direct Sale.
  • BETTER QUALITY than before caused by our 10+ years trading experience.
  • STOCK IN TRADE always own to our Fast & Professional production line.
  • FAST DELIVERY always made by our GROUP's Enthusiam.
  • TIMING REPLY in 24 hours all about our TEAM's Passion & Patience.

Send your Inquiry Details in the Below, Click "Send" Now~

YOUR BENEFITS IS OUR BUSINESS!!!
