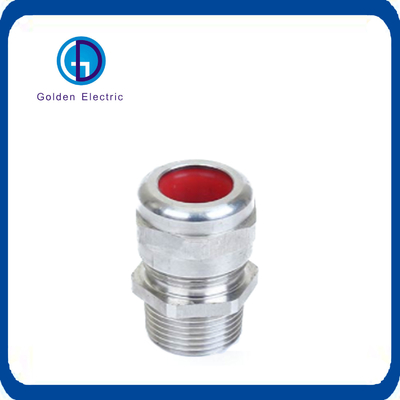

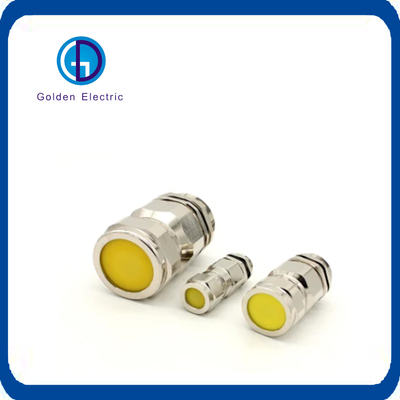

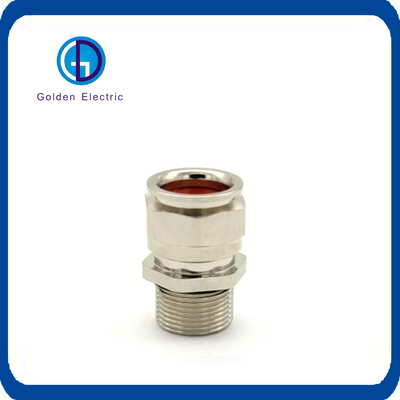

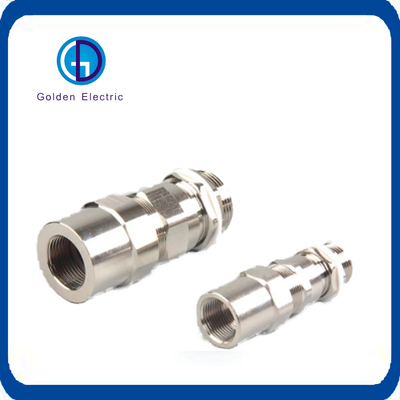

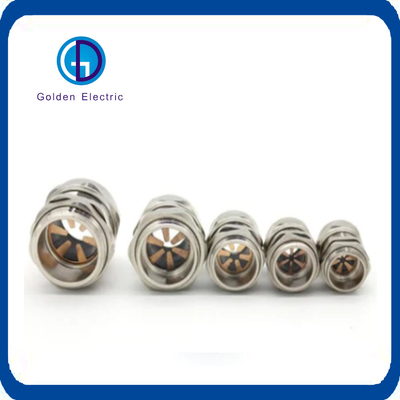

IP66 IP68 Explosion-Proof Metal Cable Gland with Nickel Plated Brass Customizable Sizes

1
MOQ
IP66 IP68 Explosion-Proof Metal Cable Gland with Nickel Plated Brass Customizable Sizes
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: E-15 SERIES
Clamping Insert: Nylon PA
Working Temperature: -40~100
Advantages: Fast Delivery
Size: M10-M100
Key Words: Brass Cable Gland
Function: Cable Protection
Hot Searching: Atex Cable Gland
Samples: Provide Sample
Feature: Seal Part Hold Cable Firmly
MOQ: 100PCS
Work Temperature: 40~+100
Cable Gland: Waterproof
Thread Length: Standard & Customization
Other Size: Customization
Transport Package: Standard Export Carton
Specification: Metric / PG / G / NPT
Trademark: Golden Electric
Origin: China
HS Code: 33039649
Supply Ability: 50000PCS/Month
Certification: CCC, RoHS, ISO, CE
Surface Treatment: Electroplating
Color: Metallic Color
IP Rating: IP68
Material: Brass Or Stainless Steel, Brass With Nickel Plated
Type: Straight Head
Samples: US$ 5/Piece 1 Piece(Min.Order) | Request Samp
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Model Number: M10-M100
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description
What is the Special of Waterproof Cale Gland?

1.WIRE PROTECTION
Provides strain relief to cables and wires passing through plates or connecting to electrical equipment.
2.EASY INSTALLATION
 Simply pass your cable through the gland and tighten the cap.
3.PROFESSIONAL LOOK
Black nylon cable glands are used by professionals everywhere.
4.VERSATILE
Used on all types of electrical, industrial, and automotive equipment and machinery
5.WATERPROOF
 IP66 rating allows for underwater use. Resistant to salt water, weak acid, alcohol, oil, grease and common solvents.

Wholesale High Quality IP66 IP68 Explosion-Proof Ex Metal Nickel Plated Brass Cable Gland

Features:

With quick installation, safety, reliability and other characteristics of good protection.

1. It is Made of copper or stainless steel material;

2. Cable is sealed with gasketing;

3. With reliable installation, good protection and explosion-proof function;

4. Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored  cable, it is cable core and enclosure gas sealing protection most be lP66

Function: Suitable for clamping and fixing various types of armored cable.

1. Can be used in Hazardous division 1&2;

2. Can be used in Explosive gas atmosphere;

Wholesale High Quality IP66 IP68 Explosion-Proof Ex Metal Nickel Plated Brass Cable Gland


Product parameters:

Double Sealed Explosion-proof Cable Gland JX1 - Metric Thread
Code AG Thread Cable Outer diameter (B) Max. Length (H) Thread Length (mm) Six Angle Size
Metric NPT,G Min Max On the edge
JX-1-EX-12 M20*1.5 1/2'' 5.5 12 30 15 24
JX-1-EX-16 M20*1.5 1/2'' 9.5 16 30 15 24
JX-1-EX-20.5 M20*1.5 1/2''-3/4'' 12.5 20.5 35 15 30
JX-1-EX-26 M25*1.5 3/4''-1'' 16.9 26 35 15 36
JX-1-EX-33 M32*1.5 1''-11/4'' 22 33 39 15 46
JX-1-EX-41 M40*1.5 11/4''-11/2'' 28 41 48 15 55
JX-1-EX-52.6 M50*1.5 11/2''-2'' 36 52.6 53 15 65
JX-1-EX-65.3 M63*1.5 2''-21/2'' 46 65.3 58 15 80
JX-1-EX-78 M70*2.0 21/2''-3'' 57 78 65 15 90
Wholesale High Quality IP66 IP68 Explosion-Proof Ex Metal Nickel Plated Brass Cable Gland
Double Sealed Explosion-proof Cable Gland JX2 - Metric Thread
Code AG Thread Inner sheath/ core line Cable Outer diameter Armored cable/belt Max. Length (H) Thread Length (mm) Six Angle Size
Metric NPT,G Core line Max Inner sheath Max core line Min Max Direction 1 Direction 2 On the edge
JX-2 -EX-12 M20*1.5 1/2'' 9 10 6 5.5 12 0.9/1.25 0/0.7 65.5 15 24
JX-2 -EX-16 M20*1.5 1/2'' 9 10 6 9.5 16 0.9/1.25 0/0.7 65.5 15 24
JX-2 -EX-20.5 M20*1.5 1/2''-3/4'' 11.2 12.5 10 12.5 20.5 0.9/1.25 0/0.7 67.5 15 30
JX-2 -EX-26 M25*1.5 3/4''-1'' 16.3 18.4 21 16.9 26 1.25/1.6 0/0.7 71.4 15 36
JX-2 -EX-33 M32*1.5 1''-11/4'' 22 24.7 42 22 33 1.6/2.0 0/0.7 76 15 46
JX-2 -EX-41 M40*1.5 11/4''-11/2'' 26.5 29.7 60 28 41 1.8/2.5 0/0.7 78.2 15 55
JX-2 -EX-52.6 M50*1.5 11/2''-2'' 37.2 41.7 80 36 52.6 1.8/2.5 0/1.0 91 15 65
JX-2 -EX-65.3 M63*1.5 2''-21/2'' 47.6 53.5 100 46 65.3 1.8/2.5 0/1.0 98 15 80
JX-2 -EX-78 M75*2.0 21/2''-3'' 60 65.3/66.2 120 57 78 1.8/2.5 0/1.0 102 15 95
Wholesale High Quality IP66 IP68 Explosion-Proof Ex Metal Nickel Plated Brass Cable Gland
Ex Clamp Sealing Joint JX3- Metric, G Thread
Product Code Thread AG Outer Diameter of Cable (mm) Thread length L1(mm) Length L (mm) Length L2 (mm)
Outlet A Incoming Line B
JX-3-EX-15A M16*1.5 - 8 7-15 15 68 85
JX-3-EX-15B M20*1.5 G1/2 8 7-15 15 68 85
JX-3-EX-20 M25*1.5 G3/4 13 11-20 15 72 87
JX-3-EX-25 M32*1.5 G1 16 14-25 17 77 92
JX-3-EX-33 M40*1.5 G1 1/4 21 19-33 17 77 95
JX-3-EX-41 M50*1.5 G1 1/2 25 24-41 17 95 100
JX-3-EX-50 M63*1.5 G2 32.5 30-50 17 99 110
JX-3-EX-64 M75*1.5 G2 1/2 44 38-64 17 113 127
JX-3-EX-74A M85*1.5 G3S 52 47-74 18 113 127
JX-3-EX-74B M90*1.5 G3 52 47-74 18 127 137
JX-3-EX-90 M100*1.5 G4S 64 57-90 18 127 137
JX-3-EX-103 M110*1.5 G4 72 62-103 18 127 137
Wholesale High Quality IP66 IP68 Explosion-Proof Ex Metal Nickel Plated Brass Cable Gland
Ex Clamp Sealing Joint JX4 - G Thread
Code A End Pipe Thread Cable Range (mm) Length C (mm)
JX-4-EX-10 G1/2 7-10 63
JX-4-EX-14 G3/4 9-14 64
JX-4-EX-18 G1 12-18 74
JX-4-EX-26 G1 1/4 15-26 84
JX-4-EX-30 G1 1/2 18-30 86
JX-4-EX-42 G2 25-42 86
JX-4-EX-55 G2 1/2 29-55 100
JX-4-EX-65 G3 29-65 100
JX-4-EX-80 G4 41-80 100
Wholesale High Quality IP66 IP68 Explosion-Proof Ex Metal Nickel Plated Brass Cable Gland
Explosion-proof Cable Gland JX5
Metric thread(M) Outer diameter of cable(mm) SW (mm) L (mm) L1 (mm)
A B
JX-5-EX-M16 4-8 5.5-12 24 80 15
JX-5-EX-M20A 6.5-10.5 9.5-16 27 80 15
JX-5-EX-M20B 10-14.5 12.5-20 30 80 15
JX-5-EX-M25 12.5-19.5 16.9-26 36 88 15
JX-5-EX-M32 19-25.5 22-33 45 92 15
JX-5-EX-M40 25-31 28-41 57 98 15
JX-5-EX-M50 31.5-37 36-52.6 65 122 15
JX-5-EX-M63 42.5-55 46-65.3 81 122 15
JX-5-EX-M75 54.5-64 58-78 100 122 18
JX-5-EX-G1/2A 4-8 5.5-12 24 80 15
JX-5-EX-G1/2B 6.5-10.5 9.5-16 27 80 15
JX-5-EX-G3/4 10-14.5 12.5-20 30 80 15
JX-5-EX-G1 12.5-19.5 16.9-26 36 88 15
JX-5-EX-G11/4 19-25.5 22-33 45 92 15
JX-5-EX-G11/2 25-31 28-41 57 98 15
JX-5-EX-G2 31.5-37 36-52.6 65 122 15
JX-5-EX-G2 1/2 42.5-55 46-65.3 81 122 15
JX-5-EX-G3 54.5-64 58-78 100 122 18
JX-5-EX-NPT1/2A 4-8 5.5-12 24 80 15
JX-5-EX-NPT1/2B 6.5-10.5 9.5-16 27 80 15
JX-5-EX-NPT3/4 10-14.5 12.5-20 30 80 15
JX-5-EX-NPT1 12.5-19.5 16.9-26 36 88 15
JX-5-EX-NPT1 1/4 19-25.5 22-33 45 92 15
JX-5-EX-NPT1 1/2 25-31 28-41 57 98 15
JX-5-EX-NPT2 31.5-37 36-52.6 65 122 15
JX-5-EX-NPT2 1/2 42.5-55 46-65.3 81 122 15
JX-5-EX-NPT3 54.5-64 58-78 100 122 18
Wholesale High Quality IP66 IP68 Explosion-Proof Ex Metal Nickel Plated Brass Cable Gland

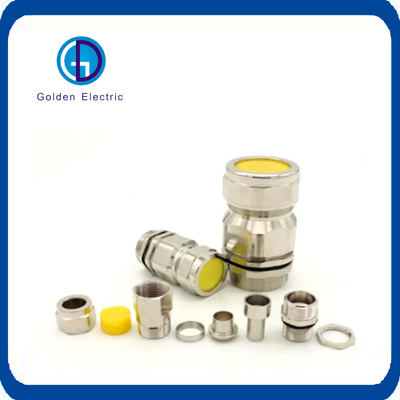

1.  Inlet
2. Sealing ring
3. Taper sleeve
4. middle connecting body
5. Covering ring
6. Lock Jaw
7. Sealing ring
8. Compression nut

EX Standard Cable Gland JX6 Series - Metric, G Thread
Product Code Thread AG Outer Diameter of Cable (mm) Thread length L1(mm) Length L (mm)
Outlet A Incoming Line B
JX-6-EX-15A M16*1.5 - 5-8 7-15 15 67
JX-6-EX-15B M20*1.5 G1/2 5-12 8-15 15 67
JX-6-EX-20 M25*1.5 G3/4 8-17 11-20 15 71
JX-6-EX-27 M32*1.5 G1 11-22 14-27 17 76
JX-6-EX-33 M40*1.5 G1 1/4 14-28 19-33 17 76
JX-6-EX-40 M50*1.5 G1 1/2 16-33 22-40 17 94
JX-6-EX-50 M63*1.5 G2 29-43 29-50 17 98
JX-6-EX-63 M75*1.5 G2 1/2 38-57 35-63 17 112
JX-6-EX-77A M85*1.5 G3S 38-72 41-77 18 114
JX-6-EX-77B M90*1.5 G3 38-72 41-77 18 126
JX-6-EX-83 M100*1.5 G4S 48-83 55-90 18 126
JX-6-EX-94 M110*1.5 G4 48-94 61-104 18 128
Wholesale High Quality IP66 IP68 Explosion-Proof Ex Metal Nickel Plated Brass Cable Gland
Customization is acceptable.Welcome to inquire.

Field of Application

       Cable glands are mechanical cable entry devices. They are used  throughout a number of industries in conjunction with cable and wiring used in  elelctrical instrumentation and automation systems.

       Cable gland may be used on all types of electrical power, control,  instrumentation, data and telecommunications cables. They are used as a  sealing and termination device to ensure that the charachteristcs of the  enclosure which the cable enters can be maintained adequately.
