Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: RP 8K 10K 12K

Nature Of Wave String: Sine Wave Inverter

Type: DC/AC Inverters

Battery Voltage: 48V/96VDC

Gross Weight: 59-72kg

Model: RP 8kw/10kw/12kw

Product Specification: Off-Grid Solar System

AC Input Voltage: 100VAC/110VAC/120VAC/220VAC /230VAC/240VAC

Inverter Type: Transformer Based ,Low Frequency Inverter

Name: Solar Power Inverter

Brand: Golden/OEM

Protection: Overload,Over Voltage,Short Curcuit For Inverter

Frequency: 50/60Hz Auto Sensing

Application: Solar Power System

Dimension: 584mm*425mm*180mm

Transport Package: Standard Packing Carton

Specification: 8KW/10KW/12KW

Trademark: Golden Or Netural, Or Customer Brand

Origin: China

HS Code: 8504403090

Supply Ability: 50000PCS/Years

Nature Of Source Flow: Active Inverter

Certification: CCC, ISO9001, RoHS, CE, SAA

Output Power: >1000W

Grid Type: Off-Grid Inverter

Output Type: Single

Circuit Topologies: Full-Bridge Type

Customization: Available | Customized Request

Highlight:

8000W Pure Sine Inverter

Off Grid Pure Sine Inverter

8000W Power Frequency Inverter

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

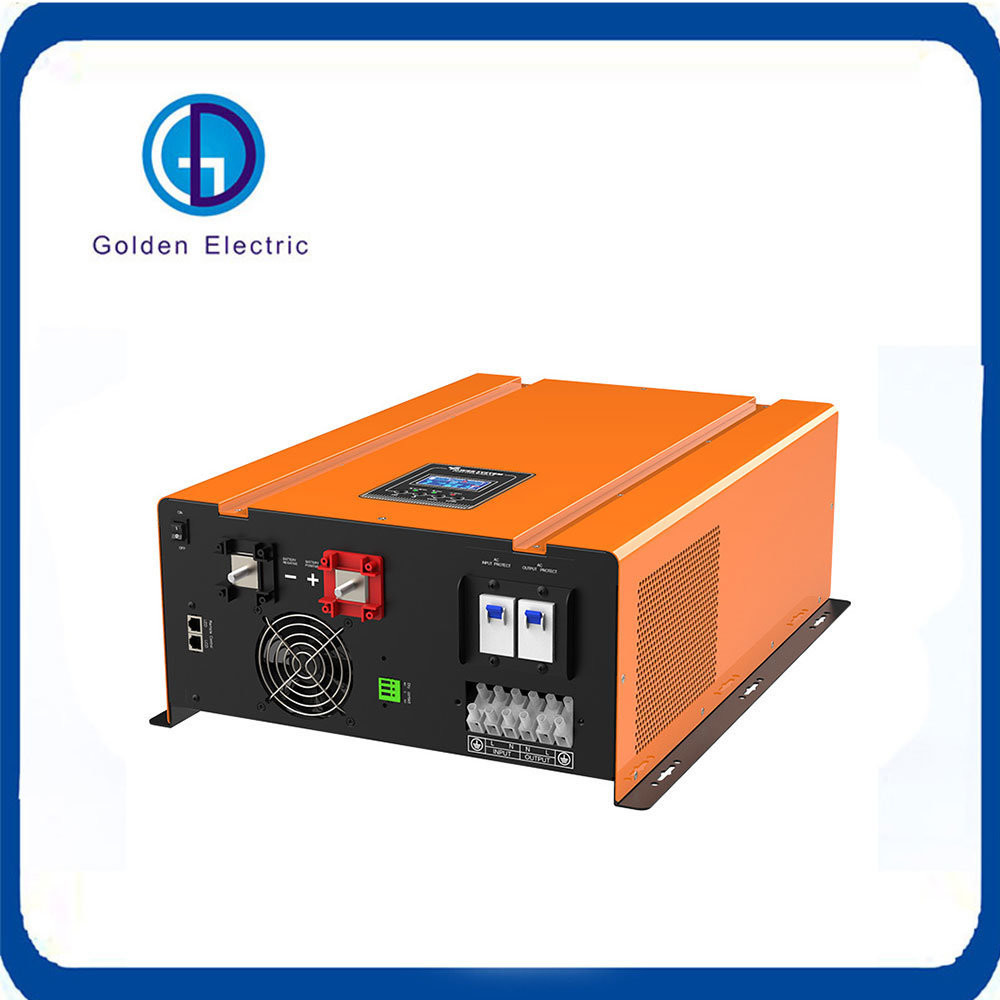

RP Series 8000W Pure Sine Inverter Off Grid Power Frequency Inverter

Product Description

RP series is a pure sine wave power frequency inverter that converts direct current into alternating current. All-digital intelligent design, output pure sine wave, suitable for AC loads such as household appliances, power tools, industrial equipment, electronic audio and video.

1.Pure sine wave inverter

2.Output power factor 1

3.Selectable high power charging current

4.Selectable input voltage range for home appliances and personal computers

5.Configurable AC/battery input priority via LCD setting

6.Compatible with generator power

7.Auto restart while AC is recovering

8.Overload and short circuit protection

9.Smart battery charger design for optimized battery performance

10.Cold start function

11.Color LCD display

12.Supports the use lithium batteries

13.Smart fan running control to extend service life and reduce noise

14.Supports the use lithium batteries

15.Wave by wave phase detection,more stable and reliable

16.RS232 communicate port and remote control panel optional

Protections:

Reverse polarity protection, impact protection, over temperature protection, low voltage protection, overload protection, short circuit protection, over current protection, high voltage protection.

MODEL	RP 8000		RP 10000		RP 12000
Rated Power	8000W		10000W		12000W
INPUT
Voltage	100/110/120VAC;220/230/240VAC
Selectable Voltage Range	Wide Range :75VAC~138VAC;155VAC~275VAC(for home appliances) Narrow Range :82VAC~138VAC ; 165VAC~275VAC (for personal computer)
Frequency	40-70Hz (50Hz/60Hz)
OUTPUT
AC Voltage Regulation (Batt Mode)	220/230/240VAC (±10V)
Surge Power	24KVA		30KVA		36KVA
Efficiency (Peak)	90%
Transfer Time	<20ms
Wave from	Pure sine wave
BATTERY
Battery Voltage	48V	96V	48V	96V	48V	96V
Charge Current.	70A	35A	75A	40A	75A	50A
Fast Charge Voltage	57.2VDC for 48V (*2 for 96V)
Float Charge Voltage	54.8VDC for 48V (*2 for 96V)
Battery Low Voltage Alarm	42.0VDC for 48V (*2 for 96V)
Over Voltage Protect	66.0VDCfor 48V (*2 for 96V)
Battery Low Voltage Shutdown	40.0VDC for 48V (*2 for96V)
Protection	Overcharge,Overtemperature, over battery voltage,over load,short-circuit
Operating Environment Temperature	55ºC
Cooling	Intelligent Fan
Display	LCD
Specification Setting	By LCD or position machine:Charging current,battery type,input voltage,output frequency,wide and narrow of AC input voltage,power-saver model,AC priority or battery priority
PHYSICAL
Dimension,(DWH)mm	584425180
Net Weight (kg)	58.7/59		67/66.5		71.8/72
ENVIROMENT
Humidity	5~95% Relative humidity (No-condensing)
Operating Temperature	-10~50ºC
Storage Temperature	-10~60ºC

LCD Display

Power Inverter RP Series 8000W 10000W 12000W Pure Sine Wave off-Grid Power Frequency Inverter Solar Inverter
Overview

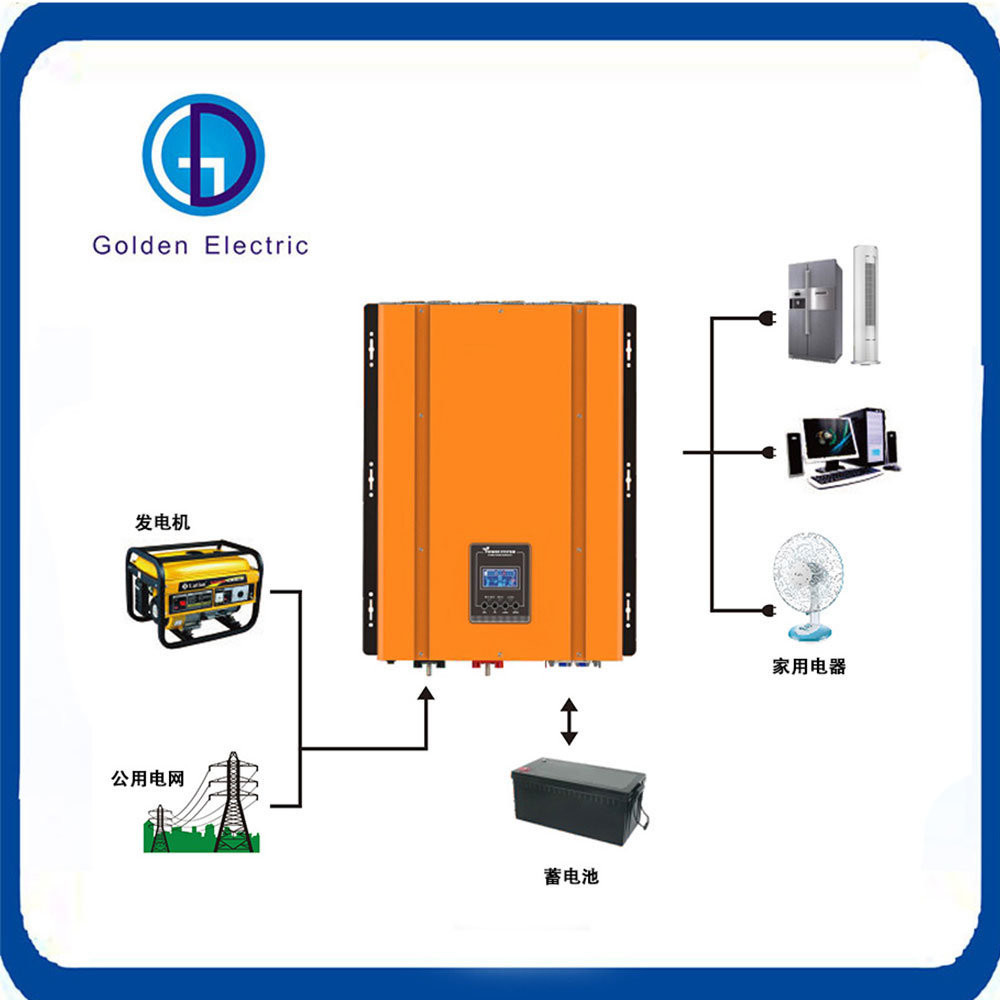

Connection

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,Solar Inverter, MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Wind Turbine, Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

1)Q:How can i trust your company?
    A:Golden electric is The top 10 manufacturer in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for inverter. Normally less than 100PCS with stock, quick support.
6)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
7)   Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
