Features

Specifications

Model NO.: RP Series

Nature Of Wave String: Sine Wave Inverter

Type: DC/AC Inverters

Battery Voltage: 12V/24V/48/96VDC

Gross Weight: 12-72kg

Model: 1K/2K/3K/4K/5K/6K/8K/10K/12K

Product Specification: Off-Grid Solar System

AC Input Voltage: 100VAC/110VAC/120VAC/220VAC /230VAC/240VAC

Inverter Type: Transformer Based ,Low Frequency Inverter

Name: Solar Power Inverter

Brand: Golden/OEM

Protection: Overload,Over Voltage,Short Curcuit For Inverter

Frequency: 50/60Hz Auto Sensing

Application: Solar Power System

Transport Package: Standard Packing Carton

Specification: 4KW/5KW/6KW

Trademark: Golden Or Netural, Or Customer Brand

Origin: China

HS Code: 8504403090

Supply Ability: 50000PCS/Years

Nature Of Source Flow: Active Inverter

Certification: CCC, ISO9001, RoHS, CE, SAA

Output Power: >1000W

Grid Type: Off-Grid Inverter

Output Type: Single

Circuit Topologies: Full-Bridge Type

Customization: Available | Customized Request

Highlight:

DC Sine Wave Inverter

Full Bridge Sine Wave Inverter

Full Bridge 1000 Watt Inverter

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

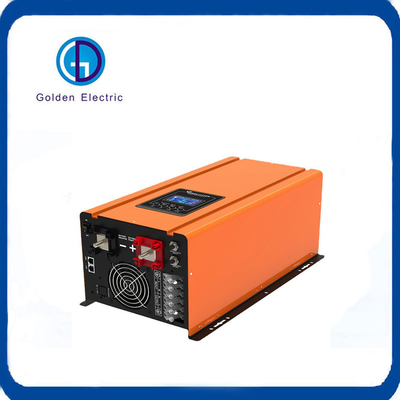

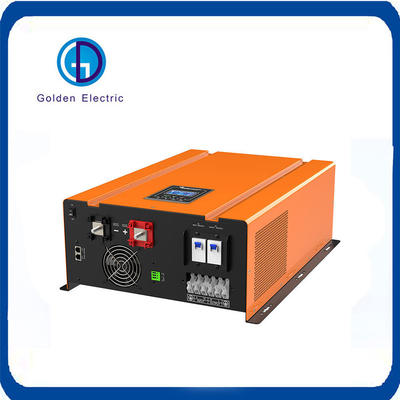

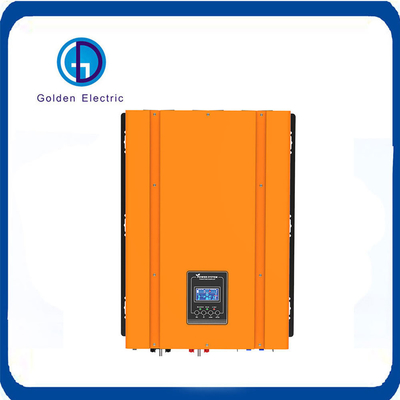

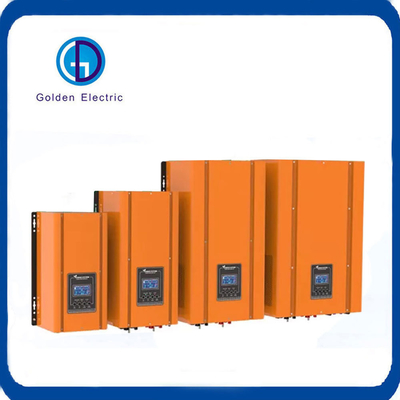

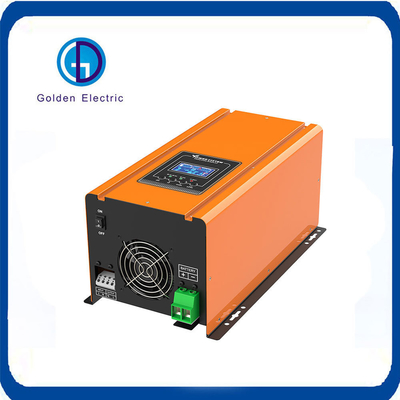

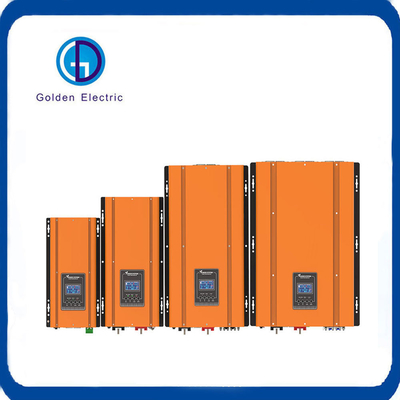

DC Sine Wave Inverter 1kw Full Bridge Easy Operation For Solar Power System

Product Description

RP series is a pure sine wave power frequency inverter that converts direct current into alternating current. All-digital intelligent design, output pure sine wave, suitable for AC loads such as household appliances, power tools, industrial equipment, electronic audio and video.

1.Pure sine wave inverter

2.Output power factor 1

3.Selectable high power charging current

4.Selectable input voltage range for home appliances and personal computers

5.Configurable AC/battery input priority via LCD setting

6.Compatible with generator power

7.Auto restart while AC is recovering

8.Overload and short circuit protection

9.Smart battery charger design for optimized battery performance

10.Cold start function

11.Color LCD display

12.Supports the use lithium batteries

13.Wave by wave phase detection,more stable and reliable

14.RS232 communicate port and Remote control panel optional

Protections:

Reverse polarity protection, impact protection, over temperature protection, low voltage protection, overload protection, short circuit protection, over current protection, high voltage protection.

MODEL	RP 4000		RP 5000		RP6000
Rated Power	4000VA/4000W		5000VA/5000W		6000VA/6000W
INPUT
Voltage	100/110/120VAC;220/230/240VAC
Selectable Voltage Range	Wide Range :75VAC~138VAC;155VAC~275VAC (for home appliances) Narrow Range :82VAC~138VAC ;165VAC~275VAC (for personal computer)
Frequency	40-70Hz (50Hz/60Hz)
OUTPUT
AC Voltage Regulation (Batt Mode)	100/110/120VAC (±5V);220/230/240VAC (±10V)
Surge Power	12000VA		15000VA		18000VA
Efficiency (Peak)	91%
Transfer Time	<10ms
Wave form	Pure sine wave
BATTERY
Battery Voltage	24V	48V	24V	48V	24V	48V
Charge Current	70A	35A	75A	45A	75A	50A
Fast Charge Voltage	28.6VDC	57.2VDC	28.6VDC	57.2VDC	28.6VDC	57.2VDC
Float Charge Voltage	27.4VDC	54.8VDC	27.4VDC	54.8VDC	27.4VDC	54.8VDC
Battery Low Voltage Alarm	33.0VDC	66.0VDC	33.0VDC	66.0VDC	33.0VDC	66.0VDC
Over Voltage Protect	21.0VDC	42.0VDC	21.0VDC	42.0VDC	21.0VDC	42.0VDC
Battery Low Voltage Shutdown	20.0VDC	40.0VDC	20.0VDC	40.0VDC	20.0VDC	40.0VDC
Protection	over charging,over temp,over battery voltage,over load,short-circuit
Operating Environment Temperature	55ºC
Cooling	Intelligent Fan
Display	LCD
Specification Setting	By LCD or position machine:Charging current,battery type,input voltage,output frequency,wide and narrow of AC input voltage,power-saver model,AC priority or battery priority
PHYSICAL
Dimension,(DWH)mm	574345197
Net Weight (kg)	34.4/33.8		37.9/38.2		41.6/40.5
ENVIROMENT
Humidity	5~95% Relative humidity (No-condensing)
Operating Temperature	-10ºC~50ºC
Storage Temperature	-10ºC~60ºC

LCD Display
