Features

Specifications

Type: Ball Type

OEM: Yes

Categories: Lightning Rod

Manufacturer: Yes

Supplier By Country: China

Transport Package: Oceanfreight Cartons+Wooden Cases+Pallet+Container

Specification: Different Sizes And Specifications

Trademark: Golden Electric Or Customize

Origin: China

HS Code: 8535400000

Supply Ability: 5000/Month

Structure: Tube Type Arrester

Installation: Parallel Arrester

Application: Lightning System, Lightning System

Size: Custom Made, Custom Made

Shape: Cross Line

Material: Copper Coated Steel Or Stainless Steel, Copper Coated Steel Or Stainless Steel

Customization: Available | Customized Request

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

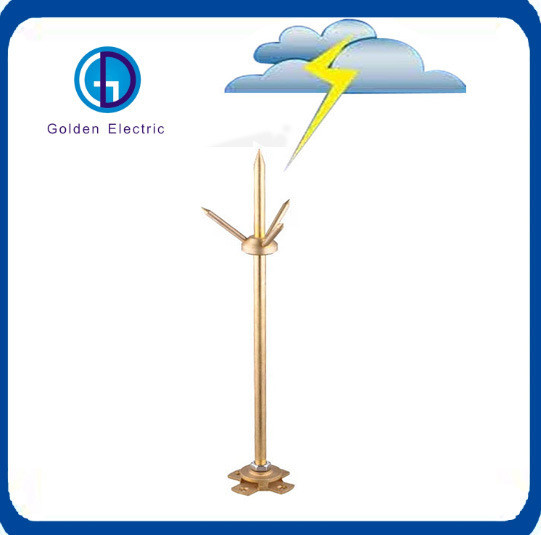

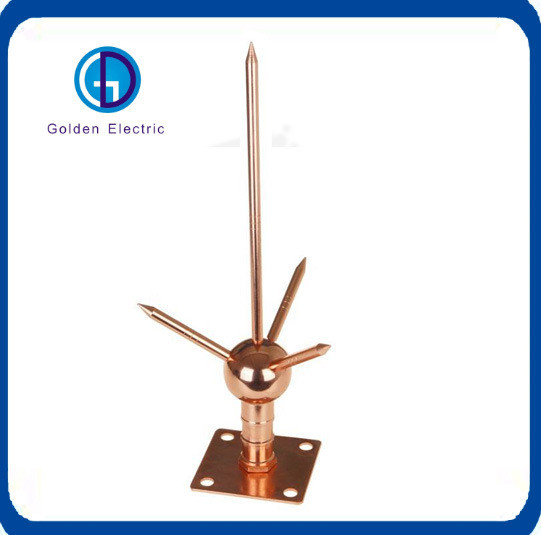

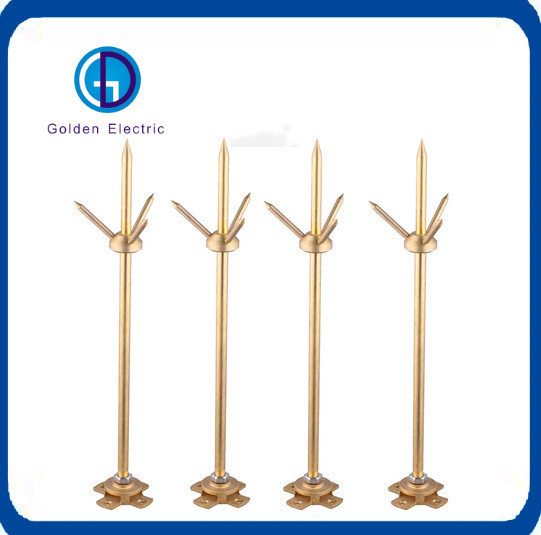

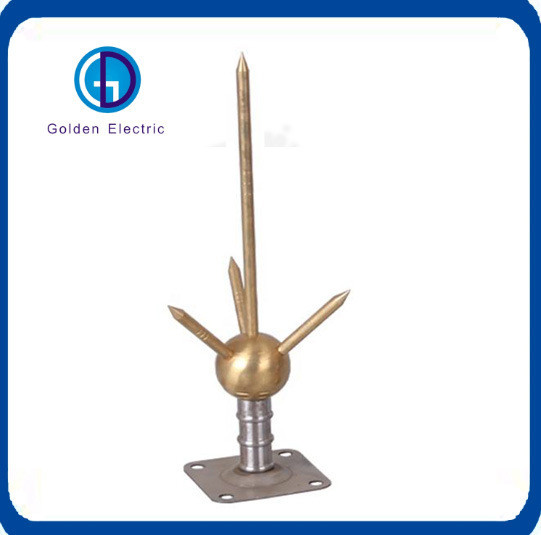

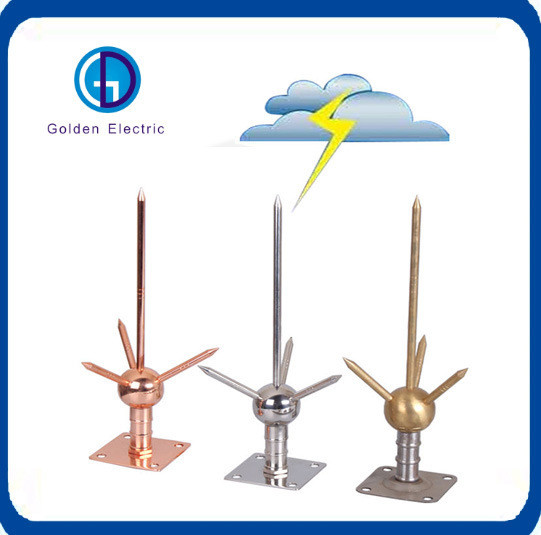

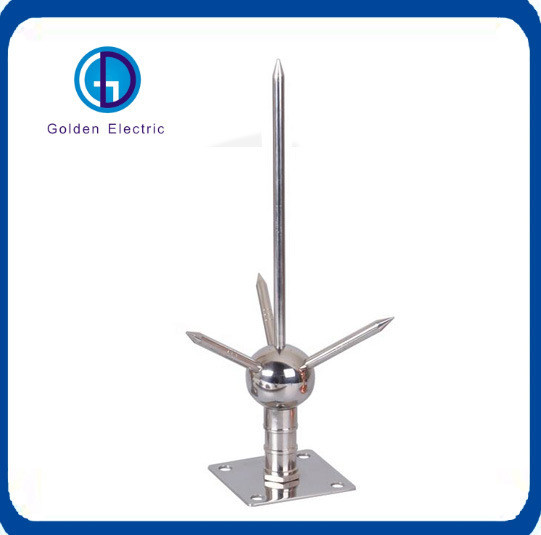

Professional Lightning Protection System with Different Sizes and Specifications

Product Description

Professional Lightning Protection System

Material	Copper or Brass or Copper Clad Steel or Stainless Steel
Service life	More than 50 Years
Characters	Characters
Available service mode	OEM,ODM
Certificate	ISO9001:2015

Negotiable Price According to different material/size and and Purchase quantity

Description	Common Size(We accept customization)
Ball	Dia58mm
Base	100mmx100mmx3mm
Total Height	380mm

Rod Length	Rod diameter	Thread	Material
500mm	16mm	M16	Brass,copper
1000mm	16mm	M16	Brass,copper
1500mm	16mm	M16	Brass,copperl
Avaible Dia:8mm-25mm; Length:300mm-2000mm
Base	Conductor size	Rod diamter	Material
1	50-95mm²wire	16mm	Brass
2	25mmx3mm copper tape	16mm	Brass
Three Point Needle	Nos	Rod	Material
1	3	16mm	Brass,copper

Lightning arrester is used for lightning system of power plant ,transformer station ,tower ,communication station ,airport,railway, subway station , high building ,computer room ,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline ,acid and chemical corrosion medium environmental.

(A)The installation of lightning rod
Matters need attention during installation:
(1)The lightning rod and other metal part on the building should connected together;
(2)No low voltage cable or communication cable installed on the rod
(B)Installation of earthing tape and earthing grid
1. Installation of exposed earthing tape (grid) :Installed at the ridge ,eave(abat-vent) or edge of roof
(1)Installation at the concrete base of roof :The base can be made with the roof together ,and fixed to the roof.
(2) Installation on the parapet wall or gutter bracket
Installed along parapet wall and fixed with bracket ,and the bracket should be installed earlier .The working height of bracket
should be less than 150mm . The bracket for direct line should be first and then for the middle .The bracket should be 0.25-0.5m
away to the turning point if turning needed . The horizontal spacing of bracket is 1-1.5m ,and vertical interval is 1.5-2m and
even distribution
(3) Installation at ridge ,eave or edge of roof
Use concrete base or bracke
If make the base on site , please remove the corner of ridge tile first ,and make the bracket and ridge tile together;
The bracket should be 0.25-0.5m away to the turning point if turning needed . The horizontal spacing of bracket is 1-1.5m ,and
vertical interval is 1.5-2m and even distribution.

Packaging Details Lightning Protection System packing: cartons+wooden cases+pallet+container

Lead time:

Quantity(pieces)	1 - 50	51 - 1000	>1000
Lead time (days)	10	30	To be negotiated

Gty Type Naked Tube Butt Electric Crimp Copper Butt Surface Mounted Waterproof Industrial Connectors and Terminal

Terminal Bolck Steel Mounting DIN Rails Surface Mounted Franch Type 2gang Switch 1gan Socke Switch Socke Waterproof

1.Are you a trading company or manufacturer?
Manufacturer with factory!

2.What kinds of Grounding Material do you produce?
It covers grounding rod ,lightning rod ,connecting fixing ,conductor, exothermic welding kit, etc.

3.Is Customized Material available?
Yes, please offer your required specs.

4.Do you Accept OEM service?
YES!

5.What's your Delivery Time?
Normally 20-25days,please confirm with us before order!

6.What's the Payment Trems?
Usually,50% as deposit,50% before sending B/L by T/T.

7.How you pack products?
Normally, in steel pallet. We'll do according to customers' requirement.
