Features

Specifications

LED Color: Red.Yellow.Green.White.Blue

Color: Black Body

Mounting Hole Size: 22mm Diameter

Transport Package: Ocean Freight Box Packing+Carton+Pallets

Specification: Different Sizes And Specifications

Trademark: Golden Electric Or Customize

Origin: China

HS Code: 8536200000

Supply Ability: 5000/Month

Model Number: La22

Protection Level: IP50

Max. Current: 10A

Max. Voltage: 250V

LED: Yes

Operation Type: Self-Locking,Reset

Customization: Available | Customized Request

Highlight:

22mm Diameter Push Button Switch

Autolock Push Button Switch

Self Locking Type Momentary Push Button

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

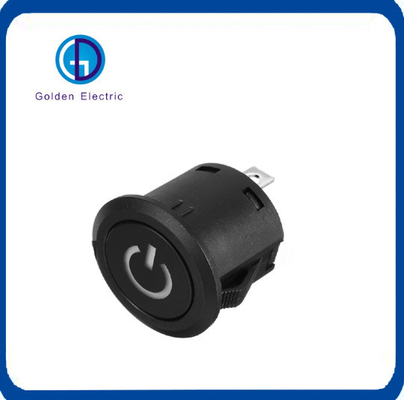

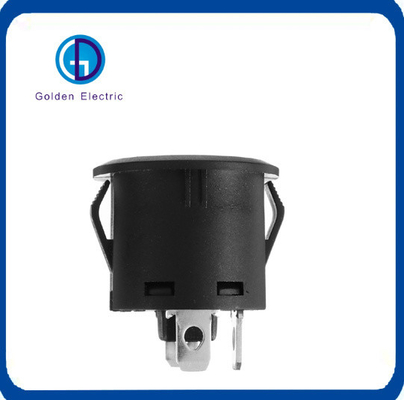

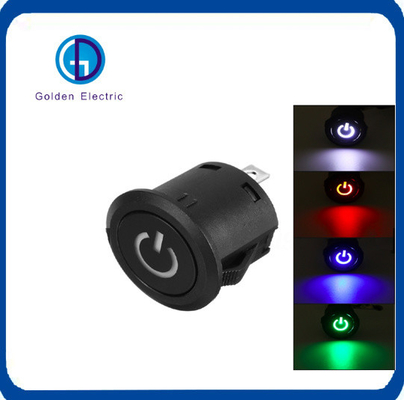

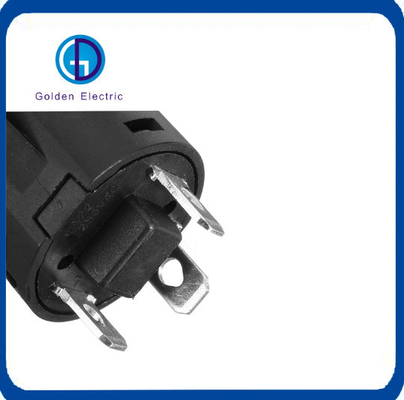

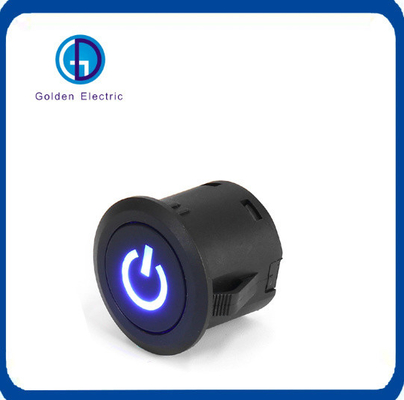

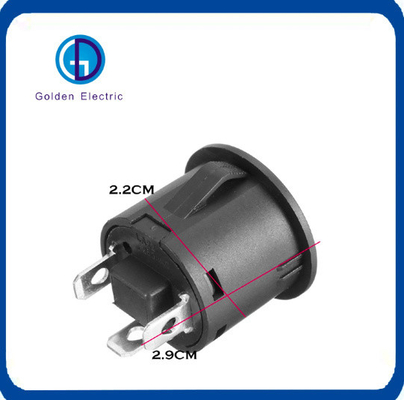

22mm Diameter LED Autolock Power Push Button Switch Self Locking Type

Product Description

GoldenElectricCo., Ltd.
is professional make of Electrical products .Such as distribution box, waterproof plug, socket, wall switch, waterproof plastic ,Aluminum box ,Changeover Switch and disconnecting switch,MC4 Connector.isolator switch.fusebreaker.distribution box,PV combiner box .surge protector, Indicatorlamp,Solar Charge Controller,Industrialplugandsocket,BusbarInsulator,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on. all products comply with IEC, A S/NZS standard. passed CE, IP66, ROHS certificates.at present we have exported to many countries and have serve these customers with professional electrical solution

Technical Parameter
Product Name		Plastic Button Switch
Product Model		LA22-A2
Electric Parameters		10A/250V AC
Operating termperayure range		-20ºC~+70ºC
Protection Level		IP40
Switch Combination		1NO
Opertion Type		Self-Locking /Self Resetting
Lamp bead Lifespan		40000 hours
Indication Light Color		Red/ Yellow / Blue /Green /White
Indication Voltage		6V/12V/24V/110V/220V
Performance
Mechanical Properties	Project	Test Conditions		Specifications
	Operating Stroke	Press down veritcally along the Switch		3±0.2
	Operating Force	Slowly apply loda to the beginning in a vertical direction		6~12N
	Mechanical Life	Under no loda at a speed of 30 times /minute		More than 50000 cycles operation
	Solderability	Soldering termperature 230±5ºC,immersion time 3 soil 0.5s		The tin coating area is more the 90%of the imperenation area
	Heat resistance	Soldering termperature 260±5ºC lmperegnation timer 5±1s		No abnremalities in electrical and mechanical performence
Electrical Performance	Contact resistance	3V DC		≤50MΩ
	Insulator resistance	500V DC lasting for 1minute		≥100MΩ
	Tehcnical requirements
	Project	Test repair parts		Requirement
	Vlotage withstand test	Micro disconnect	2500Vac/50Hz ,lasting of 1 minute	No flashover or breakdown
	Durability testing	Overlodad test	10A/250VAC 6-10Times/minute ,over 10000 times	Orthergasia
Note :Aviod storing in high termpature environments -40~+70ºC

Solar Isolating Disconnector PV DC Isolator Switch Cable Connector for Cable End Termination

Junction Box Level Nut Fast Conector Steel Mandre Micro Motor Double Shafts

Selling Units : Single item

Single package size : 3.5X2.2X2 cm

Single gross weight : 0.015 kg

Lead time:

Quantity(pieces)	1 - 10	11 - 100	101 - 1000	>1000
Lead time (days)	3	7	18	To be negotiated

22mm LED Autolock Power Push Button on-off Switch Latching Self-Locking Button Switch Start Button Switch

Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.

Any more query please contact with us, thank you!
