Name: Earthing and Lightning Electrical Grounding Rod Non Magnetic for Power Station ODM Yes
Brand: Guangzhou Golden Electric Co., Ltd.
SKU: Ss Ground Rod
Price: 749.20 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Stainless Steel

Application: Power Station

Size: Custom Made

OEM: Yes

ODM: Yes

Manufacturer: Yes

Catagories: Steel Round Bar

Size Standard: ISO

Transport Package: Ocean Freight Woven Belt+Iron Pallet+Container

Specification: Different Sizes And Specifications

Trademark: Golden Electric Or Customize

Origin: China

HS Code: 7308900000

Supply Ability: 5000/Month

Type: Stainless Steel Bars, Round

Standard: GB

Certification: ISO

Shape: Round

Technique: Welded

Surface Treatment: Bright

Customization: Available | Customized Request

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Model Number: Ss Ground Rod

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

Earthing and Lightning Electrical Grounding Rod Non Magnetic for Power Station ODM Yes

Product Description

GoldenElectricCo., Ltd.
is professional make of Electrical products .Such as distribution box, waterproof plug, socket, wall switch, waterproof plastic ,Aluminum box ,Changeover Switch and disconnecting switch,MC4 Connector.isolator switch.fusebreaker.distribution box,PV combiner box .surge protector, Indicatorlamp,Solar Charge Controller,Industrialplugandsocket,BusbarInsulator,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on. all products comply with IEC, A S/NZS standard. passed CE, IP66, ROHS certificates.at present we have exported to many countries and have serve these customers with professional electrical solution.

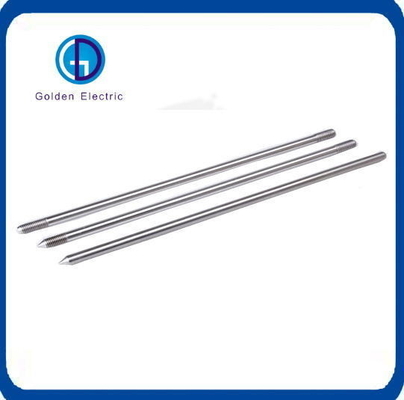

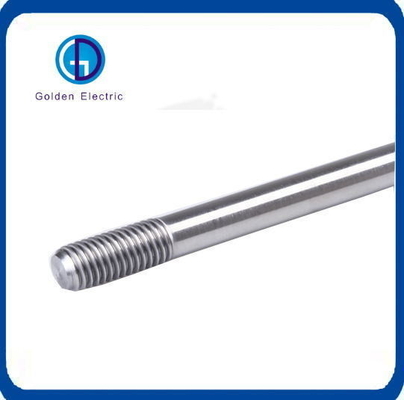

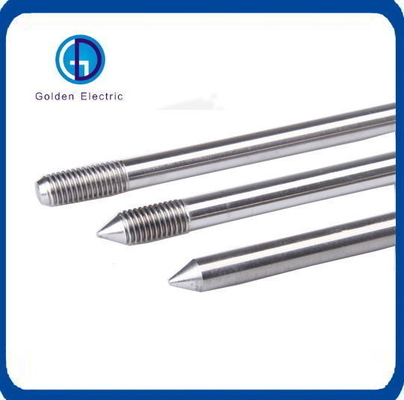

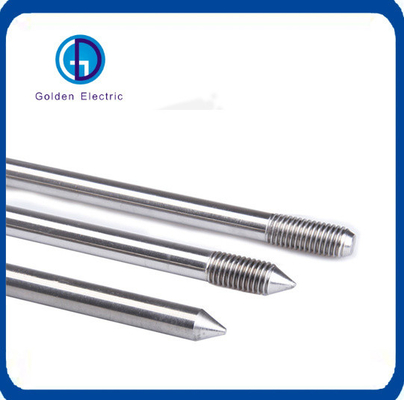

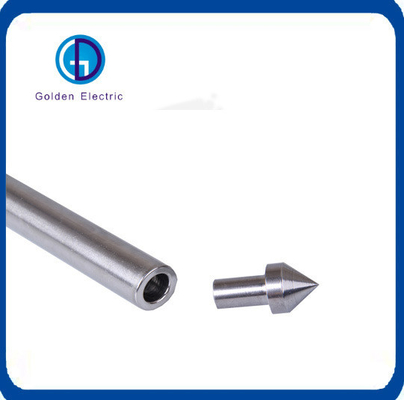

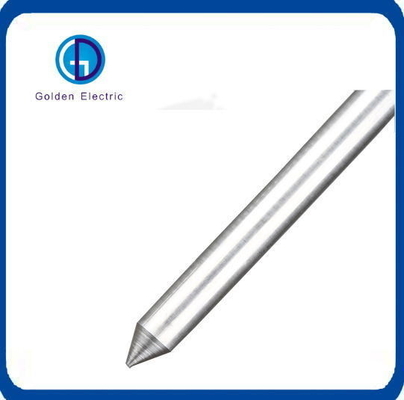

Earthing And Lightning Electrical Grounding Rod Non Magnetic

Material	SS304,SS201,SS316,SS316L
Tensile strength	≥520N/mm²
Straightness error	≤1mm/m
Service life	≥30years
Diameter	according to customer's requirement
Function	Used in grounding and lightning system
Type	Threaded or flat or pointed
Accessories	Coupling,Driving head ,Drill
Available service mode	OEM,ODM
Certificate	ISO9001:2015,CE,SGS
Negotiable Price According to different material/size and and Purchase quantity

304 stainless steel ground rods can be used for the geological conditions are relatively poor power plants, substations, line towers, communication base stations, airports, railways, oil refining plants, oil storage and other places of lightning protection and grounding, anti-static grounding, protective grounding, work grounding and so on.
The model has two bell:
1. single grounding rods; a tip of a flat, laid directly.
2. combined grounding rods; two with thread, by laying the ground rod connector body can determine the length of the ground according to soil conditions and ground resistance requirements of any.

stainless steel ground rods is used for earthing system of power plant, transformer station, tower, communication station,
airport, railway, subway station , high building, computer room, petro plant, oil reservoir in the environmental of moist , saline and alkaline, acid and chemical corrosion medium environmental.

PRODUCT ADVANTAGE

1. good anti-corrosion: 304 stainless steel suitable for acid and alkali environment, with strong corrosion resistance under
normal soil conditions, the service life of up to 30 years;
2. good mechanical properties: 304 stainless steel has excellent tensile properties;
3. adapt to the complex working environment: 304 stainless steel can work in high temperature cold regions, had little impact on
the ground resistance change;
4. easy to install: suitable for mechanical and manual installation and the installation cost is low;

Stainless Steel Ground Rod,Common size(We Can Customize)

Products specifications	Diameter (mm)	Screw type (in ch)	Length (mm)	Weigh(kg)	Packing (pc/bu nd le)
S304-φ12.7*1200	12.7	9/16	1200	1.18	20
S304-φ12.7*1500	12.7	9/16	1500	1.55	20
S304-φ12.7*1800	12.7	9/16	1800	1.76	20
S304-φ14.2*1200	14.2	5/8	1200	1.52	10
S304-φ14.2*1500	14.2	5/8	1500	1.87	10
S304-φ14.2*1800	14.2	5/8	1800	2.29	10
S304-φ16*1200	16	M18	1200	1.89	10
S304-φ16*1500	16	M18	1500	2.37	10
S304-φ16*1800	16	M18	1800	2.84	10
S304-φ17.2*1200	17.2	3/4	1200	2.2	10
S304-φ17.2*1500	17.2	3/4	1500	2.79	7
S304-φ17.2*1800	17.2	3/4	1800	3.28	7
S304-φ18*1200	18	M20	1200	2.4	5
S304-φ18*1500	18	M20	1500	3	5
S304-φ20*1200	20	M22	1200	2.96	7
S304-φ20*1500	20	M22	1500	3.7	7

Driving Head:
Product specfications	Rod diameter (mm)	Screw type (inch)	Material	Weight
8067201	12.7	9/16	steel	0.071
8067203	14.2	5/8	steel	0.08
8067205	16	M18	steel	0.13
8067207	17.2	3/4	steel	0.121
8067209	18	M20	steel	0.127
8067211	20	M22	steel	0.219
Driving head used for ground rod play deep blow. Bailijia driving head used high strength alloy steel, a driving head can berecycled many times.

Drill
Product specfications	Rod diameter (mm)	Screw type (inch)	Material	Weight
8067301	12.7	9/16	steel	0.05
8067303	14.2	5/8	steel	0.059
8067305	16	M18	steel	0.065
8067307	17.2	3/4	steel	0.068
8067309	18	M20	steel	0.075
8067311	20	M22	steel	0.099
Drill used for ground rod bottom drill deep. Bailijia drill used the high strength alloy, inside thread and thread of ground rod stick together, can effectively protect the rod in a deep hurt.

Surge Protective Device for Lightning Protection Electric Insulator Composite Insulator

Single Phase Panel Digital AC Ammter Solar Surge Protector Device

Packaging Details: woven belt+Iron pallet+container

Lead time:

Quantity(pieces)	1 - 1000	>1000
Lead time (days)	15	To be negotiated

Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.

Any more query please contact with us, thank you!
