Product Description

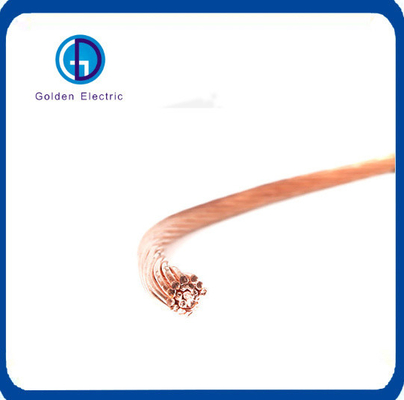

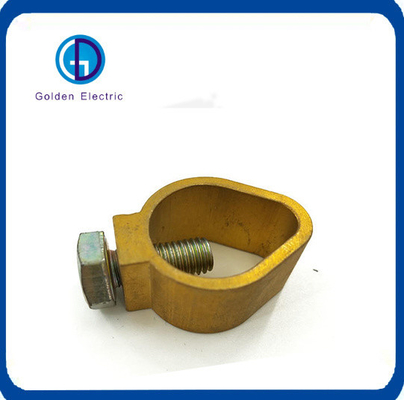

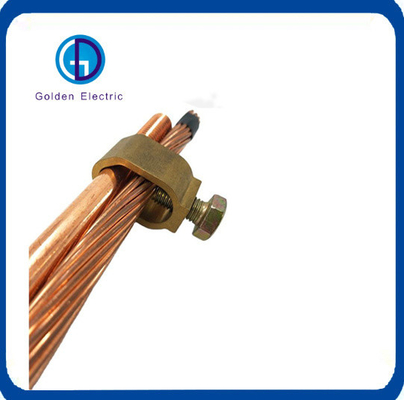

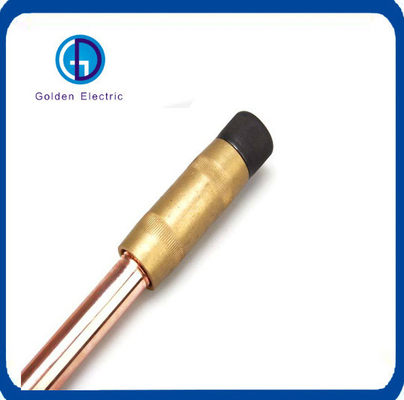

| Item | Grounding Rod With Earth Clamp And Earth Wire |
| Material | Copper Layer & Steel Core |
| Copper Layer Thickness | ≥0.254mm or As Your Request |
| Tensile Strength | ≥580Nm/mm |
| Straightness Error | ≤1mm/m |
| Service Life | ≥50 Years |
| Function | Connect with grounding, disperse the lightning |

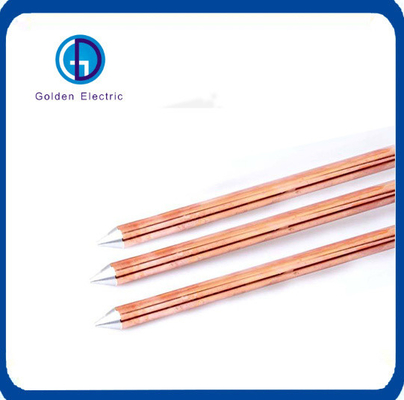

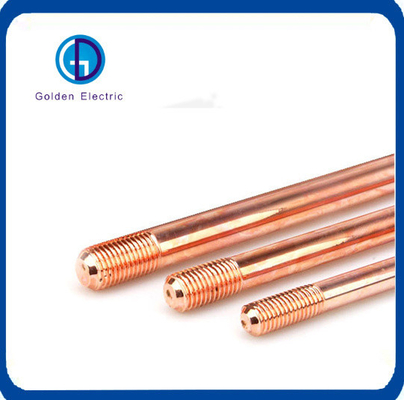

| Type | Threaded or plat or pointed |
| Available service mode | OEM; ODM |
| Certification | ISO9001:2008 |
Products Details
Grounding Rod With Earth Clamp And Earth Wire are widely used in power plants, substation, transmission line tower,communication base stations, airports, railways, all kinds of high-rise buildings, microwave relay station,the networkcomputer room, grounding,oil refinery, oil depots and other places to anti-static grounding,protective grounding, working, etc.
In recent years, accidents caused by grounding device faults increased day by day among enterprises
of petroleum, electricity, communication and so on, so that great importance was attached to reliability,
stability and service life of grounding devices. Therefore, electroforming copper cladding steel gradually
substituted the traditional hot galvanized steel and hot fusion welding by right of its advantages of good
conductivity performance, strong decay resistance, great tensile strength.
| F(mm) | A(mm) | B(mm) | B1(mm) | C(mm) | D(mm) | E(mm) | a° |
| 7 | 1000~3000 | 2±2% | 25±5 | 150±50 | 10~12 | ≤5 | 27.5±2.5 |
| 8 | 1000~3000 | 2±2% | 25±5 | 150±50 | 10~12 | ≤5 | 27.5±2.5 |
| 10 | 1000~3000 | 2±2% | 25±5 | 150±50 | 10~12 | ≤5 | 27.5±2.5 |
| 12 | 1000~3000 | 2±2% | 25±5 | 150±50 | 10~12 | ≤5 | 27.5±2.5 |
| 12.5(1/2") | 1000~3000 | 2±2% | 25±5 | 150±50 | 10~12 | ≤5 | 27.5±2.5 |
| 14 | 1000~3000 | 2±2% | 25±5 | 150±50 | 10~12 | ≤5 | 27.5±2.5 |
| 14.2(5/8") | 1000~3000 | 2±2% | 25±5 | 150±50 | 10~12 | ≤5 | 27.5±2.5 |
| 16 | 1000~3000 | 2±2% | 25±5 | 150±50 | 10~12 | ≤5 | 27.5±2.5 |
| 17.2(3/4") | 1000~3000 | 2±2% | 25±5 | 150±50 | 10~12 | ≤5 | 27.5±2.5 |
| 18 | 1000~3000 | 2±2% | 25±5 | 150±50 | 10~12 | ≤5 | 27.5±2.5 |
| 20 | 1000~3000 | 2±2% | 25±5 | 150±50 | 10~12 | ≤5 | 27.5±2.5 |
| 22 | 1000~3000 | 2±2% | 25±5 | 150±50 | 10~12 | ≤5 | 27.5±2.5 |
| 25 | 1000~3000 | 2±2% | 25±5 | 150±50 | 10~12 | ≤5 | 27.5±2.5 |
1) The purity of the copper which used as cladding is more than 99.95%.
2) The steel core is low carbon steel which the carbon content is about 0.15%.
3) The copper bonded ground rod will be capable of being through 90 at a maximum radius of 100mm
with no copper fracture and with no ill effect on the bond between the steel and the copper cladding.
4) Good in anticorrosion that usage-life is more than 50 years, constant low resistance and good plasticity
which has the characteristics of the pure copper.
5) The ground rod is fully covered with copper cladding without any cracks, holes, cavities etc.
Preventing exposure of the steel core to soil and moisture, so as to form a good corrosion resistance.
