Product Description
| Operating abient temperature |
-20ºC~+55ºC(Noicing) |
| Operating abient humidity |
45~85ºC(No condensation ) |
| Storge ambient temperature |
-45~+80ºC |
| Storage ambient humidity |
Below 95ºCRH |
| Protection Level |
front of the panel :IP65 (IEC 60529)
Terminal :IP20(IEC60529) |
| Insulation Resistance |
100MQ Above (500V DC Megohmmeter) |
| Withstand voltage |
Contact Block:2500VAC 1min Indiactor Light 2000VAC 1min |
| Vibration resistance |
Emergency stop switch
Mistake action :10~500Hz Single -amplitude 0.35mm
Acceleerat ion50m/s2 indicator light pushbutton switch iluminated pushbutton switch,selector switches and key selector switches
Mistake action :5~55Hz Single -amplitude 0.5mm Durability :30Hz Single -
amplitude 1.5mm |
| Impact resistance |
Emergency stop switch
Mistake action :150m/2 Durability :1000m/s2
Indicator Light, pushbutton switches ,selector switches ,key Selector switch
Mistake action :100m/2 Durability :1000m/s2 |
| Mechanical Lifetime |
Emergency Stop switch:250000times (Single -contact only
Push button switch ,iluminated push button switch
Self-replicating type :5million times (Single -contact )
1 million times (Double contact )
Self-locking type :250000 times (Single -contact ) 100000 times (Double contact )
Slelctor switch ,Key selector switch :250000 times (Single contact )
10 Othousand times (Double contact ) |
| Electrical Lifetime |
Emergency stop switch :100000 times (Single contact only )
Pushbutton switches ,selector, key selector switches :
100000 times (Single -contact) 50000 times (Double contact ) |
Products Details

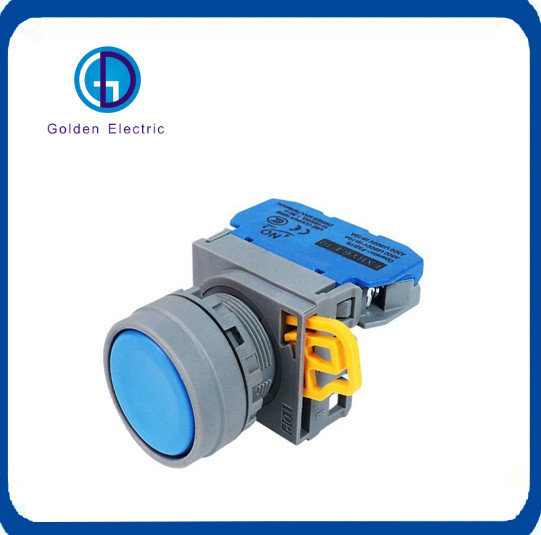

Button working mode for Momentary (Self-reset)
(Explanation: The product in the default normally open contact NO, when press the button, circuit conduction; When you release the hand, the button returns to its original state and the circuit is disconnected.

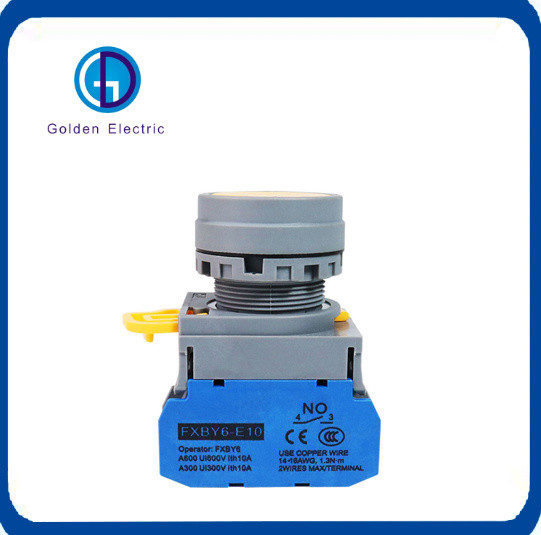

Product default is 1NO normally open contact

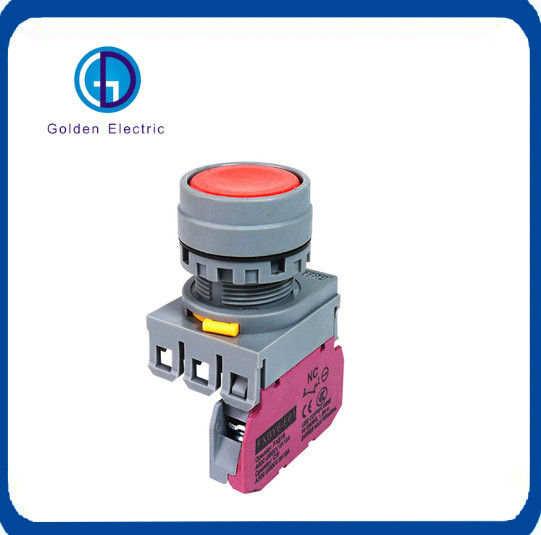

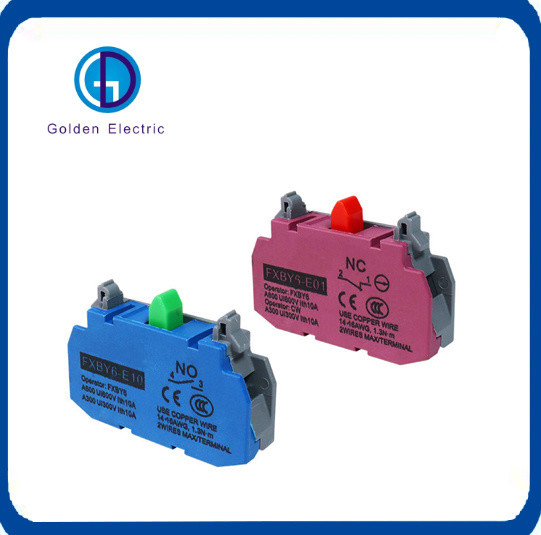

Normally open (NO) or normally closed (NC) contacts can be added.
(NO: Disconnect by default. NC: The default state is on-on.)
| Component |
A(mm) |
B(mm) |
| Emergency stop switch |
Above50 |
Above50 |
Pushbutton Switches
Selector Switches
Key Selector Switch |
Above50 |
Above30 |
| Mushroom head shaped push button switch |
Above50 |
Above40 |
| Indiactor Lamp(one -priece type) |
Above30 |
Above30 |
| Indicator Lamp (one -piece type) |
Above50 |
Above30 |
When using a bulb with a power greater than 1W,a minimum spacing of 50mm
should be maintained |
Products Category
Ad Indiactor Lamp LED Lamp Warning Lamp Single Lamp Power Fitting Copper Termination Lug Hight Conductor
Four Hole Earth Point Ground Plate Multi-Function Wx -700b Automatic Wire Stripper
Packing & Delivery
Selling Units : Single item
Single package size : 10X10X5 cm
Single gross weight : 0:030 kg
Package Type : A box of 10PCS,,individually bagged
Lead time :
| Quantity(pieces) |
1 - 8000 |
>8000 |
| Lead time (days) |
15 |
To be negotiated |
