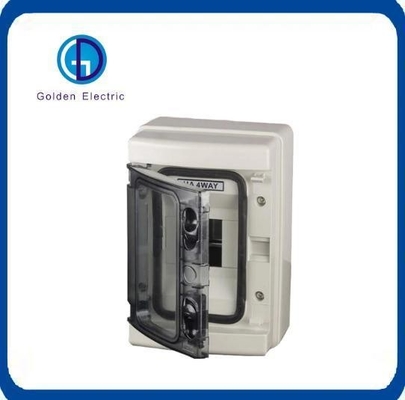

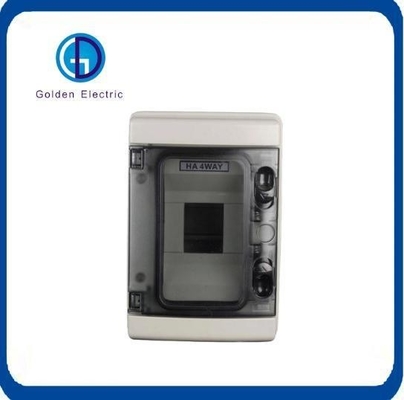

IP65 Waterproof Outdoor Plastic Combiner Box with 1.5mm Thickness and CCC Certification

1
MOQ
IP65 Waterproof Outdoor Plastic Combiner Box with 1.5mm Thickness and CCC Certification
Features Gallery Product Description Request A Quote
Features
Specifications
Shell Protection Grade: IP65
Brand: Golden Electric/OEM
Input Current For Each String: 15A
Output Switch Current: 50A/63A
Surface Finish: Power Painting
Thickness: 1.5mm
Name: Ha Distribution Box
Quality Control: Have Quality Control Person 7
Shell Material.: PC And ABS Fireproof
Transport Package: Standard Carton
Specification: Different Sizes And Specifications
Trademark: Golden Electric Or Customize
Origin: China
HS Code: 8543709990
Supply Ability: 5000/Month
Type: Distribution Metering Box
Structure: Protection
Certification: ISO9001:2000, CCC
Operation Voltage: Low Voltage
Size: 4p/8p/12p/18p/24p
Application Range: Home Use And Outdoor Use
Samples: US$ 1/Piece 1 Piece(Min.Order) | Request Samp
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description
About us:
GUANGZHOU GOLDEN ELECTRIC Co., Ltd. is professional supplier of Electrical products.
We are Specialized in producing and supplying portable distribution box, waterproof plug, socket, circuit breaker,wall switch, waterproof plastic and Aluminum box. all products comply with IEC, A S/NZS standard. passed CE, IP66, ROHS certificates.
Advanced process technologies, standard production processes and precise testing equipment, all ensure the products we supply can satisfy with customers' need. Our Cooperative factory has 15 injection molding machines, 16 CNC and 13 automatic lathes and 12 testing equipment. at present we have exported to many countries and have serve these customers with professional electrical solution.
Golden Electric especially has rich experience with custom-made outdoor and indoor distribution box designing, drawing and assembling. We also have a professional team to serve new and existing customers sincerely.
Welcome to visit our factory.Thanks

Product Description


HA Series lighting box is according to international standard. That is attractive and durable, safe and reliable, which is widely used in various places such as factory, mansion, residence, shopping center and so on.

IP65 Waterproof Outdoor Ha 4-24ways Plastic Combiner Box Junction Box Distribution Box

IP65 Waterproof Outdoor Ha 4-24ways Plastic Combiner Box Junction Box Distribution Box
 PC flame retardantsafe and reliable
Flame retardant pc material high tempetaru
Re resistance and long life

Multiple seals
Safe and waterproof
IP65 safe and waterproof to prevent potential leakage hazards
IP65 Waterproof Outdoor Ha 4-24ways Plastic Combiner Box Junction Box Distribution Box

IP65 Waterproof Outdoor Ha 4-24ways Plastic Combiner Box Junction Box Distribution Box
IP65 Waterproof Outdoor Ha 4-24ways Plastic Combiner Box Junction Box Distribution Box


Technological characteristics

*Features

Panel is the ABS material for the engineering, high strength, never change color, the transparent material is PC. Cover push-type opening and closing
Face covering of the distribution box adopts the push-type opening and closing mode, the face mask can be opened by pressing lightly, the self-locking positioning hinge structure is provided when opening.
Wiring design of the power distribution box

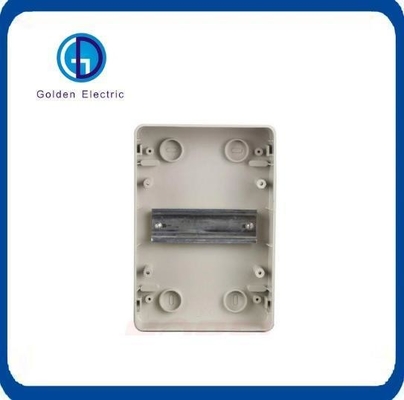

The guide rail support plate can be lifted to the highest movable point, it is no longer limited by the narrow space when installing the wire. To install easily, the switch of the distribution box is set up with the wire groove and wire pipe exit-holes, which are easy to use for a variety of wire grooves and wire pipes.

*Description
Protection degree: IP65
Din rail connection according to EN50022
Rated voltage/rated frequency: 690V/50Hz
Material: Shell-PC, Body-ABS
Tested and approved: IP65
Color: Grey

Model                                         Dimension
L(mm) W(mm) H(mm)
HA-4WAYS 140 140 100
HA-8WAYS 215 210 100
HA-12WAYS 300 260 140
HA-18WAYS 410 285 140
HA-24WAYS 415 300 140

Molde Size Weight/pcs
HT-5WAY 120*160*95 0.34KG
HT-8WAY 200*155*95 0.53KG
HT-12WAY 250*195*110 0.84KG
HT-15WAY 310*195*110 0.9KG
HT-18WAY 365*195*110 1.07KG
HT-24WAY 360*280*110 1.35KG
HA-4WAY 140*210*100 052KG
HA-8WAY 215*210*100 0.78KG
HA-12WAY 300*260*140 1.46KG
HA-18WAY 410*285*140 1.93KG
HA-24WAY 415*300*140 2.34KG



Other Hot-Selling Models

IP65 Waterproof Outdoor Ha 4-24ways Plastic Combiner Box Junction Box Distribution Box
IP65 Waterproof Outdoor Ha 4-24ways Plastic Combiner Box Junction Box Distribution Box
IP65 Waterproof Outdoor Ha 4-24ways Plastic Combiner Box Junction Box Distribution Box
IP65 Waterproof Outdoor Ha 4-24ways Plastic Combiner Box Junction Box Distribution Box
IP65 Waterproof Outdoor Ha 4-24ways Plastic Combiner Box Junction Box Distribution Box
IP65 Waterproof Outdoor Ha 4-24ways Plastic Combiner Box Junction Box Distribution Box



Packaging & Shipping:

*Package:International standard packaging

*Transport method : support multiple modes of such as sea, land and air

1) Are you a factory or trading company?
Yes we are  factories.

2) What is your FOB port?
FOB Guangzhou, and we can according to customer requirements.

3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.

4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many
overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very
easy and effective to reach you. Also our 24 hours online inquiry service is available.

5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.

                                           Any more query please contact with us, thank you!
