Features

Specifications

Model NO.: AVIV-SCC Series

Nature Of Wave String: Sine Wave Inverter

Type: DC/AC Inverters

Rated Voltage: 220/230/240VAC

Power Rating: 800W/1000W/1600W/1800W

Model: Aviv-1011scc/Aviv-1211scc/Aviv-2011scc/Aviv-2211sc

Frequency: 50Hz/60Hz

Operating Temperature: 0 Degree -15 Degree

Brand: Golden Electric /OEM

Output Volatge: 230VAC

Product Name: Off-Grid Solar Power Inverter

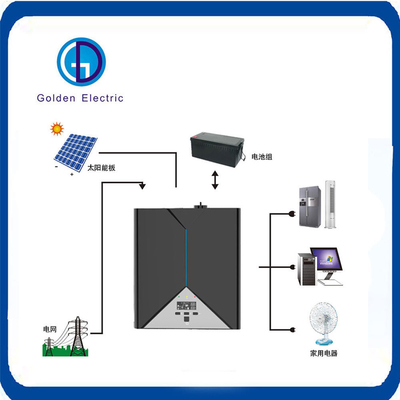

Application: Solar Power System Home

Transport Package: Carton

Specification: 280x250x95mm

Trademark: Golden Or Netural, Or Customer Brand

Origin: China

Supply Ability: 50000PCS/Years

Nature Of Source Flow: Passive Inverter

Certification: CCC, ISO9001, RoHS, CE, SAA

Output Power: >1000W

Grid Type: Off-Grid Inverter

Output Type: Single

Circuit Topologies: Full-Bridge Type

Customization: Available | Customized Request

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

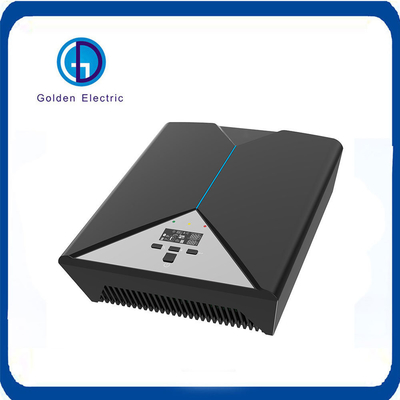

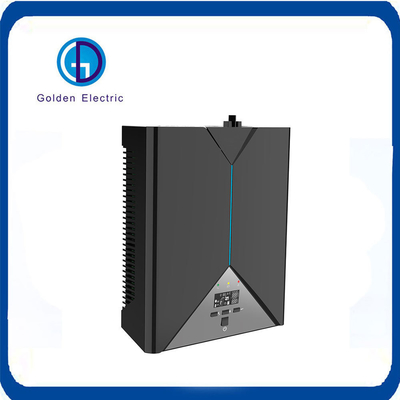

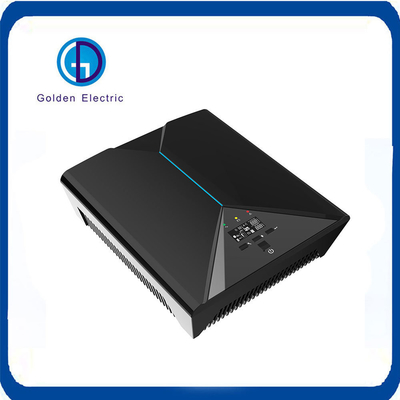

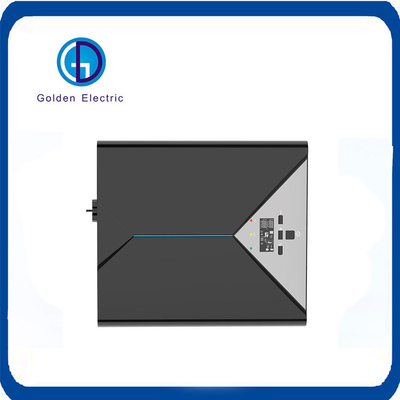

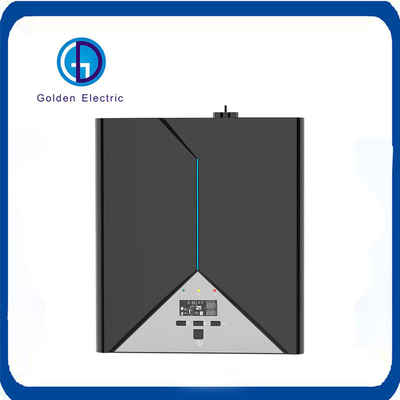

AVIV-SCC Series 800W/1000W/1600W/1800W DC to AC Conversion Modified Sine Wave Inverter

Product Description

Product Description:

AVIV series + SCC solar inverter adopts all-digital intelligent control technology, with short-circuit protection, automatic adjustment of inverter frequency, output overload, battery charging management, monitoring and other functions, using intelligent LCD high-definition display, product operating parameters and operation The status is clear at a glance. This series of products has high stability, high reliability and high practicability, and is an ideal power supply with high cost performance.

Product Features:

1.Built-in enhanced AC charger
2.Built-in solar charger controller
3.Efficient DC-AC conversion
4.Intelligent three-level charger control, effective charging, preventing overcharging
5.Automatic restart after AC restore
6.User friendly LCD and LED indication
7.Multiple protections: low battery alarm, low battery shutdown, overcharge protection, overload protection, overtemperature protection, short circuit protection
8.Fully industrial-grade design, adaptable to a wider working environment
9.Smart LCD Display
10Fast dynamic response
11.Efficient heat dissipation to extend system life
12.With multiple protection functions, 360° all-round protection

Technical Parameter:

Model	AVIV-1011SCC	AVIV-1211SCC	AVIV-2011SCC	AVIV-2211SCC
Rated Power	1000VA/800W	1200VA/1000W	2000VA/1600W	2200VA/1800W
Rated battery voltage	12VDC		24VDC
Input
Rated voltage	220/230/240VAC
Voltage range	170-280VAC(Narrow range);90-280VAC(Wide range)
Normal frequency	50Hz/60Hz
Output
Voltage	230VAC
Frequency	follow the utility
Efficiency	>95%
Time of transmission	>15ms General value,40ms Peak value
Backup mode (output)
Voltage	230VAC(+10%-18%)
Frequency	50Hz/60Hz(automatic detection)
Output waveform	Modify sine waves
Efficiency	>80%
Protection
overload protection	1min@>110%,20s@>120%,0s@>150%
Protect	Discharge, overcharge, overload, overtemperature, short circuit protection
Battery & Charger (AC Power Supply)
Charging algorithm	3 steps to charge
AC charging mode	0A/5A/10A/15A/20A optional
floating charge voltage	13.7V		27.4V
Overcharge voltage	16V		32V
Solar Battery Charger
Peak PV panel array power	900W	1050W	1500W	1750W
Peak PV supports the mode rated power of the load	500W	600W	1000W	1200W
Peak charging current	50Amp	60Amp	50Amp	60Amp
Normal battery voltage	12V		24V
Operating voltage range	16V~18V		32V~36V
Peak PV input voltage	55V
Peak PV input current	65A
Size
Length x width x height	280x250x95mm
Net Weight	2.16Kg	2.46kg	2.38kg	2.38kg
Environment
Work environment	0ºC-15°C,relative humidity 5%-90%(No condensation)
Storage temperature	-15ºC-55ºC,humidity 5%-95%(No condensation)
Noise level	<50dB

Product Show:

You May Like:

FAQ:

1)Q:How can i trust your company?
    A:Golden electric is The top 10 ATS manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the automatic transfer switch(ATS) guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for inverter. Normally less than 100PCS with stock, quick support.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?
Send us your inquiry !we will reply you in 12 hours !
