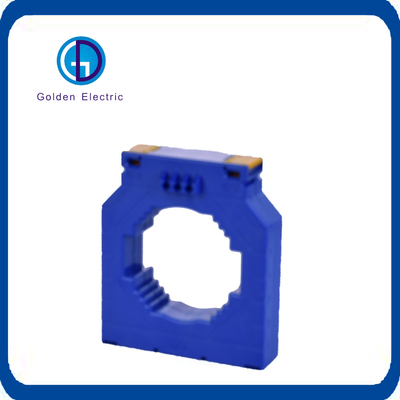

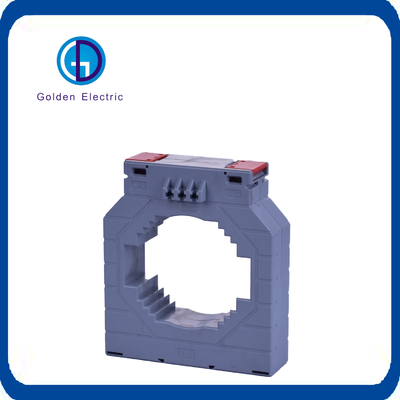

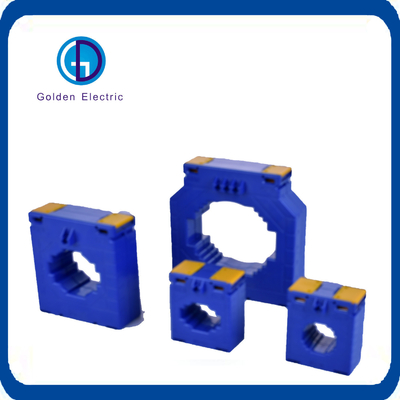

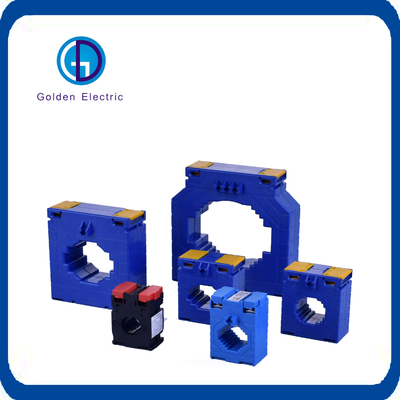

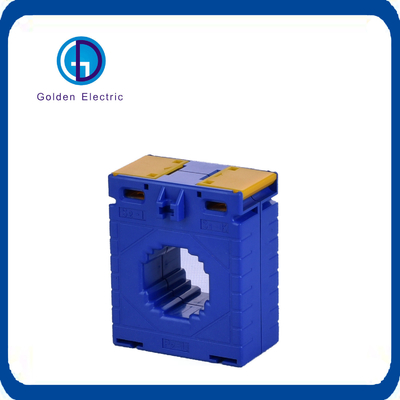

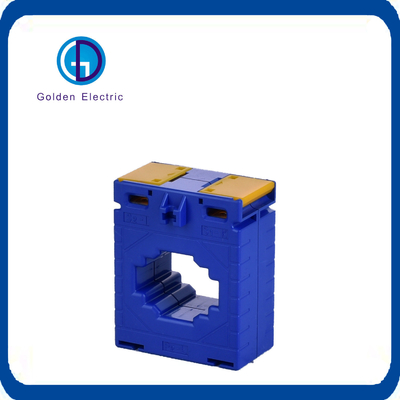

Mes/Cp Series AC Current Transformer/CT with Busbar -30c to 70c High Accuracy Grade 0.5g

Brand Name:	Golden Electric /OEM
MOQ:	1
Payment Terms:	LC, T/T, PayPal, Western Union
Supply Ability:	5000/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document:

Product Brochure PDF

Model NO.:

E-12 SERIES

Insulating Medium:

Common Insulating Materials

Installation:

Busbar Type

Magnetic Circuit Structure:

Cascade Type

Voltage Transformation Principle:

Electromagnetic Type

Output Signal Type:

Digital Output

Operating Temperature:

-30c To 70c

Measuring Range:

0-50A

IP Rating:

IP30

Accuracy Grade:

0.5g

Output Connection:

Terminal

S_Customized:

Yes

Construction:

Screw

Accuracy Class:

0.5 / 1.0

Bobbin:

PBT

Transport Package:

Cartoon

Specification:

According To Customer Demand

Trademark:

Golden Electric

Origin:

China

HS Code:

8504311000

Supply Ability:

50000PCS/Month

Application:

Electronic, Instrument, Position Sensor, Audio, Lighting, Power

Type:

Current Transformer

Phase:

Single

Operation Condition:

Indoor

Usage:

Protection, Measurement

Winding Form:

Multilayer Honeycomb Type

Samples:

US$ 5/Piece 1 Piece(Min.Order) | Request Samp

Customization:

Available | Customized Request

Packaging Details:

Carton/Pallet

Supply Ability:

5000/Month

Product Description

Application:

1.Current measurement
2.Monitoring and protection
3.Energy and sub-metering products
4.Network equipment
5.Instruments and sensors
6.Control systems

Technical parameter
MES/CP SERIES

Type	Picture	Rated current(A)	Rated power(VA)		Rated Voltage(KV)	Rated Frequency(Hz)
Type	Picture	Rated current(A)	Class:0.5	Class:1	Rated Voltage(KV)	Rated Frequency(Hz)
MES-62/30		30/5	1	2.5	720	50/60
		50/5	1	2.5	720	50/60
		60/5	2.5	2.5	720	50/60
		75/5	2.5	5	720	50/60
		100/5	2.5	5	720	50/60
		150/5	5	5	720	50/60
		200/5	5	5	720	50/60
		300/5	5	5	720	50/60
MES-62/40		150/5	2.5	5	720	50/60
		200/5	5	5	720	50/60
		250/5	5	5	720	50/60
		300/5	5	5	720	50/60
		400/5	5	5	720	50/60
		600/5	5	5	720	50/60
MES-30		30/5	1.5	2.5	720	50/60
		50/5	1.5	2.5	720	50/60
		60/5	2.5	5	720	50/60
		75/5	2.5	5	720	50/60
		100/5	2.5	5	720	50/60
		150/5	5	5	720	50/60
		200/5	5	5	720	50/60
		250/5	5	5	720	50/60
		300/5	5	5	720	50/60
MES-40		100/5	1.5	2.5	720	50/60
		150/5	2.5	2.5	720	50/60
		200/5	5	5	720	50/60
		250/5	5	5	720	50/60
		300/5	5	5	720	50/60
		400/5	5	5	720	50/60
		600/5	5	5	720	50/60
MSQ-100		400/5	5	5	720	50/60
		600/5	5	5	720	50/60
		800/5	5	10	720	50/60
		1000/5	5	10	720	50/60
MES-100		800/5	5	10	720	50/60
		1000/5	5	10	720	50/60
		1500/5	10	15	720	50/60
		1600/5	10	15	720	50/60
		2000/5	15	20	720	50/60
		2500/5	20	30	720	50/60
		3000/5	20	30	720	50/60

Qutline Drawing:
